Exotronic Yulara Series Pre-wired Victron Board

5000VA + Mains 220A + Solar 100A + DC-DC 100A + Cerbo GX

RRP $8,999.00
$7,076.55
Save $1,922.45
Sale Ends in
At 23:59 pm, 27 December 2024
In stock at Victron Warehouse Victoria
Please allow 2 business days before dispatch
Normally in stock for immediate dispatch but please contact us for availability.
Exotronic logo

Available Options

You may also need:


Yulara Series Pre-Wired Victron Energy Power Board for Van Conversions

Our most powerful and adventure-ready power board yet.

Inspired by the iconic landscapes of Australia’s Red Centre near Yulara, the Yulara Series Pre-Wired Victron Energy Power Board is crafted for those seeking seamless off-grid power in their van conversions. This meticulously pre-wired solution simplifies your setup process, delivering a high-performance energy system ready for all your mobile power needs. Ideal for both seasoned professionals and passionate DIYers, the Yulara Series makes van conversions faster, easier, and more reliable, bringing you closer to the freedom of off-grid living.

Professional-Grade Power System for All Levels

Designed for ease and versatility, the Yulara Series Power Board offers an all-in-one, pre-wired setup that drastically reduces installation time without compromising quality or functionality. With this powerhouse system, professionals and DIYers alike can skip the complexity and jump right into creating an optimized off-grid setup.

Optimized Mounting & Space Efficiency

This power board's flexible design allows for seamless wall or floor mounting. Place it under your van bed, seat, or any available space, ensuring an efficient layout without sacrificing usability. Ideal for compact van conversions or larger RV builds, this power board is a perfect fit for maximizing limited space.

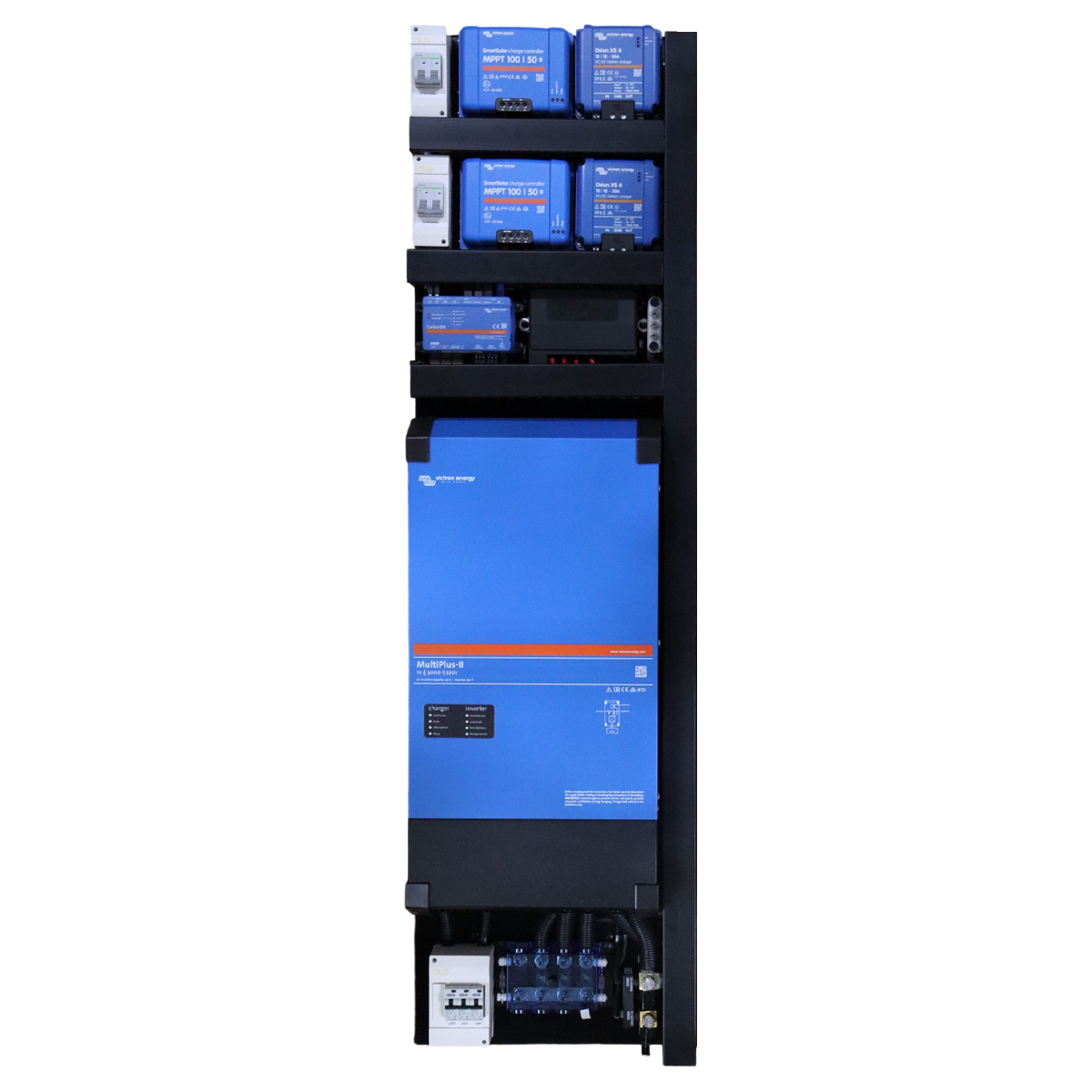

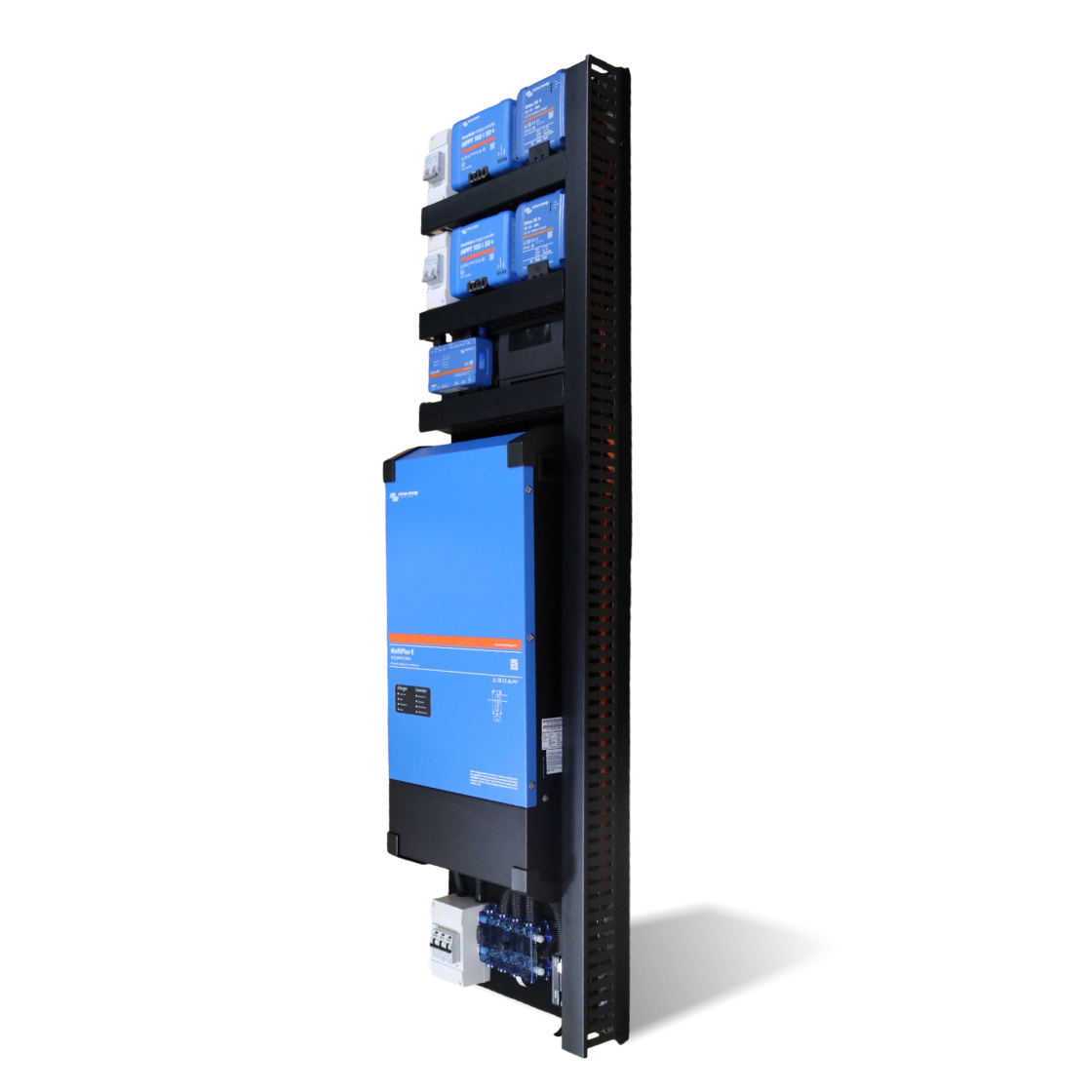

What's Included in the Yulara Power System?

With Victron Energy's leading technology, this pre-wired power board is packed with high-performance components to ensure smooth, uninterrupted power for all your devices and appliances.

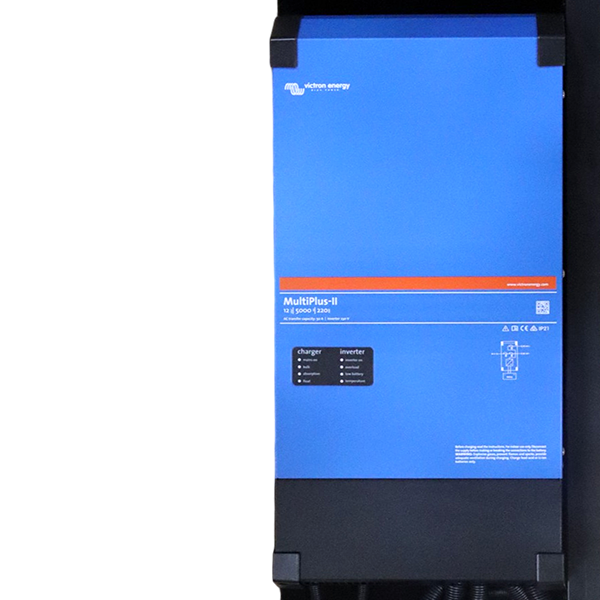

  • Victron 5000VA MultiPlus-II Inverter

    • Powers multiple 10A appliances simultaneously.
    • 220A mains charger for rapid on-grid charging.
    • Built-in automatic transfer switch for seamless transitions between grid and battery.

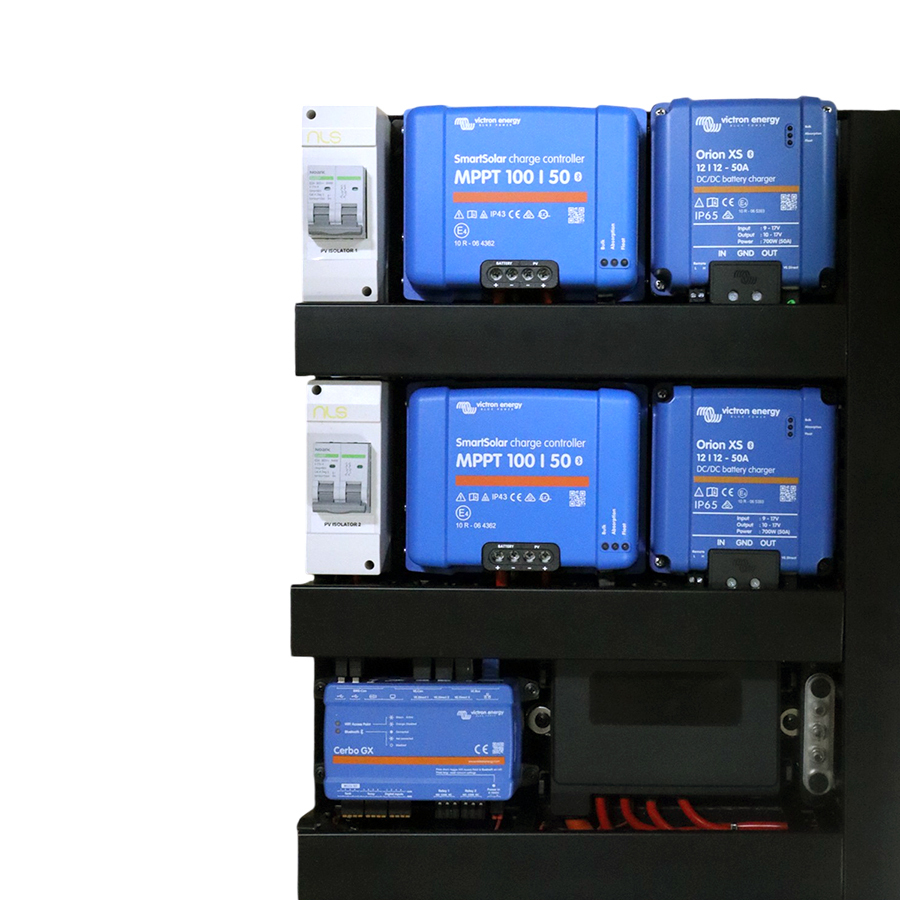

  • Two Victron 50A MPPT SmartSolar Controllers

    • Up to a combined 100A solar charge rate.
    • Easy connection to solar panels using a red Anderson connector.
    • Bluetooth-enabled for real-time solar performance monitoring via the VictronConnect app.
  • Noark PV Isolation Switches

    • Meets latest safety standards to ensure reliable solar connectivity.
  • Two Victron Orion XS 50A DC-DC Chargers

    • Combined 100A charge rate (adjustable to match alternator capacity).
    • Adaptive Three-Step Charging for improved battery life.
    • Intelligent Recovery Function for efficient energy management.
    • Bluetooth monitoring and control for seamless adjustments.
  • Victron 500A SmartShunt Battery Monitor

    • Real-time tracking of battery charge levels, voltage, and energy consumption.
    • Set low-battery alarms to prevent unexpected power loss.
  • Victron Cerbo GX

    • Complete control over current limits, relays, and sensor adjustments.
    • Compatible with Ruuvi temperature sensors and Mopeka water and LPG tank monitors (sold separately).
  • Fuse Block with Spare Slots

    • Includes extra Midi and MEGA fuse slots for future expansion.
    • Negative busbar for easy expansion connections.

Expertly Pre-Wired for Instant Installation

No need to wrestle with complex wiring! Each Yulara power board is meticulously pre-wired, reducing installation time and providing clear, detailed diagrams to make setup a breeze. Get powered up and on the road faster, with a system built to the highest standards for reliability and safety.

Shipping & Handling

Available for Australia-wide shipping, the Yulara Series Power Board arrives securely packaged on a pallet. Please ensure delivery is to a business address or depot for convenient unloading. For home deliveries, someone will need to assist the driver.

Why Choose the Yulara Series Pre-Wired Victron Energy Power Board?

Designed for van owners who demand reliability and top-notch performance, this system arrives ready to power all your off-grid needs from day one. Every component is selected and configured to guarantee a dependable power source for van conversions, caravans, RVs, off-grid living, marine use, and more.


Key Applications:

  • Van Conversions
  • Caravans and RVs
  • Off-Grid Setups
  • Marine Applications
  • Tiny Homes

Take Your Van Adventures to the Next Level

Upgrade your van today with the Yulara Series Pre-Wired Victron Energy Power Board. Enjoy dependable, hassle-free power and embrace life on the road with confidence. Ready for your next adventure? Order now and experience peak performance with the Yulara Series!

(PWB-Vic-F100-YU)

Weight: 48kg

Dimensions: 1400 x 400 x 170mm

See PDF Data Sheet for full details

SKU PWB-Vic-F100-YU

Victron Energy Limited Warranty Policy


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.


During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.


This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.


Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.


Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.


Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.


As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.


Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.


Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.


Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.


For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
