Wakespeed WS500 P-type wiring harness with CAN bus in harness - extra length tails
For use with: Wakespeed WS500 Advanced Alternator Regulator
Included:

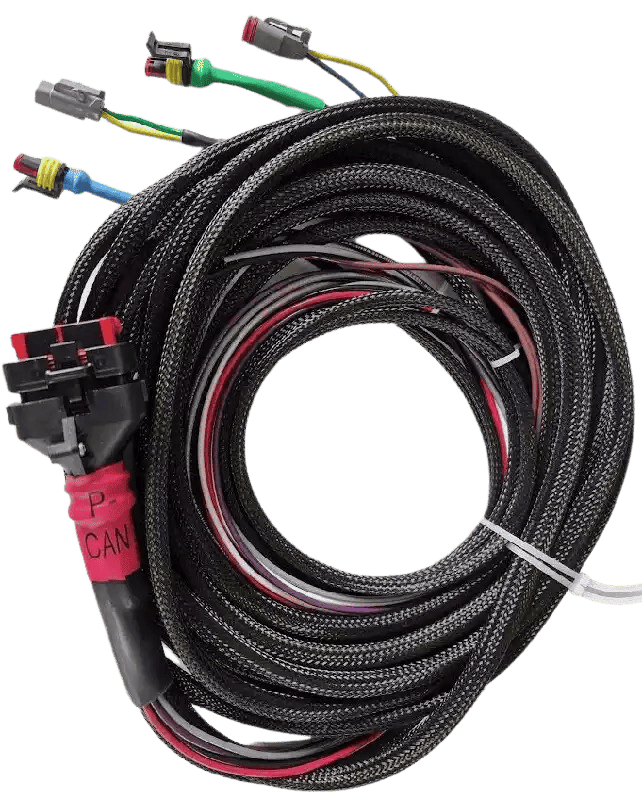

- WS500 P-type wiring harness for large RVs and boats: (see note 1 below) with branch lengths:
- CAN bus: 1.5m
- Battery temperature sensor: 1.5m (battery temperature sensor is a separate purchase as it is only needed for some systems)
- Field/Stator/Alternator temperature wires: 8m
- Ignition wire: 6m

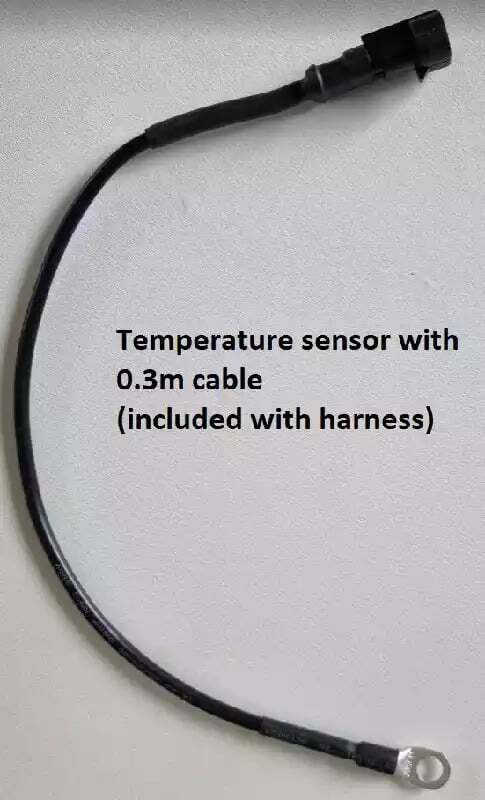

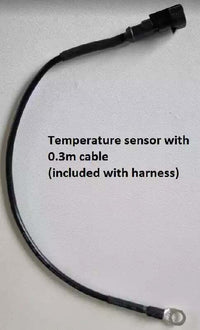

- Alternator Temperature Sensor (see note 2 below)
Notes:

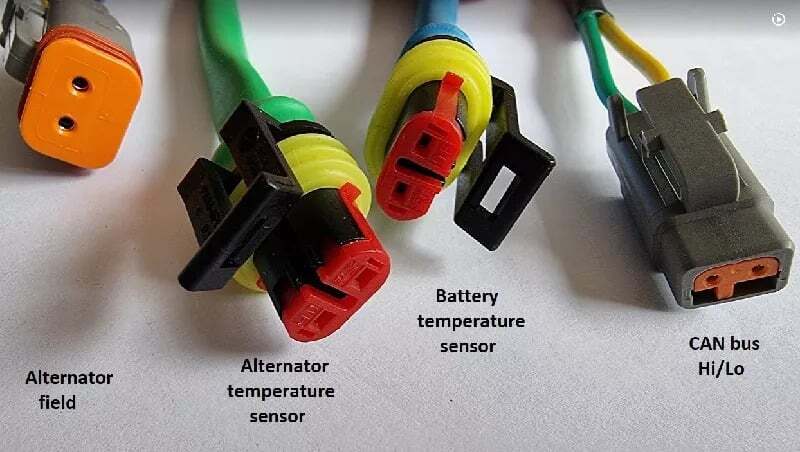

- CAN Bus wires terminated with Deutsch DTM06-2S connector (we sell mating connector kits here: to be added )
- Alternator temperature sensor tail is terminated with a TE Connectivity, AMP Superseal 1.5 series, socket 2 Way, part number: 282080-1. The mating connector needs to be purchased separately; it is a kit with TE Connectivty part numbers:
- Housing - male : 282104-1 (to try and avoid confusion, the housing is female, but the pins are male which defines the gender of the connector)
- Male Crimp pins 15AWG, part number: 282109-1 (2-pins required)
- Superseal wire seal, part number: 281934-3 (2-seals required)
A kit of all the parts listed above (including an additional 2-spare pins) is available here: (to be added)
An insulation boot is also available with TE Connectivity part number: 880810-1 (to be added)
Note: page being updated.
Previous Wakespeed SKU: WS500-PH-CAN-VAN
Dragonfly Energy SKU: WSPHVAN.3THERM
(WS-WS500-PH-CAN-VAN)
