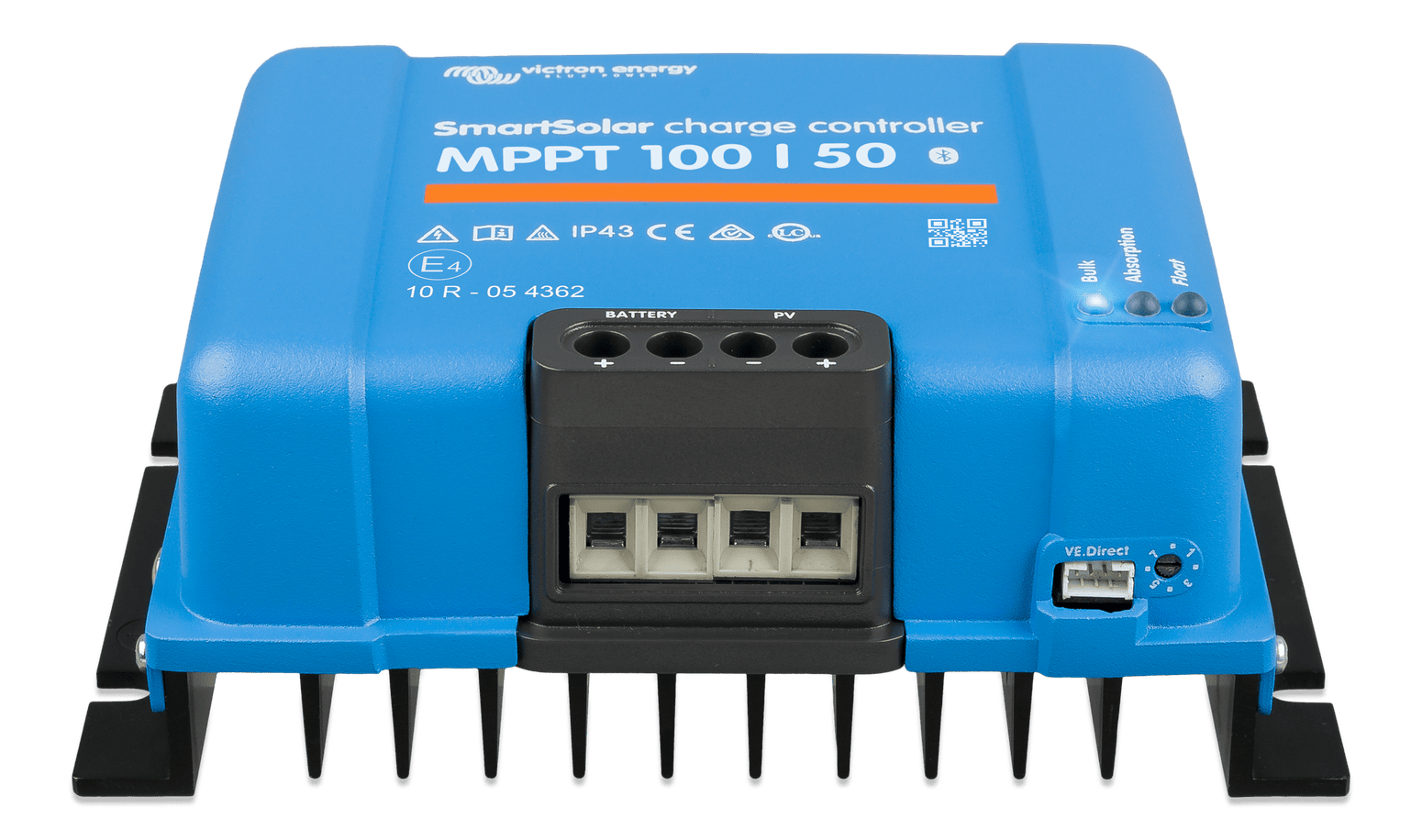

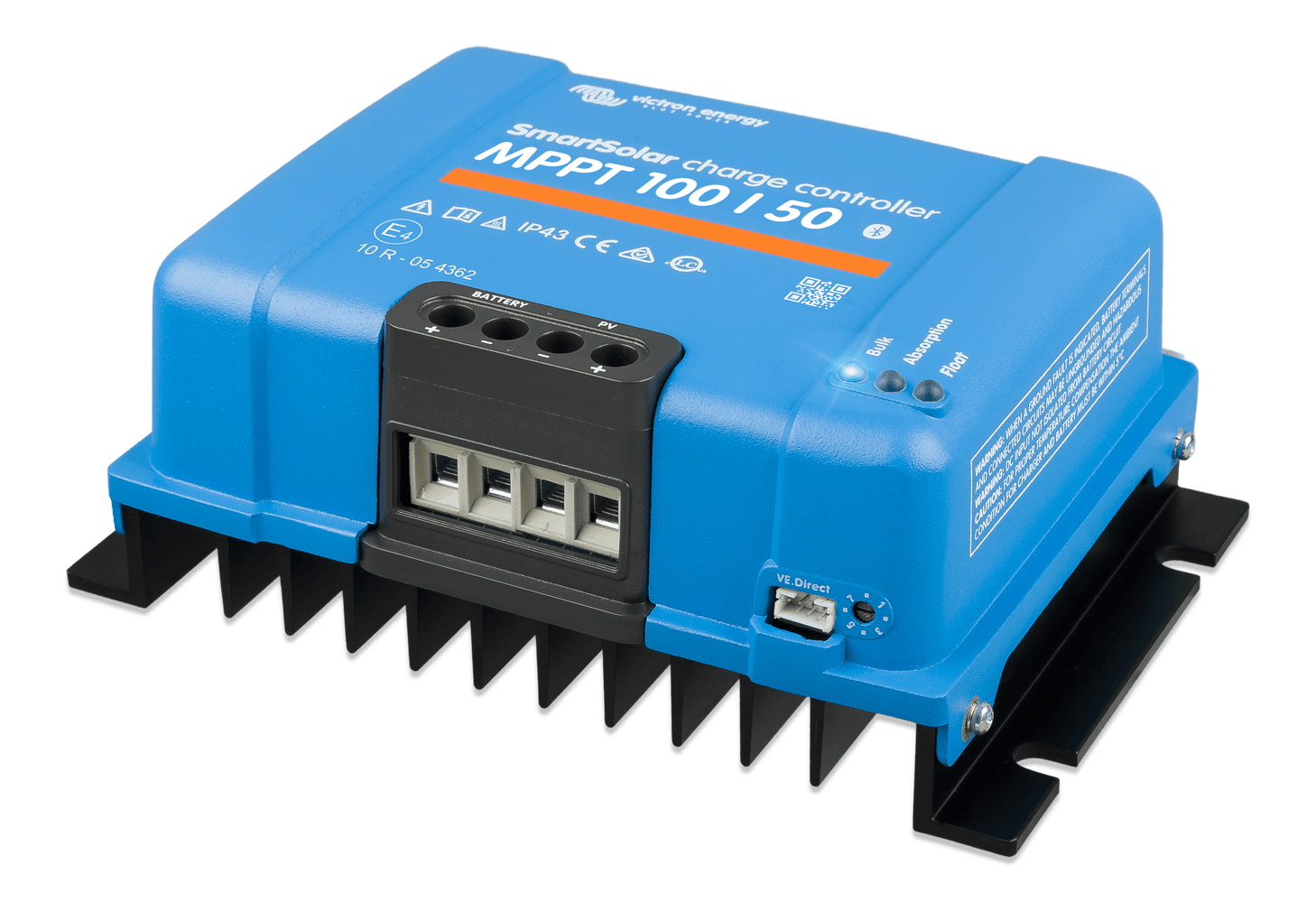

Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
Experience unparalleled efficiency and performance with the Victron Energy 50A MPPT Solar Charge Controller, a cutting-edge solution in solar energy management from a renowned global leader. This device is designed to optimize your solar energy system's performance, making it an indispensable tool for anyone looking to enhance their renewable energy setup.

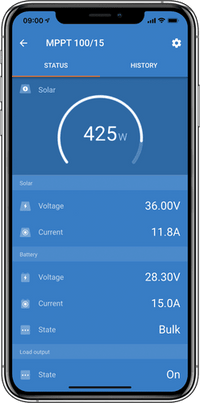

Integrated Bluetooth Smart Technology
Enjoy the convenience of wireless system management with the built-in Bluetooth Smart feature. This enables effortless device setup, monitoring, updates, and synchronization directly from your smartphone, enriching your solar energy management experience with ease and efficiency.
VE.Direct Wired Data Connection
Ensure robust data connectivity with VE.Direct, facilitating a wired connection to Cerbo GX and other GX products, and personal computers. This feature enhances system integration and performance, making your solar energy system more cohesive and efficient.
Ultra-fast MPPT for Maximum Energy Harvest
With Victron Energy's ultra-fast Maximum Power Point Tracking (MPPT) technology, you can boost your energy harvest by up to 30% over traditional PWM controllers and by up to 10% over slower MPPT controllers. This technology is especially beneficial under varying light conditions, ensuring optimal energy capture even on cloudy days.
Innovative Maximum Power Point Detection
The innovative BlueSolar algorithm excels in scenarios with partial shading, securing the maximum energy harvest by locking onto the optimal MPP. This advanced approach prevents the system from settling on a less efficient MPP, which can occur with conventional MPPT technologies.
Exceptional Conversion Efficiency
Achieve superior conversion efficiency with a maximum rate exceeding 98%, coupled with full output current capability up to 40°C (104°F). This fanless Solar Charge Controller not only simplifies your system design but also ensures top-notch efficiency without the need for additional cooling.
Versatile Charge Algorithm
Tailor your charging process with a fully programmable charge algorithm and eight pre-programmed algorithms, easily selectable via a rotary switch. This versatility allows for a customized and efficient solar charging experience, tailored to your specific needs and battery type.
Robust Electronic Protection
The Victron Solar Charge Controller is equipped with comprehensive protective features, including over-temperature protection, power derating at high temperatures, and multiple circuit protection measures. These safeguards ensure your solar energy system's longevity and reliability.
Accurate Internal Temperature Sensor
Benefit from precise charging adjustments with the built-in internal temperature sensor, which compensates absorption and float charge voltages based on temperature variations. This ensures your batteries are charged efficiently and accurately, optimizing performance and lifespan.
Bluetooth-enabled External Battery Voltage and Temperature Sensing
Expand your control and monitoring capabilities with optional Smart Battery Sense or a BMV-712 Smart Battery Monitor. These accessories provide real-time battery voltage and temperature data to your SmartSolar Charge Controllers, enhancing system management and performance.
Advanced Charging Features of Victron Energy's MPPT Solar Charge Controller
Victron's sophisticated 3-stage charging process includes Bulk, Absorption, and Float stages, ensuring your batteries are charged efficiently and safely. The adaptive charging algorithm adjusts the Absorption stage duration based on the battery's discharge level, while the absence of a storage stage means charging stops at night, conserving energy and protecting your batteries.

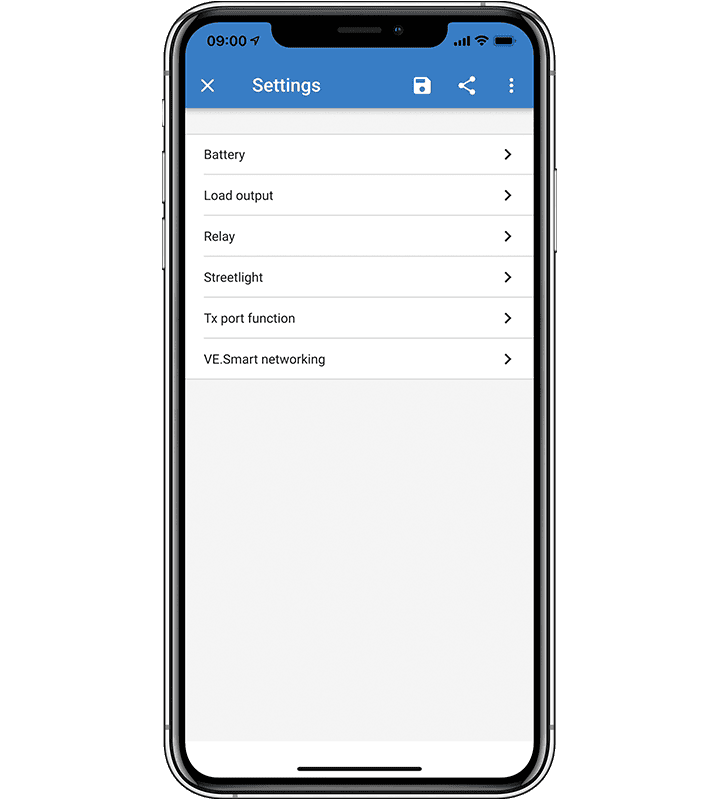

The VictronConnect App offers further customization with eight pre-set charge algorithms or a fully programmable charge algorithm, allowing for precise control over charge voltages, stage duration, and current. Additionally, for certain lead-acid batteries, an equalization charge can be activated to balance cell voltages, further enhancing battery health and longevity.
Elevate your solar energy system with the Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller for a future-proof, efficient, and user-friendly solar charging experience.
Visit Victron's Official Website page on the SmartSolar 100/50
(SCC110050210)
Specifications
SmartSolar Charge Controller | MPPT 100/50 |
---|---|
Battery voltage | 12/24 V Auto Select |
Rated charge current | 50 A |
Nominal PV power, 12 V (1a,b) | 700 W |
Nominal PV power, 24 V (1a,b) | 1400 W |
Maximum PV open circuit voltage | 100 V |
Max. PV short circuit current (2) | 60 A |
Maximum efficiency | 98 % |
Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
Charge algorithm | multi-stage adaptive |
Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
Protection | PV reverse polarity, Output short circuit, Over temperature |
Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
Humidity | 95 %, non-condensing |
Data communication port | VE.Direct |
Enclosure Colour | Blue (RAL 5012) |
Power terminals | 16 mm² / AWG6 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 1,3 kg |
Dimensions (h x w x d) | 130 x 186 x 70 mm |
Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |

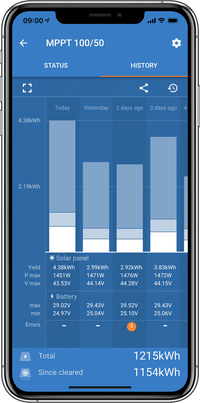

Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
SKU | VIC-SCC110050210 |
Barcode # | 8719076040194 |
MPN # | SCC110050210 |
