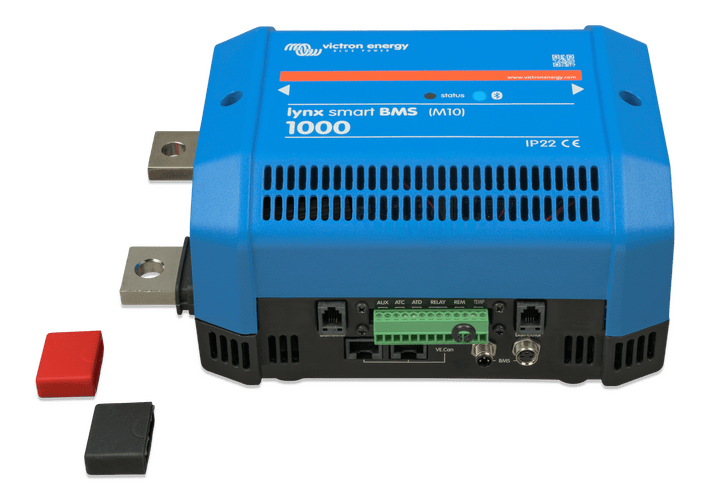

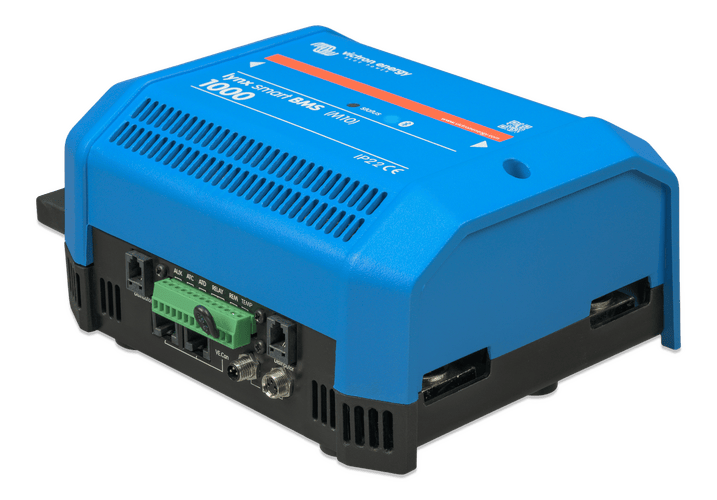

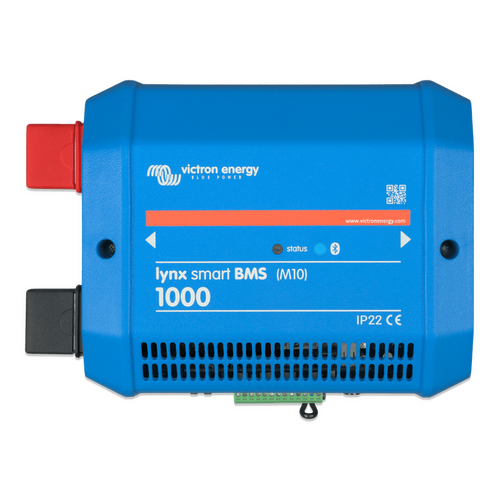

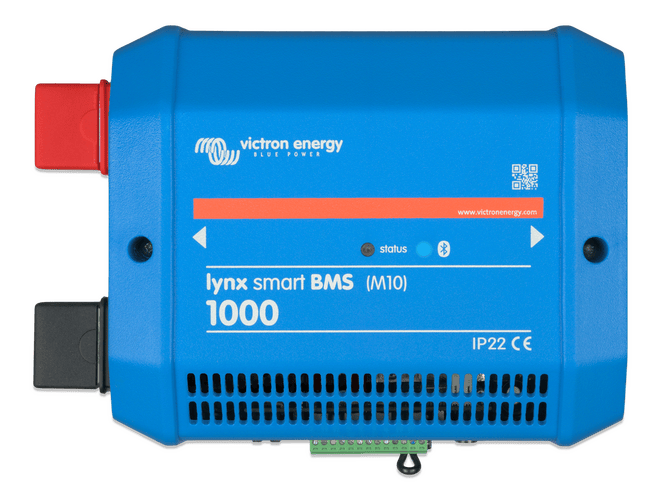

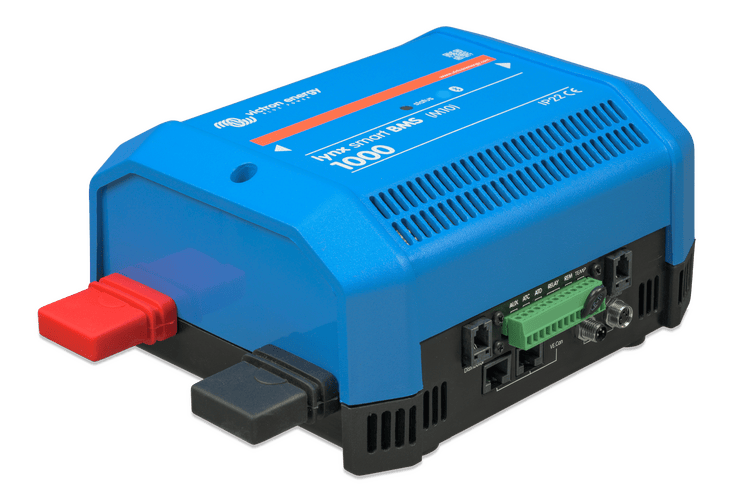

Victron Lynx Smart BMS 1000 NG (NextGen) M10
Optimize Your Energy Storage with Victron Lynx Smart BMS 1000 NG (NextGen) M10 for Victron Lithium Batteries
Take control of your energy storage with the Victron Lynx Smart BMS 1000 NG (NextGen), designed to work seamlessly with Victron Lithium Battery Smart series. This advanced Battery Management System (BMS) offers a reliable and feature-rich solution for maximizing the performance, safety, and longevity of your Lithium Iron Phosphate (LiFePO4) battery systems in a wide range of applications.
High-Capacity Battery Management for Versatile Energy Systems
The Victron Lynx Smart BMS 1000 NG allows you to configure your lithium batteries in series, parallel, or series/parallel combinations, perfect for building robust 12V, 24V, or 48V battery banks. Whether you’re looking to power a caravan, RV, marine vessel, off-grid home, or industrial system, the Lynx Smart BMS provides the flexibility to meet any energy need.
- Scalable Energy Storage: Build a battery bank with up to 20 batteries, reaching energy capacities of up to 192 kWh for 12V systems and 384 kWh for 24V and 48V systems.
- Series and Parallel Configuration: Create versatile systems designed for long-lasting energy supply and minimal balancing time for optimal performance.
Industry-Leading Features and Safety
The Victron Lynx Smart BMS 1000 NG integrates advanced safety measures, ensuring your energy system remains protected in any scenario. With built-in monitoring and intelligent controls, this BMS offers a full range of essential features:
- Built-in Contactor: Acts as a secondary safety mechanism while providing remote-control capabilities for switching your system on and off.
- Pre-Charge Circuit: Prevents harmful inrush currents, eliminating the need for external pre-charging components.
- Bluetooth Monitoring: Real-time data on battery voltage, charge state, and system health via the VictronConnect App or GX devices like the Cerbo GX.
Intelligent System Integration and Control

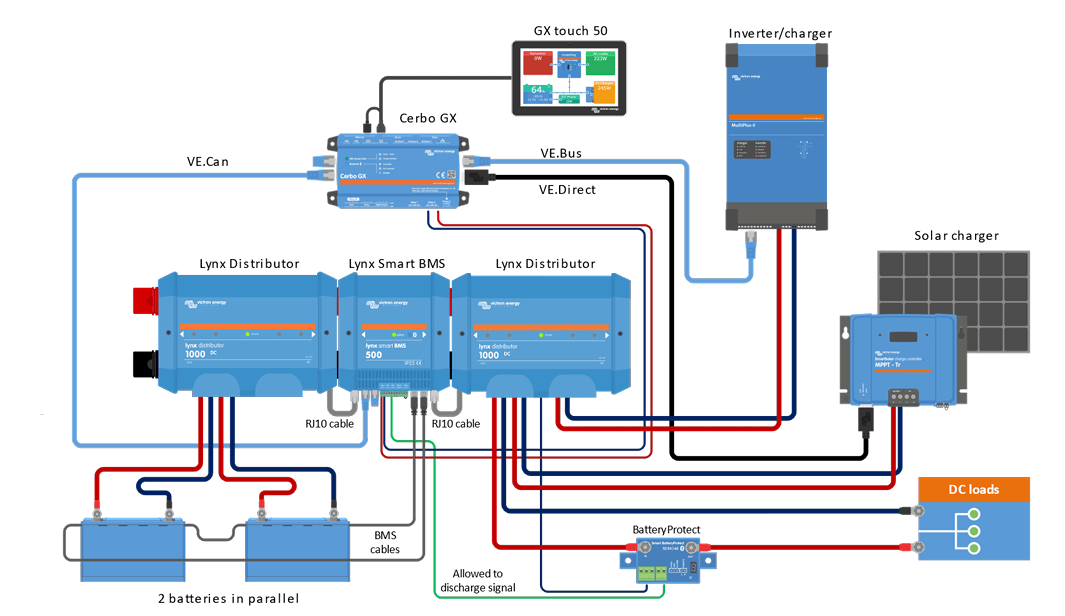

The Lynx Smart BMS 1000 NG effortlessly integrates into your larger energy system. By connecting with Victron inverters, solar chargers, and other components, the BMS provides streamlined control and efficient energy management:
- Compatible with Victron inverter/chargers: Automatically controls power systems via connected GX devices, ensuring maximum system performance.
- VE.Can and NMEA 2000 Communication: Seamlessly integrates into marine networks for comprehensive data monitoring.
Enhanced Performance with Parallel Redundancy
The Lynx Smart BMS NG series introduces parallel redundancy, allowing for the installation of multiple BMS units to create a more robust and scalable battery system:
- Redundancy for Increased Capacity: Multiple Lynx BMS units can be installed, adding redundancy and boosting total system capacity.
- Continuous Operation: Even in the event of a network issue, your system will continue to function safely until reconnection is possible.
Ideal for a Range of Applications
Whether you are powering a fully-electric yacht, hybrid generator, or off-grid energy system, the Victron Lynx Smart BMS 1000 NG is designed to deliver robust performance in demanding environments. With firmware upgrades and ongoing support, this BMS represents the cutting-edge in energy storage management.
Key Features:
- Scalable battery bank configurations for 12V, 24V, and 48V systems.
- Bluetooth-enabled monitoring via VictronConnect App or GX devices.
- Built-in safety mechanisms like the contactor and pre-charge circuit.
- VE.Can and NMEA 2000 compatibility for seamless data communication.
- Parallel redundancy to increase system capacity and reliability.
Don’t miss the chance to optimize your energy storage. Upgrade your system today with the Victron Lynx Smart BMS 1000 NG for superior performance in marine, off-grid, or industrial environments!
Visit Victron's Official Lynx Smart BMS Product Manual for More Details
Visit Victron's Official Lynx Smart BMS Webpage for More Details
(LYN034170310)

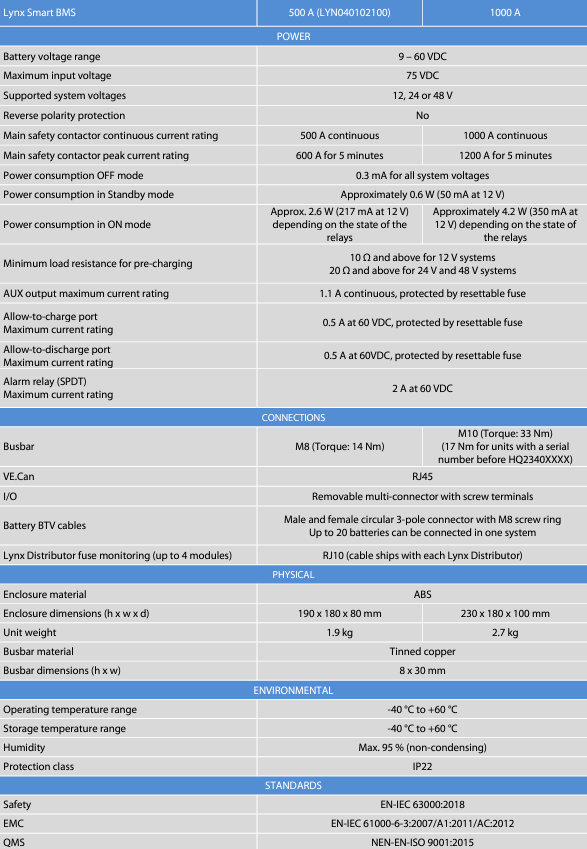

Specifications
Lynx Smart BMS | 1000 A |
Power | |
Battery voltage range | 9 – 60 VDC |
Maximum input voltage | 75 VDC |
Supported system voltages | 12, 24 or 48 V |
Reverse polarity protection | No |
Main safety contactor continuous current rating | 1000 A continuous |
Main safety contactor peak current rating | 1200 A for 5 minutes |
Power consumption OFF mode | 0.3 mA for all system voltages |
Power consumption in Standby mode | Approximately 0.6 W (50 mA at 12 V) |
Power consumption in ON mode | Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays |
Minimum load resistance for pre-charging | 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems |
AUX output maximum current rating | 1.1 A continuous, protected by resettable fuse |
Allow-to-charge port Maximum current rating |
0.5 A at 60 VDC, protected by resettable fuse |
Allow-to-discharge port Maximum current rating |
0.5 A at 60VDC, protected by resettable fuse |
Alarm relay (SPDT) Maximum current rating |
2 A at 60 VDC |

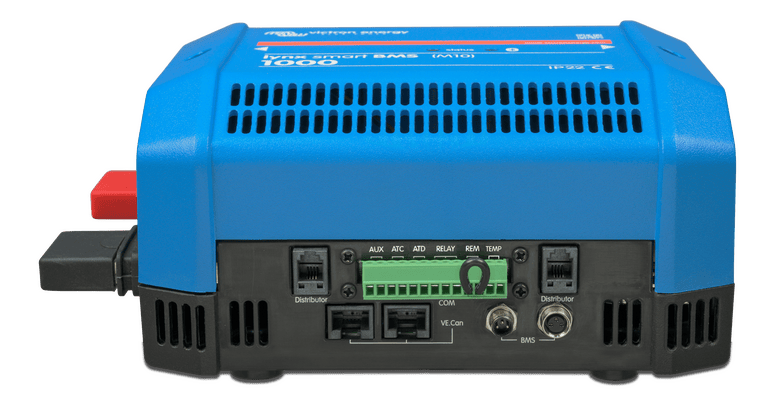

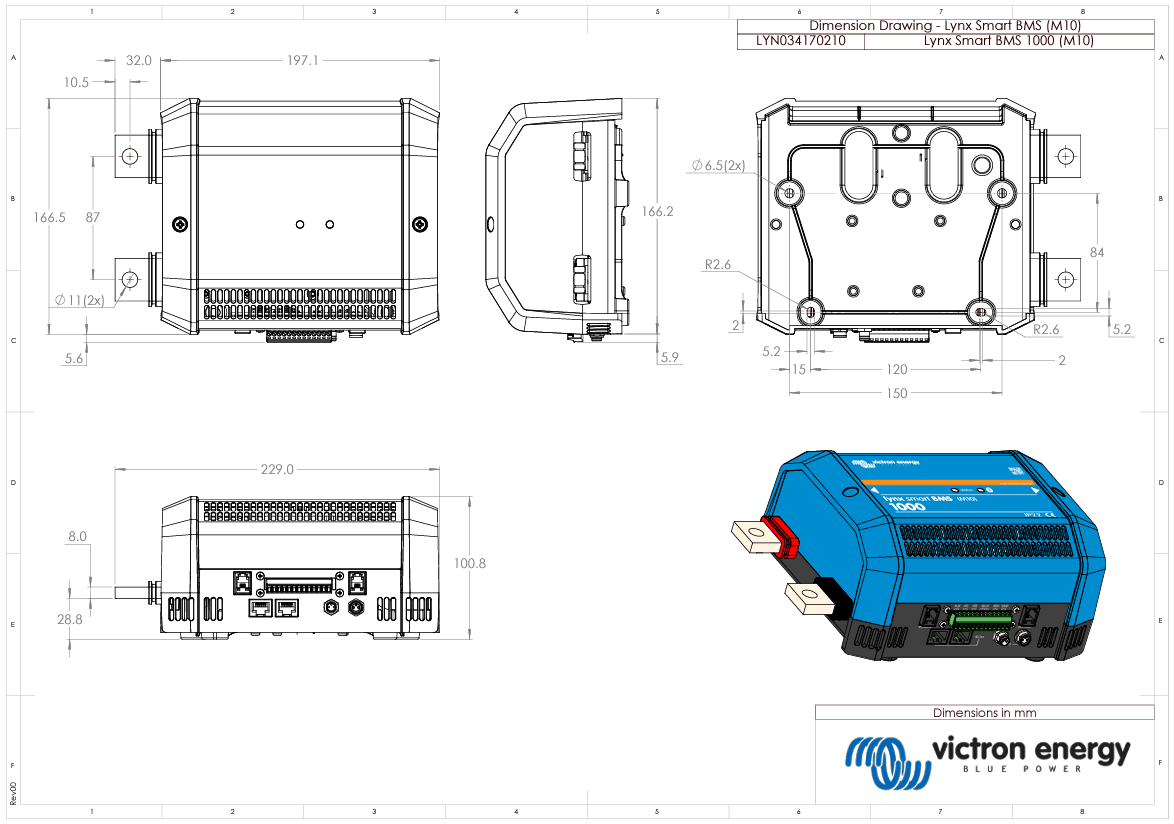

Connections | |
Busbar | M10 (Torque: 33 Nm) (17 Nm for units with a serial number before HQ2340XXXX) |
VE.Can | RJ45 |
I/O | Removable multi-connector with screw terminals |
Battery BTV cables | Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system |
Lynx Distributor fuse monitoring (up to 4 modules) | RJ10 (cable ships with each Lynx Distributor) |
Physical | |
Enclosure material | ABS |
Enclosure dimensions (h x w x d) | 230 x 180 x 100 mm |
Unit weight | 2.7 kg |
Busbar material | Tinned copper |
Busbar dimensions (h x w) | 8 x 30 mm |
Environmental | |
Operating temperature range | -40 °C to +60 °C |
Storage temperature range | -40 °C to +60 °C |
Humidity | Max. 95 % (non-condensing) |
Protection class | IP22 |
Standards | |
Safety | EN-IEC 63000:2018 |
EMC | EN-IEC 61000-6-3:2007/A1:2011/AC:2012 |
QMS | NEN-EN-ISO 9001:2015 |
SKU | VIC-LYN034170310 |
Barcode # | 8719076063568 |
MPN # | LYN034170310 |
