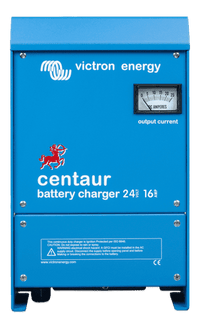

Victron 24V 16A Multi-Bank Centaur 24/16 (3) Uin 90-265VAC/45-65Hz Battery Charger

Fully automatic three stage charge characteristic

RRP $842.60
$576.61
Save $265.99
Sale Ends in
At 23:59 pm, 27 December 2024
In stock at Victron Warehouse Victoria
Please allow 3 business days before dispatch
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron 24V 16A Multi-Bank Centaur 24/16 (3) Uin 90-265VAC/45-65Hz Battery Charger, to the majority of areas. Check your shipping details on the cart page for more information.

Quality without compromise

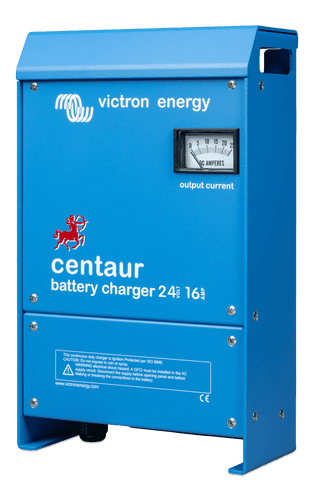

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air.

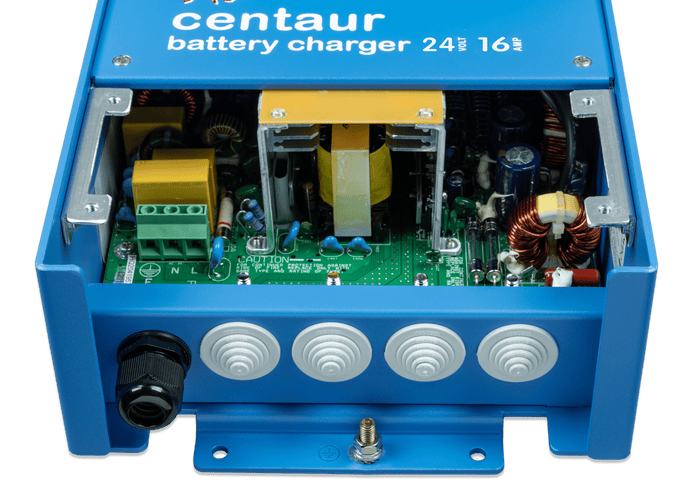

Circuit boards are protected with an acrylic coating for maximum corrosion resistance.
Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.

The chargers also accept a 90-400 V DC supply.

Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks
Each output is capable to supply the full rated current.

Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate.
An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell.
A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

Learn more about batteries and battery charging

To learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to our book ‘Electricity on Board’.

OPTIONAL ACCESSORIES

Manufacturer's Website
(VIC-CCH024016000)

SKU VIC-CCH024016000
Barcode # 8719076021544
MPN # VIC-CCH024016000
