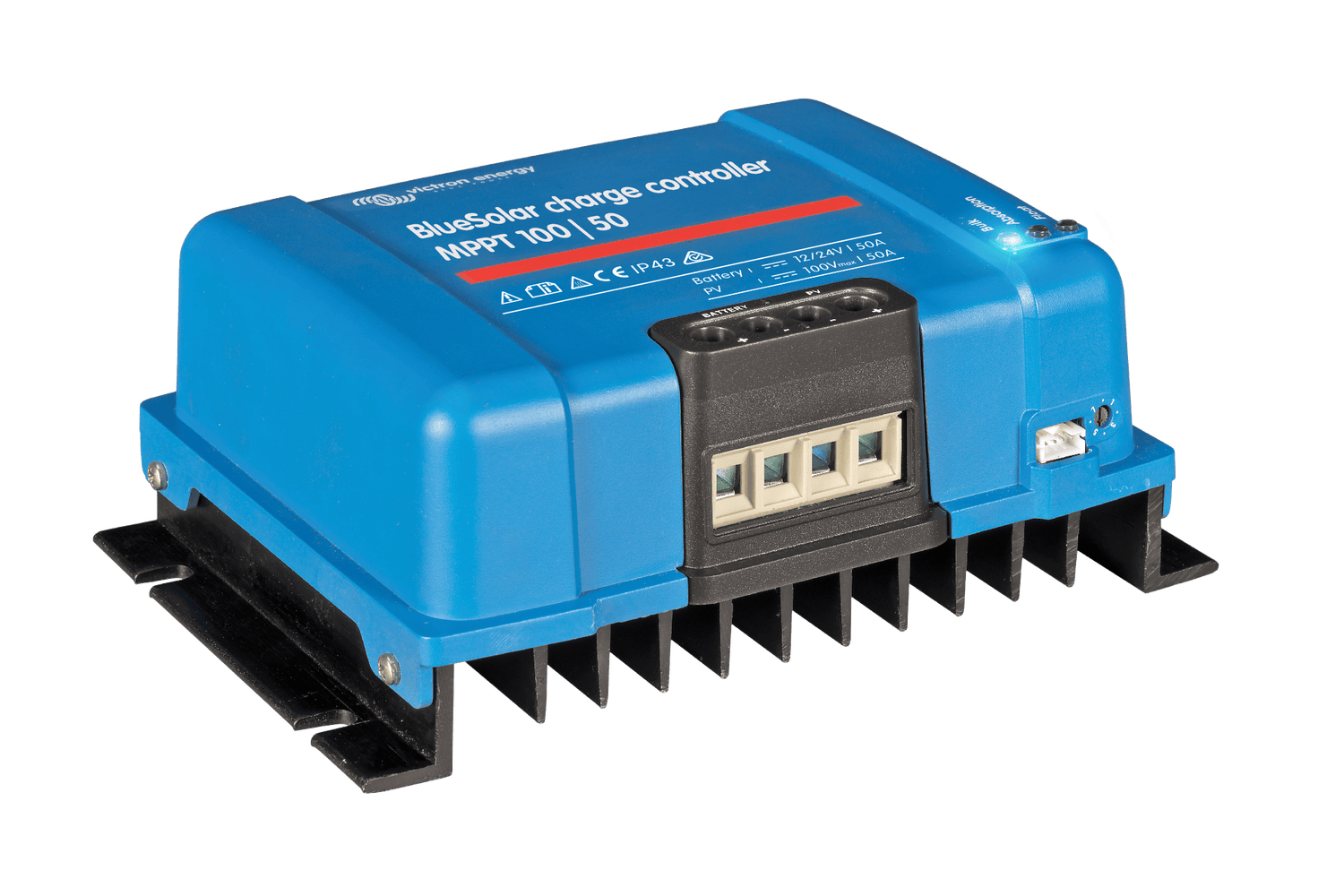

Victron 12/24V 50A BlueSolar MPPT 100/50 Non-Bluetooth Solar Charge Controller
Maximize Solar Performance with Victron BlueSolar 100/50 MPPT Charge Controller
Important Note about BlueSolar (Non-Bluetooth Range)
For Bluetooth connectivity, please explore our SmartSolar range which includes built-in Bluetooth support, ideal for wireless monitoring and programming. If Bluetooth is required using the BlueSolar range, a VE.Direct to Bluetooth Dongle is required, purchased separately.
Exceptional Energy Harvest with Advanced MPPT Technology
Unlock superior energy harvesting with the Victron BlueSolar 100/50 MPPT Controller, even under clouded skies. Benefit from up to 30% increased energy compared to PWM controllers and outperform slower MPPT models by up to 10%. This ultra-fast tracking technology ensures that you get the most out of your solar panels at all times.
Optimal Energy with Intelligent Shading Response
Experience the advanced Maximum Power Point Detection of the BlueSolar 100/50, which adeptly handles partial shading. Unlike conventional systems that may settle for less efficient power points, our innovative algorithm seeks out the optimum MPP, ensuring you harness maximum energy and enhance your system's yield.
Peak Conversion Efficiency
Without a Fan Enjoy more than 98% efficiency with the BlueSolar 100/50 — a fanless design that delivers full power output up to 40°C (104°F). With outstanding conversion efficiency, your solar energy system will operate smoothly and reliably.
Customizable Charging for Every Need
Tailor your solar charging with the BlueSolar's flexible charge algorithm. Choose from eight pre-set modes or customize your settings via our software for a perfectly adjusted charge algorithm that fits your specific energy requirements.
Comprehensive Electronic Protection
Your system is safeguarded with extensive electronic protection features, including over-temperature protection, PV short circuit, reverse polarity protection, and more. This ensures long-term reliability and safety for your solar energy setup.
Precision Charging with Temperature Compensation
The built-in temperature sensor in the BlueSolar 100/50 adjusts charging for maximum efficiency, accounting for environmental temperature variations, thus prolonging battery life and performance.
Take the leap towards efficient solar charging today with the Victron BlueSolar MPPT Solar Controller and harness the full potential of the sun's power
Visit Victron Energy's BlueSolar 100/30 & 100/50 Solar Charge Controller Webpage for More Details
(Vic-SCC020050200)

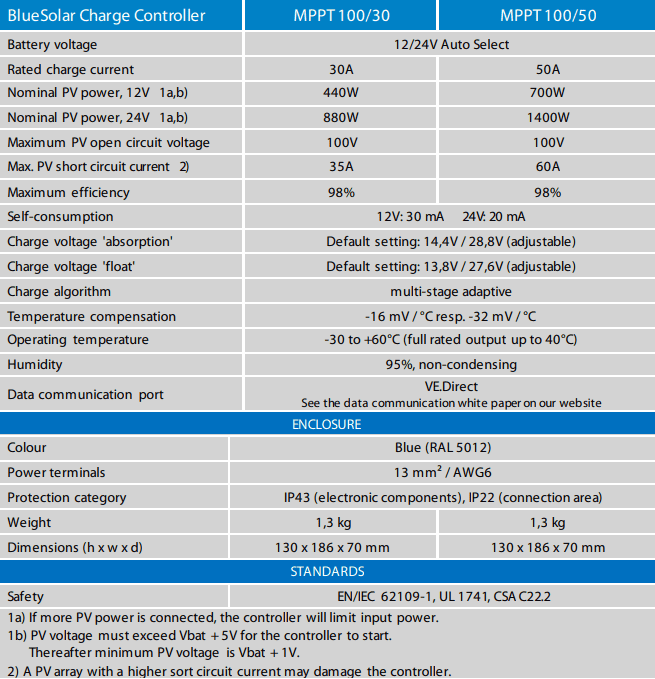

Specifications
Feature | MPPT 100/50 |
---|---|
Battery voltage | 12/24V Auto Select |
Rated charge current | 50A |
Nominal PV power, 12V (1a,b) | 700W |
Nominal PV power, 24V (1a,b) | 1400W |
Maximum PV open circuit voltage | 100V |
Max. PV short circuit current (2) | 60A |
Maximum efficiency | 98% |
Self-consumption | 12V: 30 mA / 24V: 20 mA |
Charge voltage 'absorption' | Default setting: 14.4V / 28.8V (adjustable) |
Charge voltage 'float' | Default setting: 13.8V / 27.6V (adjustable) |
Charge algorithm | multi-stage adaptive |
Temperature compensation | -16 mV / °C resp. -32 mV / °C |
Operating temperature | -30 to +60°C (full rated output up to 40°C) |
Humidity | 95%, non-condensing |
Data communication port | VE.Direct |
Enclosure | |
Colour | Blue (RAL 5012) |
Power terminals | 16 mm² / AWG6 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 1.3 kg |
Dimensions (h x w x d) | 130 x 186 x 70 mm |
Standards | |
Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.
2) A PV array with a higher short circuit current may damage the controller.
SKU | Vic-SCC020050200 |
Barcode # | 8719076025566 |
MPN # | Vic-SCC020050200 |
