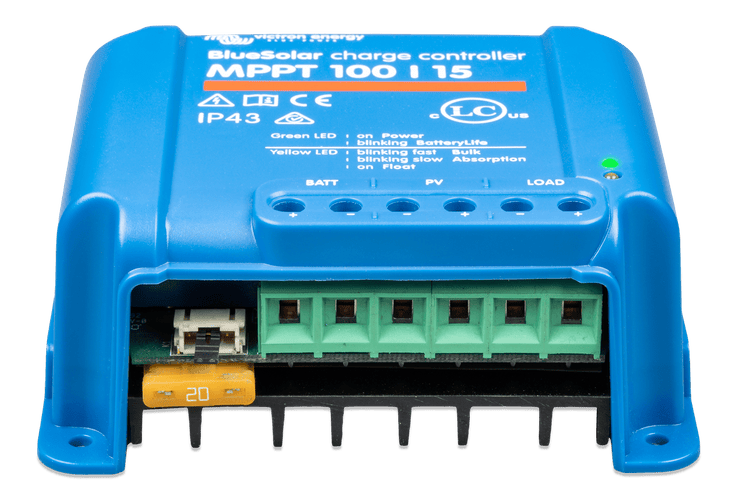

Victron 12/24V 15A BlueSolar MPPT 100/15 Non-Bluetooth Solar Charge Controller
Please allow 3 business days before dispatch
Maximize Your Solar Efficiency with Victron's BlueSolar 100/15 MPPT Charge Controller
Important! Programming Your Victron BlueSolar 100/15 for Lithium Batteries
The BlueSolar 100/15 is set to AGM batteries as default, in order to set to lithium you must do one of the following options, all three require an additional purchase:
-
PC Connection: Utilize a VE.Direct to USB cable to connect the unit to a PC. Once connected, you can program the controller using the VictronConnect software, which offers an intuitive interface and easy navigation.
-
Smart Device Connection: For programming with a smartphone or tablet, connect a VE.Direct to Bluetooth Dongle to the unit. With this setup, you can use the VictronConnect app for a seamless and convenient programming experience right from your device.
-
Direct Display Programming: Alternatively, if you prefer hands-on programming, connect a VE.Direct cable from the charge controller to a Victron MPPT control/display. You can then program the unit directly via the display interface, which provides on-the-spot adjustments and settings confirmation.
Exceptional Energy Harvesting with Ultra-Fast MPPT
Harness the power of the sun like never before with Victron BlueSolar 100/15's cutting-edge MPPT technology. Even during fluctuating light conditions, our ultra-fast MPPT advantage ensures you capture up to 30% more energy than with PWM controllers and an additional 10% over other MPPT options.
Reliable Load Output for Battery Protection
The smart load output feature of the BlueSolar 100/15 prevents battery over-discharge by automatically disconnecting the load at a predetermined voltage. Choose our innovative Battery Life algorithm for intelligent battery management, ensuring durability and efficiency. For detailed instructions on connecting high-power loads, refer to our user-friendly manual.
Innovative Battery Life Management
Victron's exclusive Battery Life algorithm extends your battery's lifespan by avoiding the harmful patterns of incomplete charging. Experience the benefits of a fully charged battery, ensuring operational efficiency and longevity.
Tailored Charging with Programmable Algorithms
Customize your solar charging with programmable battery charge algorithms, available through the software section on our website. Adapt the controller to suit your specific energy needs.
Advanced Day/Night Control and Light Dimming
Implement sophisticated day/night timing and light dimming functions by visiting the software section on our website. Take control of your energy management with precision.
Visit Victron Energy's Official BlueSolar 75/10, 75/15, 100/15 & 100/20 Webpage for More Details
(SCC010015200R)
Specifications
Model | BlueSolar MPPT 100/15 |
---|---|
Battery voltage (auto select) | 12/24V |
Rated charge current | 15A |
Nominal PV power, 12V (1a,b) | 220W |
Nominal PV power, 24V (1a,b) | 440W |
Nominal PV power, 48V (1a,b) | n/a |
Max. PV short circuit current (2) | 15A |
Automatic load disconnect | Yes |
Max. PV open circuit voltage | 100V |
Peak efficiency | 98% |
Self-consumption – load on | 12V: 25 mA 24V: 15 mA |
Self-consumption – load off | 12V: 25 mA 24V: 15 mA |
Charge voltage 'absorption' | 14.4V / 28.8V (adjustable) |
Charge voltage 'float' | 13.8V / 27.6V (adjustable) |
Charge algorithm | multi-stage adaptive |
Temperature compensation | -16 mV / °C resp. -32 mV / °C |
Max. continuous load current | 15A |
Low voltage load disconnect | 1.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm |
Low voltage load reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
Protection | Output short circuit / Over temperature |
Operating temperature | -30 to +60°C (full rated output up to 40°C) |
Humidity | 95%, non-condensing |
Data communication port | VE.Direct |
Enclosure | |
Colour | Blue (RAL 5012) |
Power terminals | 6 mm² / AWG10 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 0.6 kg |
Dimensions (h x w x d) | 100 x 131 x 50 mm |
Standards | |
Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.
2) A PV array with a higher short circuit current may damage the controller.
SKU | Vic-SCC010015200R |
Barcode # | 8719076025337 |
MPN # | SCC010015200R |
