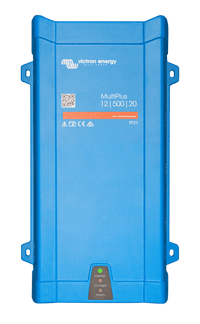

Victron 12V 500VA MultiPlus 12/500/20-16 Inverter/Charger

Specifications

1. Adjustability

   • Can be adjusted to 60Hz and to 240V.

2. Protection Features

   • Output short circuit.
   • Overload.
   • Battery voltage too high.
   • Battery voltage too low.
   • Temperature too high.
   • 230VAC on inverter output.
   • Input voltage ripple too high.

3. Load Capacity

   • Non-linear load, crest factor 3:1.

4. Operating Environment

   • Up to 25°C ambient temperature.

5. Programmable Relay

   • Can be set for general alarm, DC under voltage, or generator start/stop signal function.
   • AC rating: 230V/4A.
   • DC rating: 4A up to 35VDC, 1A up to 60VDC.

6. Control Options

   • Remote control.
   • Battery charge voltage adjustment.
   • Inverter frequency adjustment.
   • Search mode setting.

7. Battery and Inverter Settings

   • Battery charge voltage adjustment.
   • Search mode setting.
