Exotronic Pre-wired Victron Smart Lithium Board B

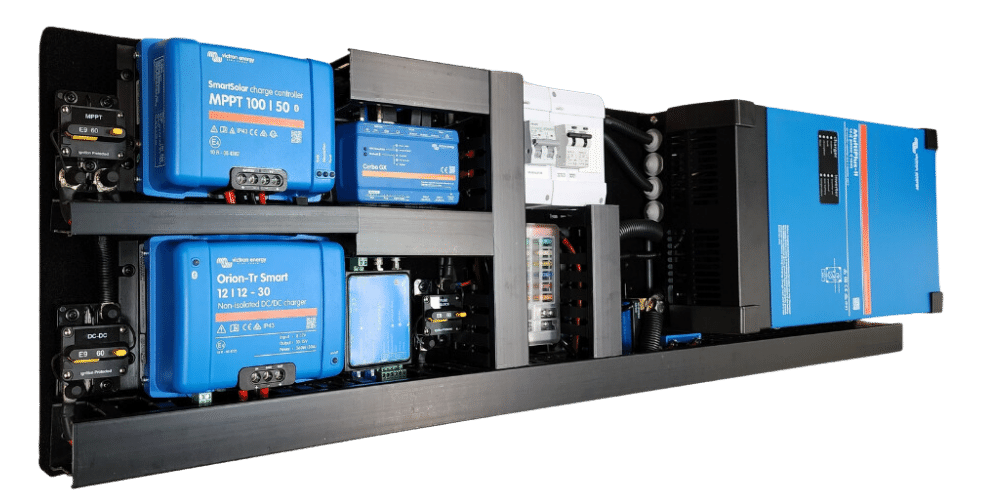

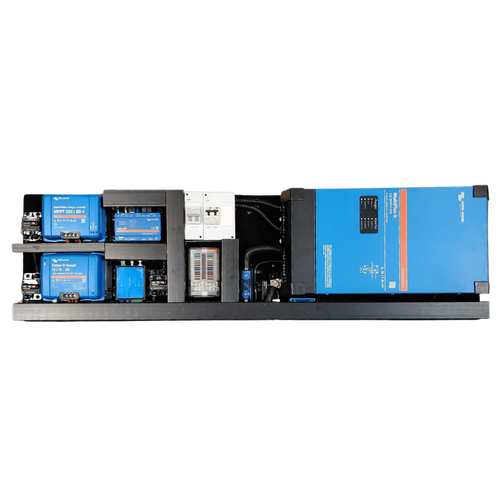

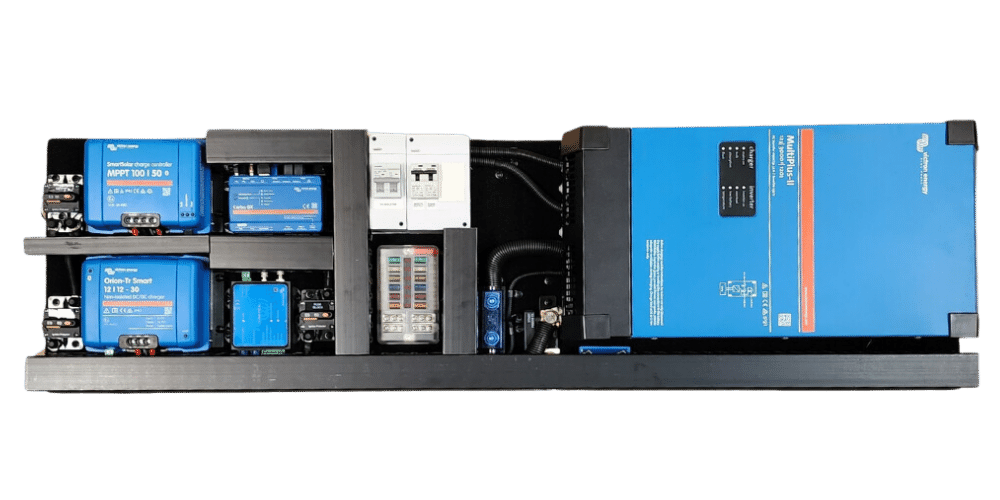

Elevate Your RV Life with the Pre-wired Victron Smart Lithium Board B
Transform your van into a powerhouse of efficiency and reliability with the Pre-wired Victron Smart Lithium Board B, meticulously designed for Victron Smart LiFePO4 Lithium Batteries. This premium, pre-wired solution is your key to unlocking effortless, time, and cost-saving installations, setting a new standard for van conversions.
Professionals: Save on Labour Costs with a Pre-Programmed, Ready-to-Install System
For professionals in the RV and van conversion industry, the Pre-wired Victron Smart Lithium Board B represents an unparalleled opportunity to streamline your projects. This pre-wired, pre-programmed, and fully commissioned board is ready to install straight out of the box, dramatically reducing labour costs and installation time. The neat, compact design ensures a clean and organized setup, enhancing the overall aesthetic and functional quality of your conversions. With the pre-wired board, you can deliver exceptional value to your clients, showcasing a sleek, efficient, and reliable power solution that stands out in the market.
DIY Enthusiasts: Achieve a Professional & Cost-Effective Installation
For the DIY enthusiast looking to elevate their RV or van conversion, the Pre-wired Victron Smart Lithium Board B is a game-changer. This pre-wired solution not only simplifies the installation process but also ensures a professional and neat finish, akin to expert installations. Say goodbye to the hassle and uncertainty of sourcing compatible components. The Power Board comes with everything you need, saving you both the effort and the expense of piecing together your system. It's designed with the DIY spirit in mind, offering a straightforward setup that doesn't compromise on quality or functionality. Achieve a professional-grade power system in your van, while significantly cutting down on costs and installation time.
Maximize Space with Strategic Design
Engineered for versatility, the pre-wired board offers flexible mounting options. Whether under a bed or a bench seat, it integrates seamlessly into your van, optimizing space without compromising on performance.
All-Inclusive Power Solution Package
- Victron 3000VA MultiPlus-II Inverter
- Power virtually any 230V 10A appliance with the 3000VA inverter.
- 120A mains charger for rapid charging from the grid.
- Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
- Safety switch circuit protection for added security in both incoming and outgoing inverter circuits
- Victron 50A MPPT SmartSolar Controller: Bluetooth-enabled for easy solar panel connection, ensuring efficient solar energy capture. (Genuine red Anderson supplied)
- Victron 30A Non-Isolated DC-DC Charger: Ensures flawless integration with smart alternators, enhancing your van's charging capabilities. (Genuine grey Anderson supplied)
- Victron 500A SmartShunt Battery Monitor: Offers real-time monitoring of your battery's status, with customizable alarms for critical alerts.
- Victron Cerbo GX: Grants unparalleled control over your system, with extensive connectivity options for a fully personalized setup.
- Ruuvi & Mopeka ready - Includes a pre-installed Bluetooth adapter so Ruuvi temperature sensors and Mopeka water and LPG tank levels can be connected (purchased separately)
- Including 5m of cables for connectivity with GX Touch Display Screen (purchased separately).
- Victron Smart Battery Protect: Safeguards your 12V loads, featuring an optional switch port for total control over your power usage.
- Victron VE.Bus BMS V2: Provides essential protection for your batteries, with a convenient switch port for easy management.
- Including 3m BMS to Victron Smart LiFePO4 Lithium Batteries CANBus extension cables
- Fuse Block & Circuit Breakers: Delivers superior circuit management and protection, ensuring your system's safety and efficiency.
- 400A MEGA Fuse and 70mm2 Power Cable: Offers robust current capacity and safety, a crucial component for the inverter.
Detailed Installation Guidance
Receive comprehensive documentation, including a wiring diagram and external wiring examples, for a hassle-free installation experience.
Why Our Victron Energy Power Board?
Choosing our pre-wired board means investing in quality, reliability, and peace of mind. Every component is configured for optimal performance, ensuring a premium power solution for your van.
Nationwide Shipping & Handling
We offer Australia-wide shipping, with the unit securely supplied on a pallet. Please ensure a suitable business address is provided for delivery, or that someone is home to accept the pallet.
Unmatched Customer Support
Our dedicated team is here to support you, guaranteeing satisfaction with our quality-assured product and expert assistance for any inquiries or support needs.
Elevate your van conversion with the Pre-wired Victron Smart Lithium Board B – the ultimate choice for discerning van owners seeking a seamless, high-quality power system.
(PWB-Vic-Li-B50X)
Specifications
Board Input Voltage |
11.2 – 17V |
Acceptable Battery Type |
Victron Smart LiFePO4 Range Only |
Minimum Battery Capacity and Current |
250Ah 250A Continuous Current |
Inverter Constant Output Power @ 25C |
3000VA / 2400W |
Inverter Constant Output Power @ 40C |
2200W |
Inverter Peak Power |
5500W |
Inverter Maximum Efficiency |
93% |
Board Zero Load Power (Inverter On) |
20W |
Board AC Input Voltage Range |
187 – 265VAC 45- 65Hz |
Maximum Charge Current - Mains |
120A |
Maximum Charge Current - Solar |
50A |
Maximum Charge Current - DC-DC |
30A |
Maximum Total Charge Current |
200A |
DC-DC Maximum Efficiency |
87% |
Output Absorption Voltage |
14.2V - Adjustable |
Output Float Voltage |
13.5V - Adjustable |
Battery Protect Trip Voltage |
11.5V for 30s - Adjustable |
Solar Maximum Voltage |
100V |
Solar Array Size |
0 – 1200W (600-800W recommended) |
Solar Maximum Short Circuit Current |
60A |
Solar Maximum Efficiency |
98% |
Board Temperature Rating |
5C – 45C (0C – 65C storage) |
Board A Dimensions |
900 x 530 x 170mm (720 x 580 x 170mm on request) |
Board B Dimensions |
1250 x 350 x 170mm |
Board Weight |
35kg |
SKU | PWB-Vic-Li-B50X |
MPN # | PWB-Vic-Li-B50X |
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
