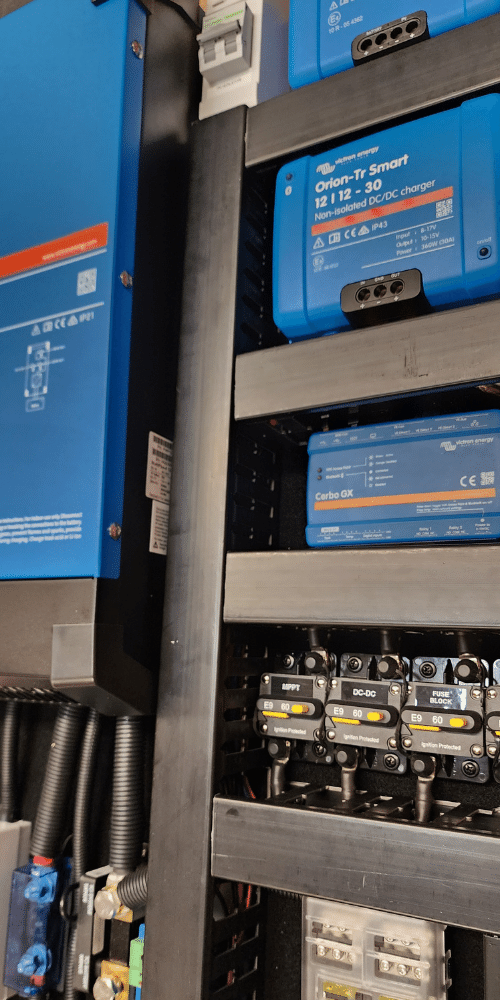

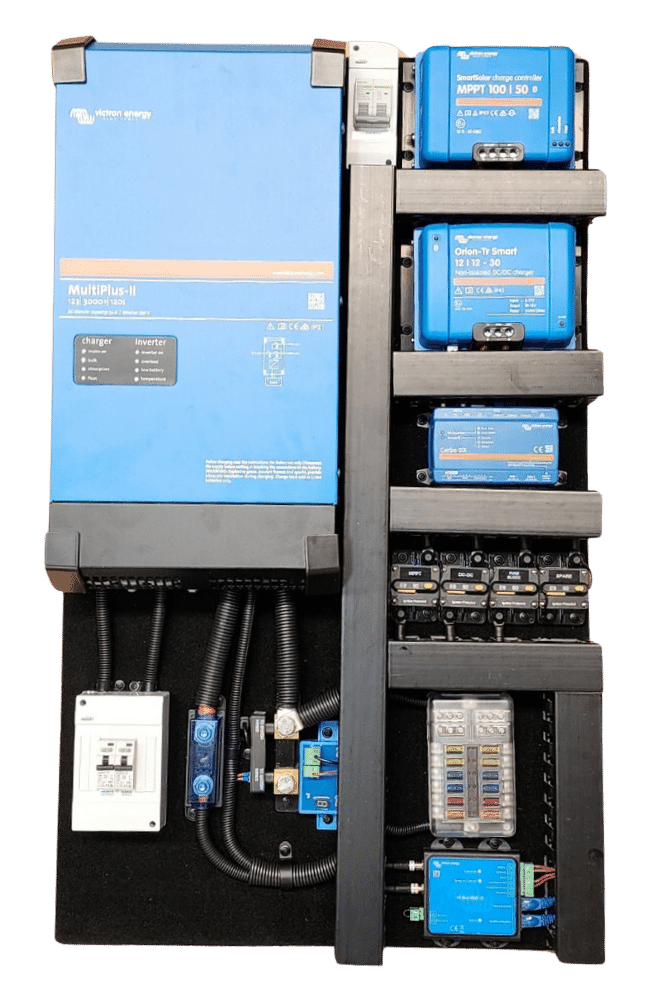

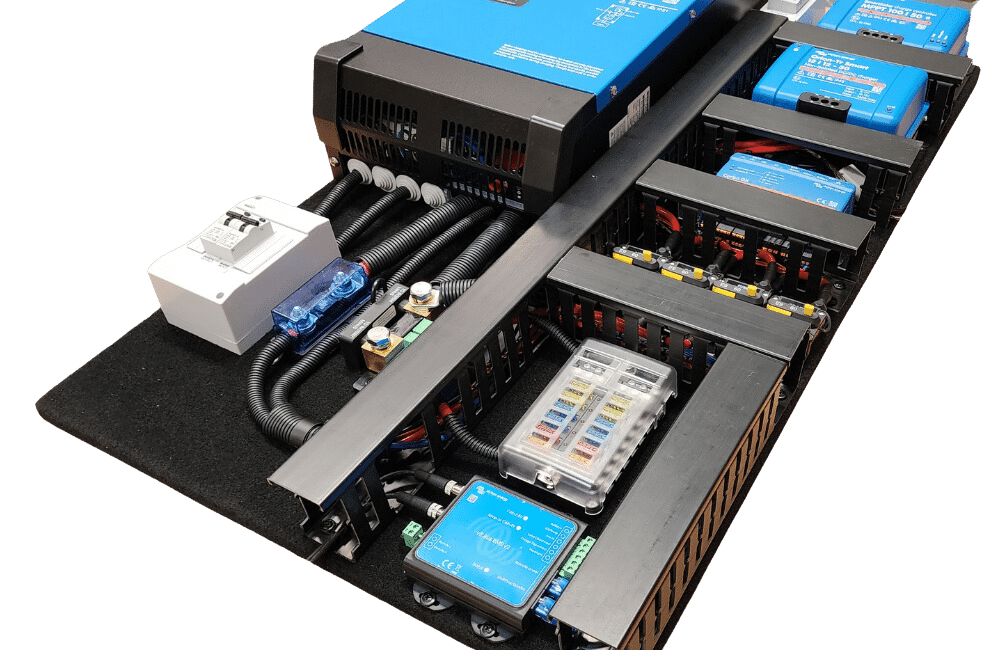

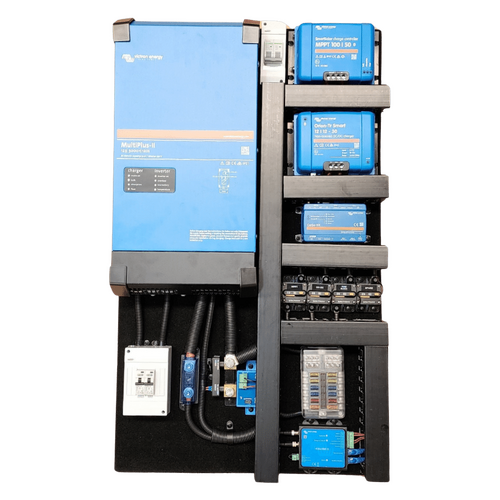

Pre-wired Victron Smart Lithium Board A
Elevate Your RV Life with the Pre-wired Victron Smart Lithium Board A
Transform your van into a powerhouse of efficiency and reliability with the Pre-wired Victron Smart Lithium Board A, meticulously designed for Victron Smart LiFePO4 Lithium Batteries. This premium, pre-wired solution is your key to unlocking effortless, time, and cost-saving installations, setting a new standard for van conversions.
Professionals: Save on Labour Costs with a Pre-Programmed, Ready-to-Install System
For professionals in the RV and van conversion industry, the Pre-wired Victron Smart Lithium Board A represents an unparalleled opportunity to streamline your projects. This pre-wired, pre-programmed, and fully commissioned board is ready to install straight out of the box, dramatically reducing labour costs and installation time. The neat, compact design ensures a clean and organized setup, enhancing the overall aesthetic and functional quality of your conversions. With the pre-wired board, you can deliver exceptional value to your clients, showcasing a sleek, efficient, and reliable power solution that stands out in the market.
DIY Enthusiasts: Achieve a Professional & Cost-Effective Installation
For the DIY enthusiast looking to elevate their RV or van conversion, the Pre-wired Victron Smart Lithium Board A is a game-changer. This pre-wired solution not only simplifies the installation process but also ensures a professional and neat finish, akin to expert installations. Say goodbye to the hassle and uncertainty of sourcing compatible components. The Power Board comes with everything you need, saving you both the effort and the expense of piecing together your system. It's designed with the DIY spirit in mind, offering a straightforward setup that doesn't compromise on quality or functionality. Achieve a professional-grade power system in your van, while significantly cutting down on costs and installation time.
Maximize Space with Strategic Design
Engineered for versatility, the pre-wired board offers flexible mounting options. Whether under a bed or a bench seat, it integrates seamlessly into your van, optimizing space without compromising on performance.
All-Inclusive Power Solution Package
- Victron 3000VA MultiPlus-II Inverter
- Power virtually any 230V 10A appliance with the 3000VA inverter.
- 120A mains charger for rapid charging from the grid.
- Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
- Safety switch circuit protection for added security in both incoming and outgoing inverter circuits
- Victron 50A MPPT SmartSolar Controller: Bluetooth-enabled for easy solar panel connection, ensuring efficient solar energy capture. (Genuine red Anderson supplied)
- Victron 30A Non-Isolated DC-DC Charger: Ensures flawless integration with smart alternators, enhancing your van's charging capabilities. (Genuine grey Anderson supplied)
- Victron 500A SmartShunt Battery Monitor: Offers real-time monitoring of your battery's status, with customizable alarms for critical alerts.
- Victron Cerbo GX: Grants unparalleled control over your system, with extensive connectivity options for a fully personalized setup.
- Ruuvi & Mopeka ready - Includes a pre-installed Bluetooth adapter so Ruuvi temperature sensors and Mopeka water and LPG tank levels can be connected (purchased separately)
- Including 5m of cables for connectivity with GX Touch Display Screen (purchased separately).
- Victron Smart Battery Protect: Safeguards your 12V loads, featuring an optional switch port for total control over your power usage.
- Victron VE.Bus BMS V2: Provides essential protection for your batteries, with a convenient switch port for easy management.
- Including 3m BMS to Victron Smart LiFePO4 Lithium Batteries CANBus extension cables

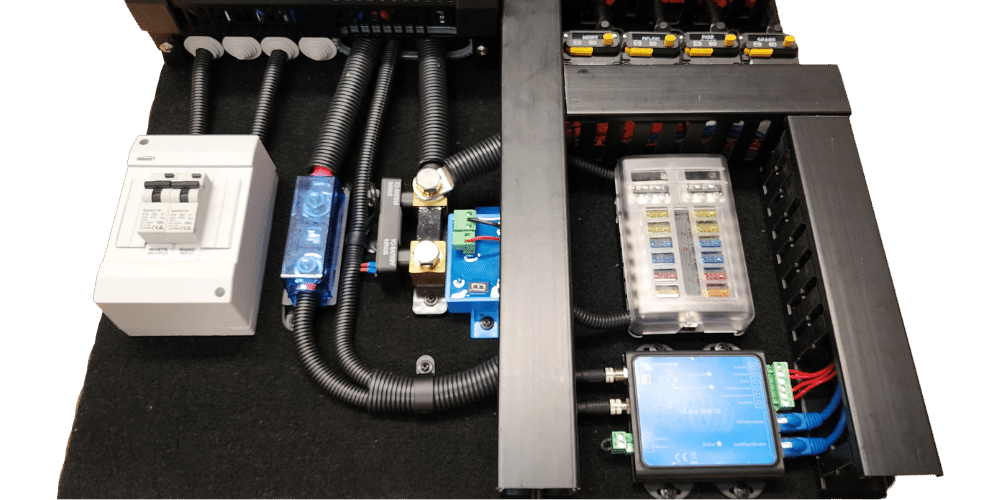

- Fuse Block & Circuit Breakers: Delivers superior circuit management and protection, ensuring your system's safety and efficiency.
- 400A MEGA Fuse and 70mm2 Power Cable: Offers robust current capacity and safety, a crucial component for the inverter.
Detailed Installation Guidance
Receive comprehensive documentation, including a wiring diagram and external wiring examples, for a hassle-free installation experience.
Why Our Victron Energy Power Board?
Choosing our pre-wired board means investing in quality, reliability, and peace of mind. Every component is configured for optimal performance, ensuring a premium power solution for your van.
Nationwide Shipping & Handling
We offer Australia-wide shipping, with the unit securely supplied on a pallet. Please ensure a suitable business address is provided for delivery, or that someone is home to accept the pallet.
Unmatched Customer Support
Our dedicated team is here to support you, guaranteeing satisfaction with our quality-assured product and expert assistance for any inquiries or support needs.
Elevate your van conversion with the Pre-wired Victron Smart Lithium Board A – the ultimate choice for discerning van owners seeking a seamless, high-quality power system.
(PWB-Vic-Li-A50X)
Specifications
Board Input Voltage |
11.2 – 17V |
Acceptable Battery Type |
Victron Smart LiFePO4 Range Only |
Minimum Battery Capacity and Current |
250Ah 250A Continuous Current |
Inverter Constant Output Power @ 25C |
3000VA / 2400W |
Inverter Constant Output Power @ 40C |
2200W |
Inverter Peak Power |
5500W |
Inverter Maximum Efficiency |
93% |
Board Zero Load Power (Inverter On) |
20W |
Board AC Input Voltage Range |
187 – 265VAC 45- 65Hz |
Maximum Charge Current - Mains |
120A |
Maximum Charge Current - Solar |
50A |
Maximum Charge Current - DC-DC |
30A |
Maximum Total Charge Current |
200A |
DC-DC Maximum Efficiency |
87% |
Output Absorption Voltage |
14.2V - Adjustable |
Output Float Voltage |
13.5V - Adjustable |
Battery Protect Trip Voltage |
11.5V for 30s - Adjustable |
Solar Maximum Voltage |
100V |
Solar Array Size |
0 – 1200W (600-800W recommended) |
Solar Maximum Short Circuit Current |
60A |
Solar Maximum Efficiency |
98% |
Board Temperature Rating |
5C – 45C (0C – 65C storage) |
Board A Dimensions |
900 x 530 x 170mm (720 x 580 x 170mm on request) |
Board B Dimensions |
1250 x 350 x 170mm |
Board Weight |
35kg |
SKU | PWB-Vic-Li-A50X |
MPN # | PWB-Vic-Li-A50X |
