Exotronic Karijini Series Pre-wired Victron Board - Portrait

3000VA + Mains 120A + Solar 50A + DC-DC 50A + Cerbo GX

RRP $6,999.00
$5,081.55
Save $1,917.45
Sale Ends in
At 23:59 pm, 27 December 2024
In stock at Victron Warehouse Victoria
Please allow 2 business days before dispatch
Normally in stock for immediate dispatch but please contact us for availability.
Exotronic logo

Available Options

You may also need:

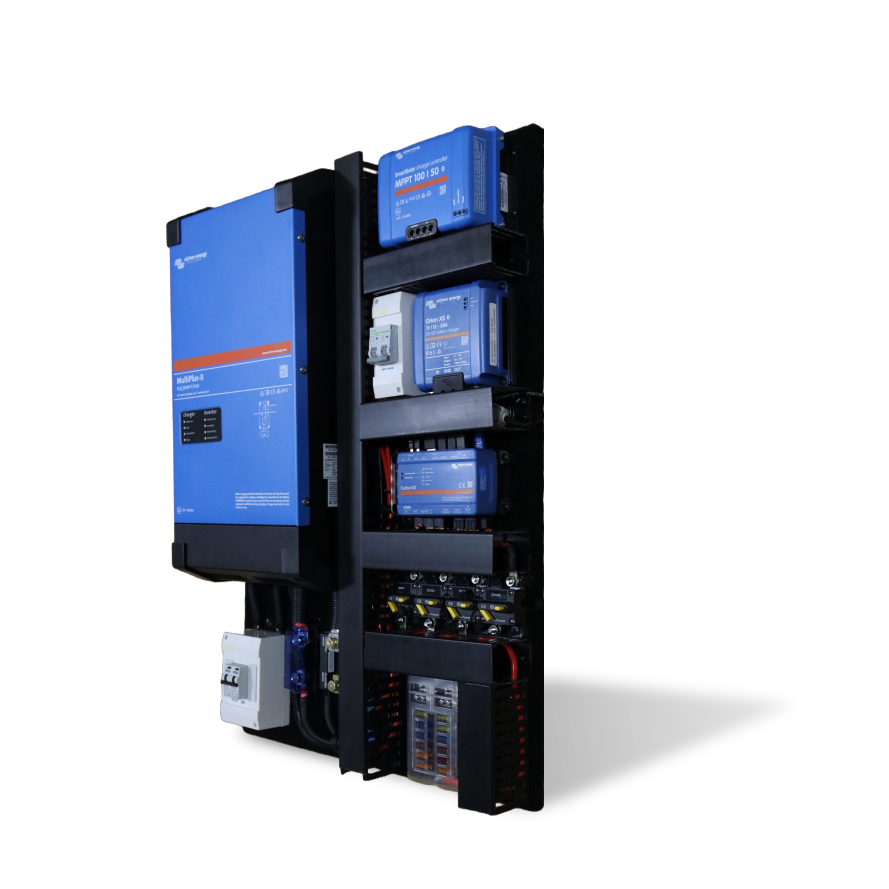

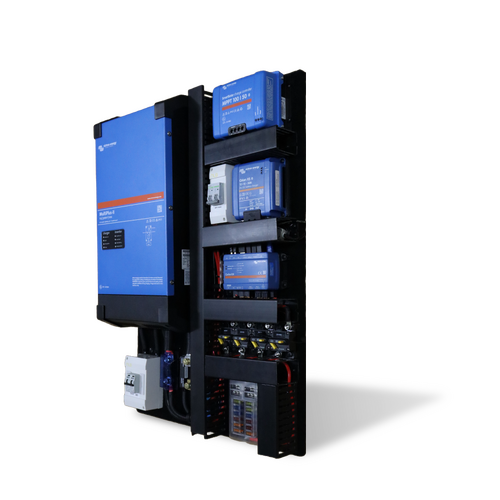

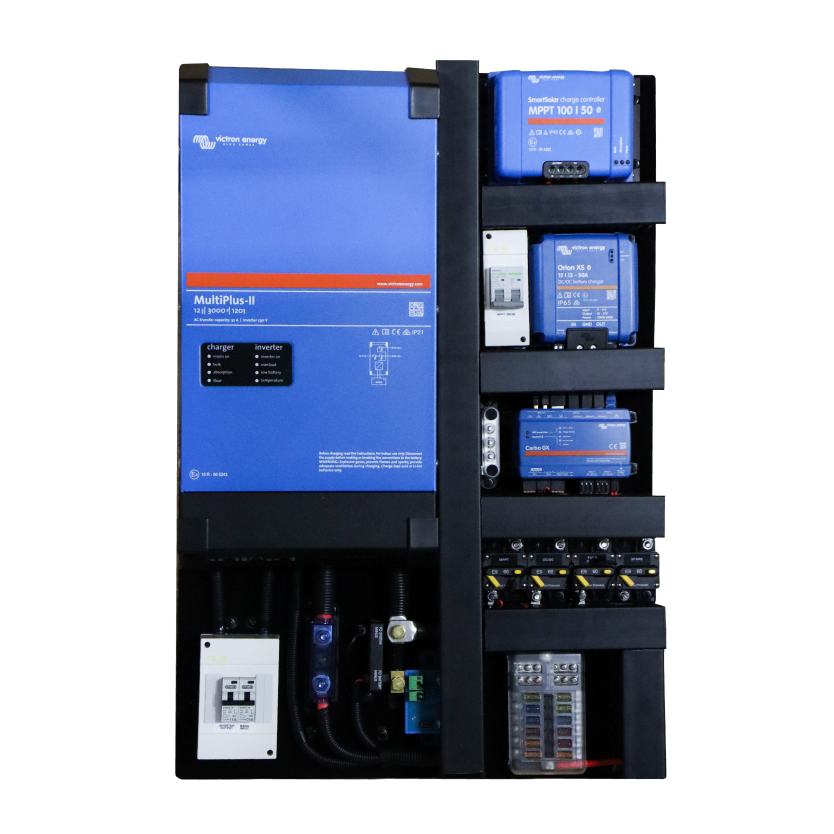

Karijini Series Pre-Wired Victron Energy Power Board (Portrait Layout) for Van Conversions

Inspired by the breathtaking beauty and rugged landscape of Karijini National Park, the Karijini Series Pre-Wired Victron Energy Power Board is designed to endure the most demanding off-grid adventures. Just like the national park it’s named after, this power solution is robust, reliable, and built to perform in extreme environments. Whether you're a seasoned professional or a passionate DIYer, this pre-wired solution makes van conversions easier, faster, and more efficient.

Professional-Grade Power System for All Users

Ideal for both professionals and DIY enthusiasts, the Karijini Series Power Board offers an all-in-one pre-wired system that simplifies installation without sacrificing performance. Whether you’re a pro setting up a custom rig or a DIYer tackling your first conversion, this board is designed to meet your needs with minimal hassle.

Versatile Mounting and Space Optimization

This power board is designed for maximum flexibility—perfectly suited for wall or floor mounting. You can easily position it under your van bed or seat, allowing you to optimize space without sacrificing functionality.

What's Included in This Power System?

Our all-in-one pre-wired board comes loaded with Victron Energy’s top-tier components:

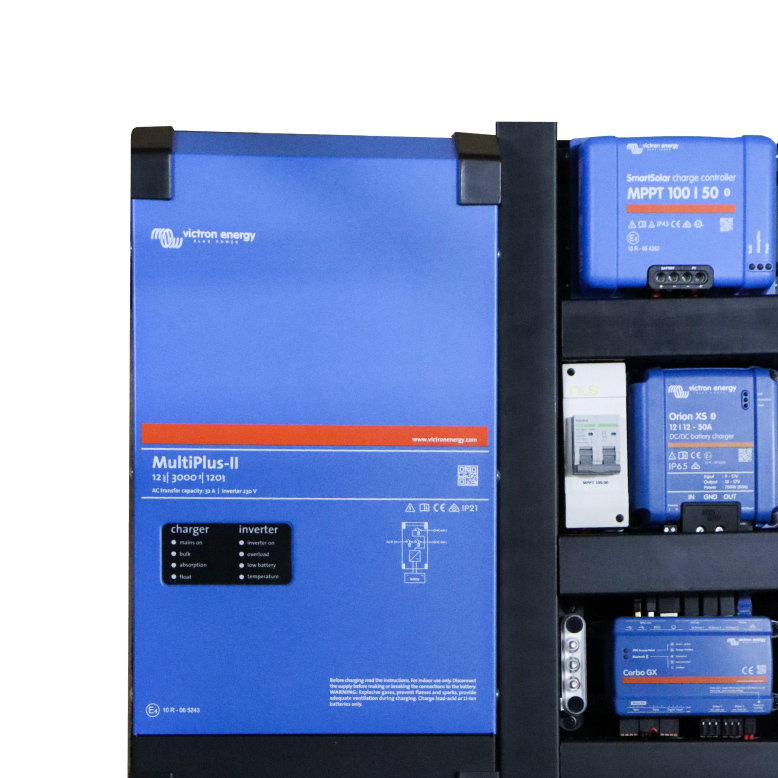

Victron 3000VA MultiPlus-II Inverter

  • Power virtually any 10A appliances with ease using the 3000VA inverter.
  • 120A mains charger for rapid on-grid charging.
  • Automatic transfer switch for seamless grid-to-battery transitions.

Victron 50A MPPT SmartSolar Controller

  • Efficiently connect to solar panels with the red Anderson connector for hassle-free solar energy harnessing.
  • Bluetooth-enabled for real-time solar monitoring via the VictronConnect app.

Victron Orion XS 50A DC-DC Charger

  • Features Adaptive Three-Step Charging, extending battery life and lowering maintenance.
  • Includes an intelligent Recovery Function for dependable energy management.
  • Remote monitoring and control via Bluetooth.

Victron 300A SmartShunt Battery Monitor

  • Get real-time insights into your battery’s state of charge, voltage, and energy usage.
  • Set audible alarms for low battery levels to prevent energy depletion.

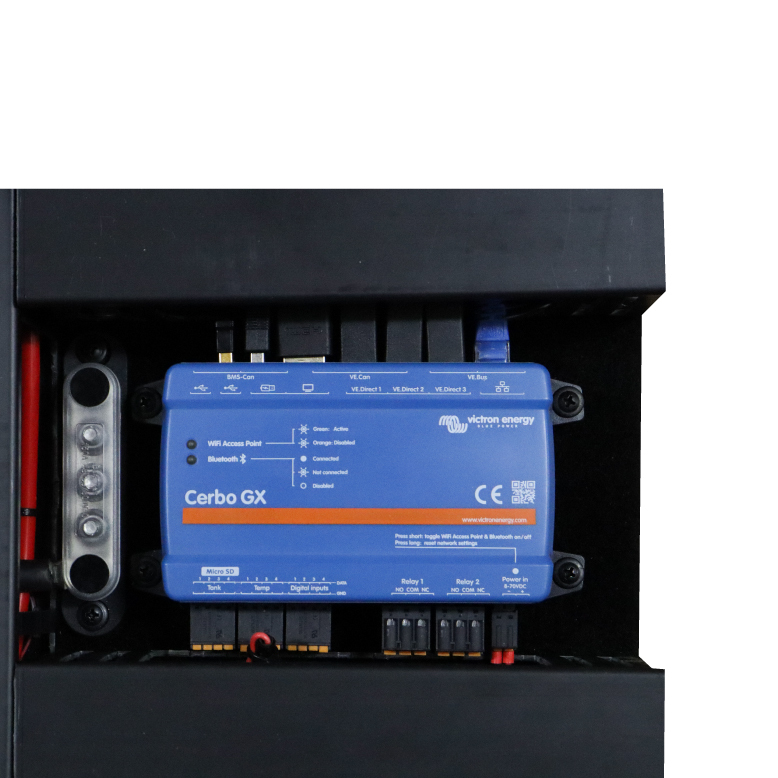

Victron Cerbo GX

  • Full control with adjustable current limits, relays, and sensors.
  • Ready for Ruuvi temperature sensors and Mopeka water and LPG tank levels (sold separately).

Smart Battery Protect & Fuse Block

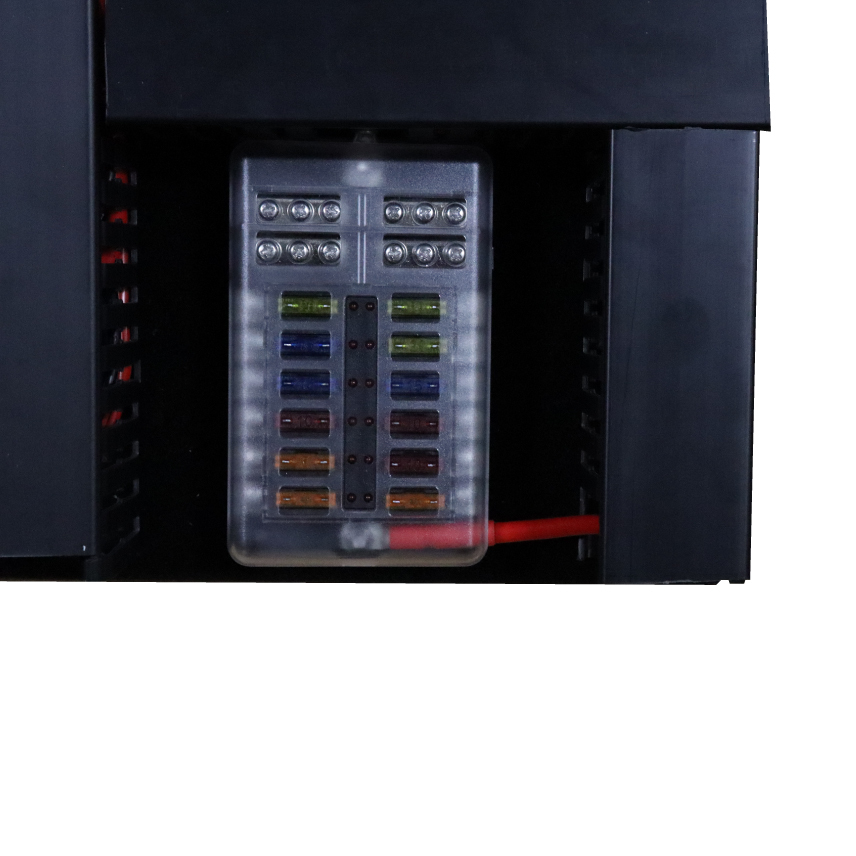

  • 12 Blade Fuse Block with Exotronic circuit breakers ensures reliable circuit management and safety.

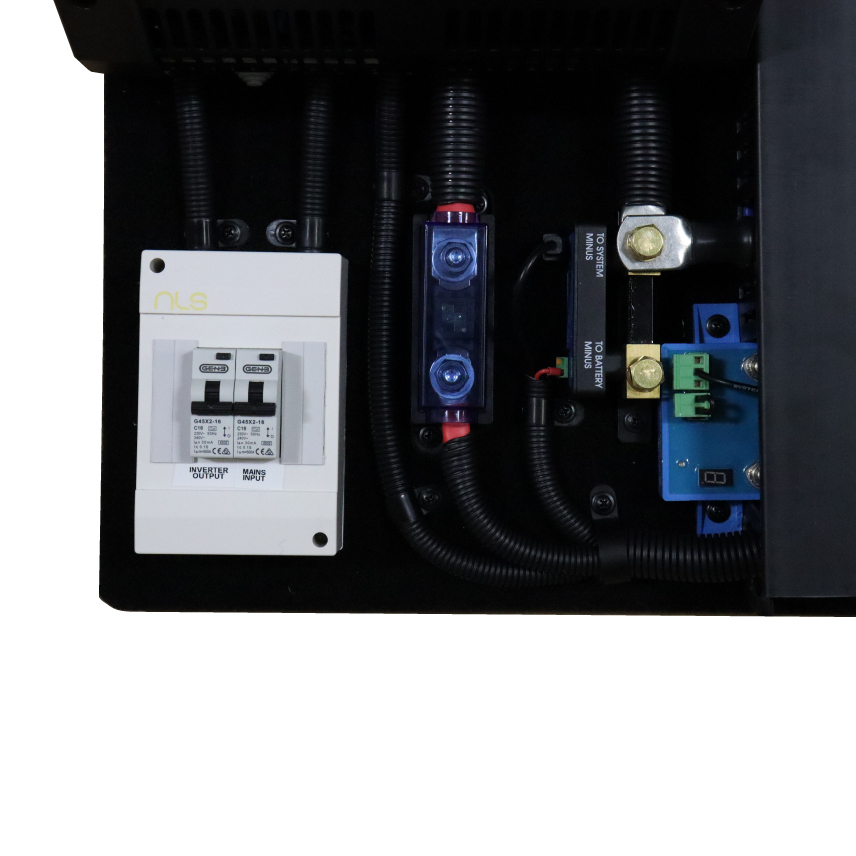

  • 400A MEGA Fuse with 70mm2 insulated power cable ensures safe high-current transmission.

Expertly Pre-Wired for Convenience

No need to spend hours troubleshooting—our pre-wired board is expertly assembled for easy installation, allowing you to get on the road faster. Detailed wiring diagrams are included to guide you through setup with ease.

Shipping & Handling

We ship Australia-wide. This power board is supplied on a pallet, so please ensure a business address or depot is provided for unloading. For home deliveries, someone must be available to assist the driver.

Why Choose the Karijini Series Pre-Wired Victron Energy Power Board?

This power board is built for the discerning van owner who values reliability and premium performance. With every component professionally wired and configured, you can trust that your power system will perform flawlessly from day one. This system is ideal for van conversions, RVs, off-grid living, caravans, and more.

Key Applications:

  • Van conversions
  • Caravans and RVs
  • Off-grid setups
  • Marine applications
  • Tiny homes

Get Ready for Hassle-Free Power!

Upgrade your van today with the Karijini Series Pre-Wired Victron Energy Power Board and enjoy seamless, reliable energy on the road. Ready to take your adventures to the next level? Order now and hit the road with confidence!

(PWB-Vic-A50X-KP)

Weight: 33kg

Dimensions: 780 x 530 x 170mm

See PDF Data Sheet for full details
