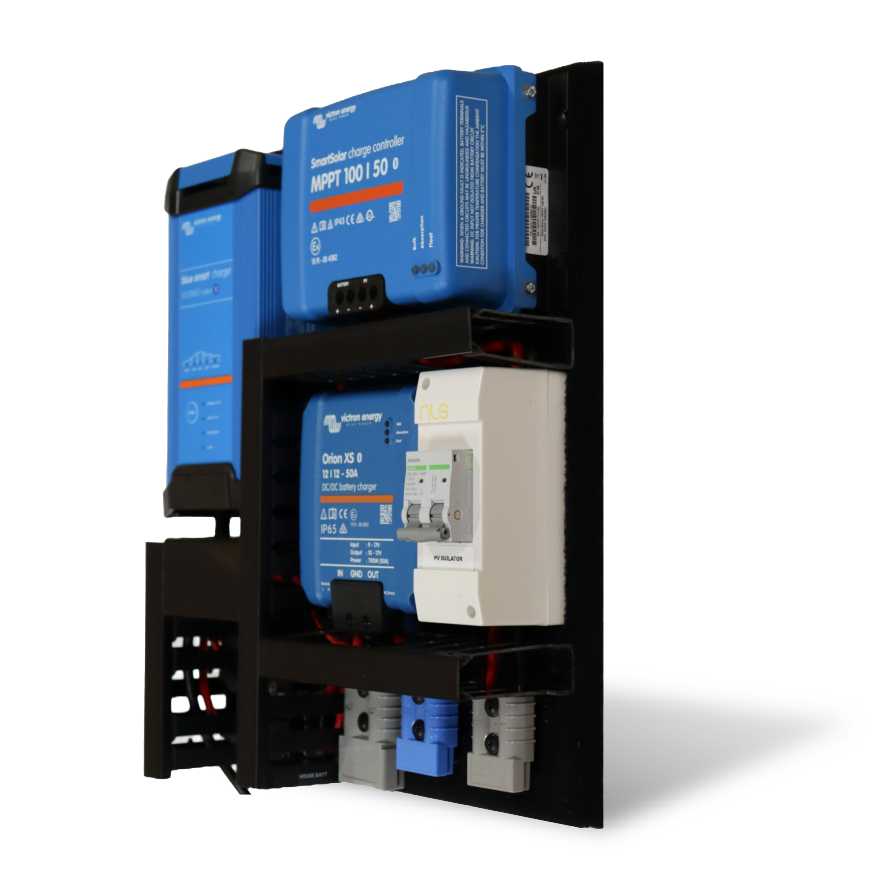

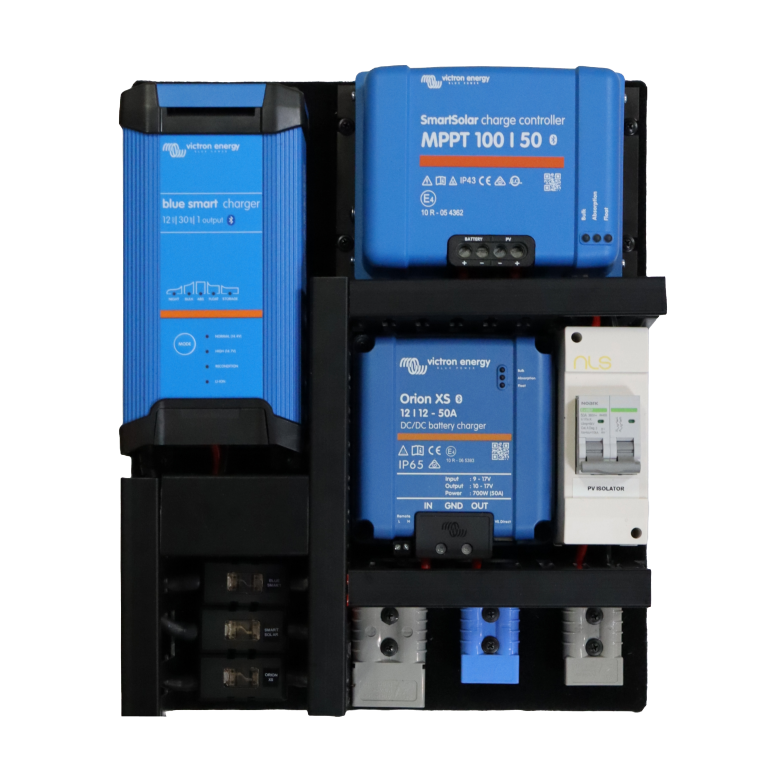

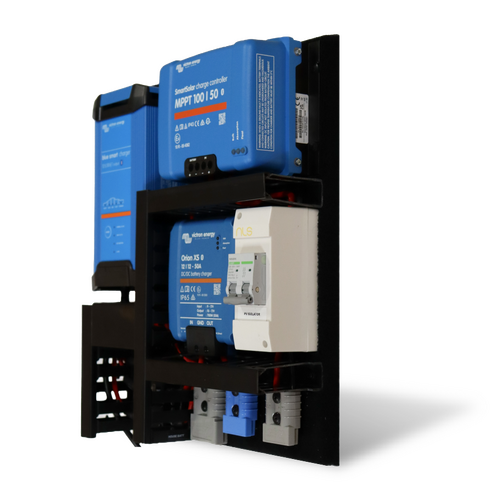

Noosa 50 Series Pre-wired Victron Board
Noosa 50 Series Pre-Wired Victron Energy Power Board: Perfect for Lithium Upgrades & Charging System Enhancements
The Noosa 50 Series Pre-Wired Victron Energy Power Board is your go-to solution for upgrading your van, RV, or off-grid setup’s charging system. Specifically designed for those transitioning to lithium batteries, this power board simplifies your energy system, ensuring faster, more efficient charging with premium Victron Energy components. Whether you're a professional installer or a DIY enthusiast, this pre-wired board takes the hassle out of installing complex electrical systems, giving you a reliable, professional-grade upgrade in no time.
Optimized Power Solution for Lithium Battery Users
Upgrading to lithium batteries or seeking a more efficient power system? The Noosa 50 Series is tailored for you. It’s pre-wired with Victron's most trusted components to ensure smooth, fast charging and battery life optimization, all in a compact, easy-to-install package.
Key Features of the Noosa 50 Series:
-

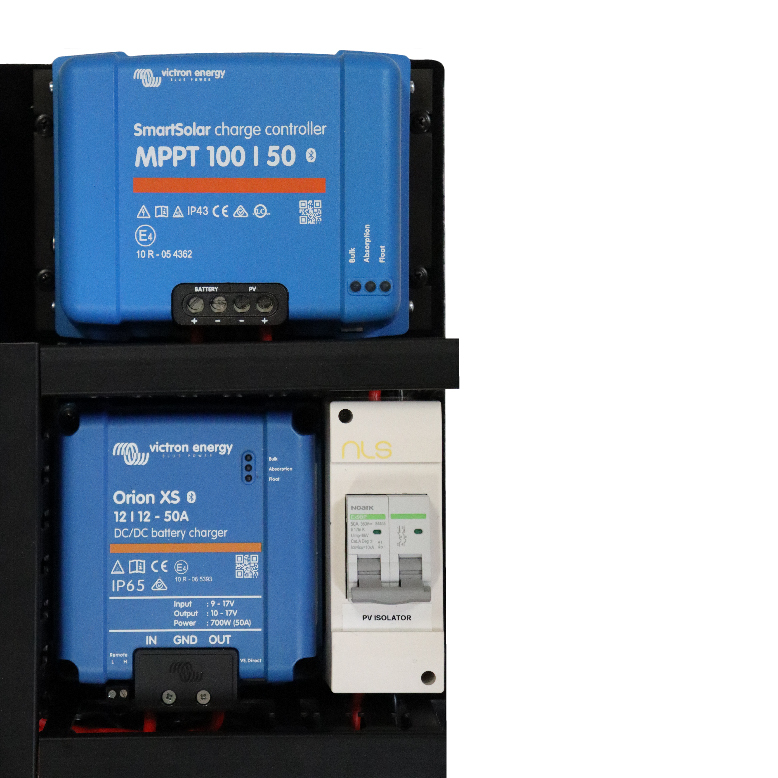

Victron 50A Orion XS DC-DC Charger
Designed to handle the unique demands of lithium batteries, the Orion XS charger extends battery life through its Adaptive Three-Step Charging technology and intelligent recovery function. Bluetooth capability allows you to remotely monitor your system. -
Victron 50A MPPT SmartSolar Controller
Maximize the efficiency of your solar panels with this smart controller. Equipped with Bluetooth and the VictronConnect app, you can easily track solar power generation in real time. -

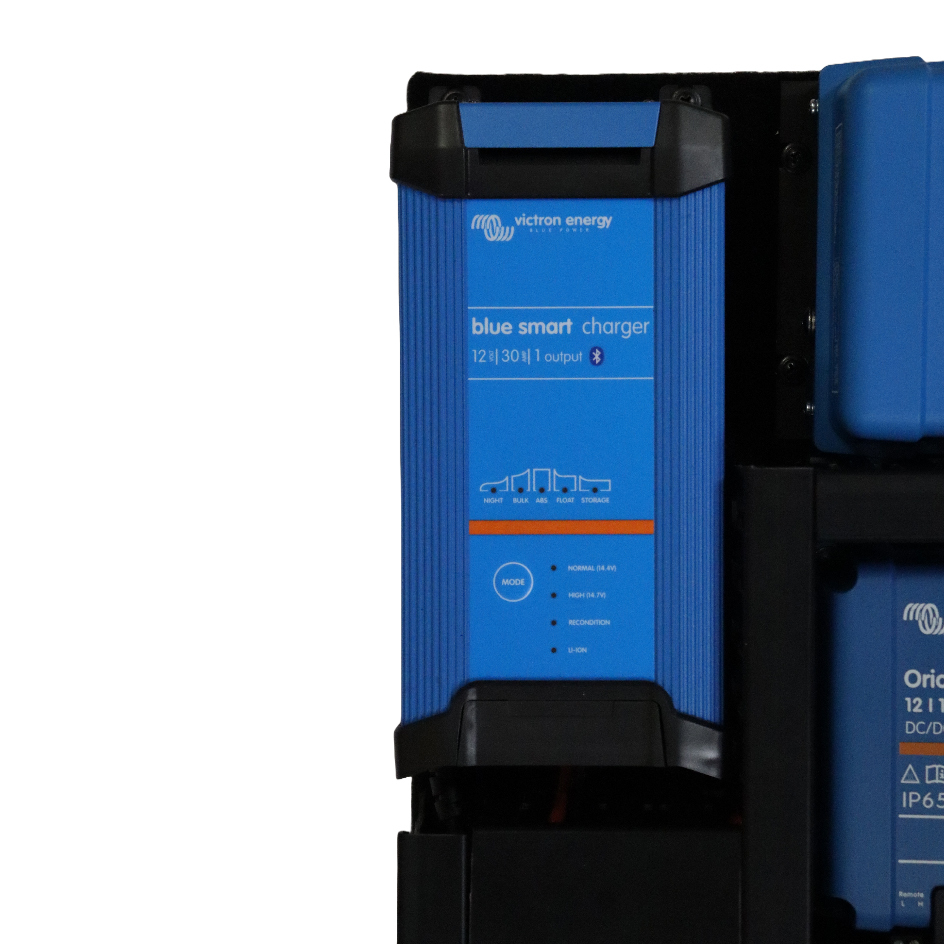

Victron Blue Smart IP22 12/30 Mains Charger
This advanced mains charger rapidly restores battery power with its three-step charging process, ensuring your batteries are always performing at their best.
Expertly Pre-Wired for a Hassle-Free Installation
With the Noosa 50 Series, we’ve taken the stress out of wiring. This board is expertly pre-wired and ready for immediate installation, cutting down on setup time and eliminating guesswork. Each component is professionally connected to ensure the most efficient energy management system possible. Plus, a detailed wiring diagram is included to guide you through any additional setup steps, making installation easier than ever.
Ideal for Van Conversions, RVs, and Off-Grid Living
Whether you're building a van conversion, upgrading your RV, or enhancing your off-grid home’s power system, the Noosa 50 Series is the perfect solution. Its compact, space-saving design makes it easy to mount under seats or beds, making the most of your limited space without sacrificing power performance.

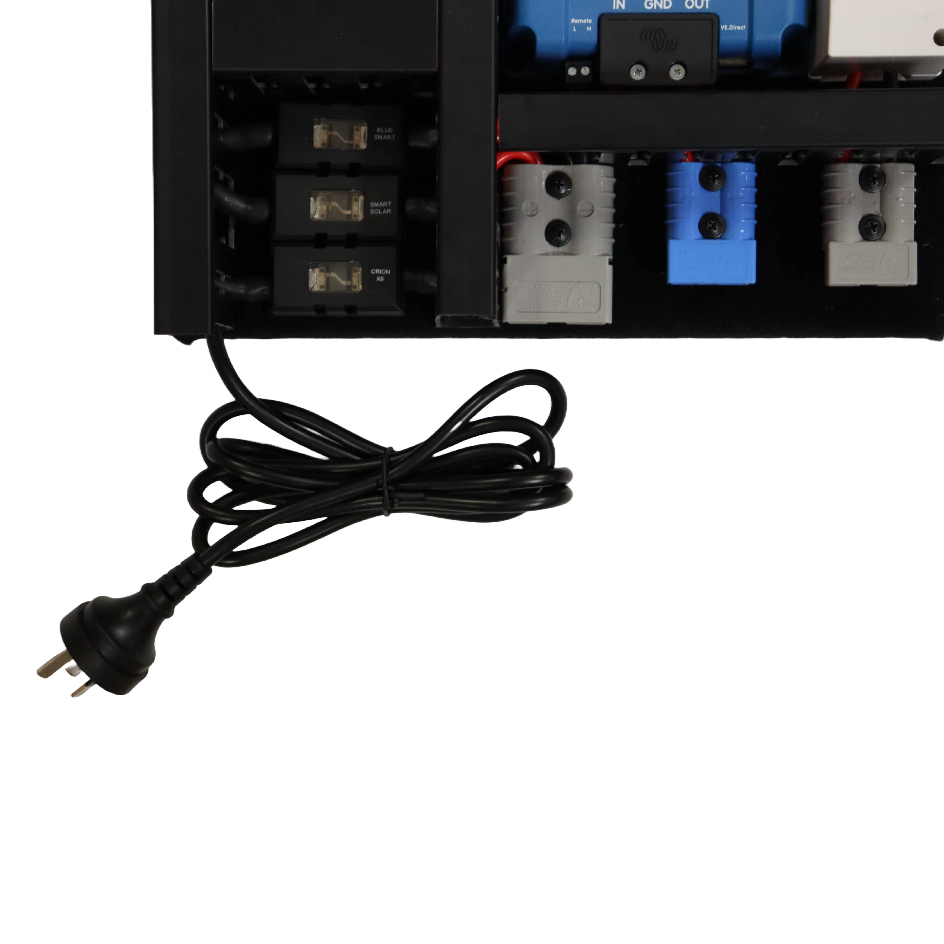

Easy Connections
- 120A Grey Anderson: Output to your house battery.
- 50A Grey Anderson: Input from your starter battery.
- 50A Blue Anderson: Input from your solar array, includes a 50A Noark PV Isolation switch for meeting safety standards.
- 240V AC Plug: Input from 230V mains.
- Genuine Anderson connectors (1x 120A Grey, 1x 50A Grey, 1x 50A Blue) included.
Key Applications:
- Van Conversions
- RVs and Caravans
- Marine Applications
Why Choose the Noosa 50 Series for Your Charging Needs?
- Professional-grade components: Only the best from Victron Energy.
- Hassle-free installation: Pre-wired for your convenience.
- Optimized for lithium: Perfect for users upgrading to lithium batteries.
- Compact design: Fits easily into small spaces, such as under a van bed or seat.
Take Control of Your Energy System Today!
Upgrade your van, RV, or off-grid setup with the Noosa 50 Series Pre-Wired Victron Energy Power Board for efficient, reliable energy management. Don't settle for a subpar charging system—choose a solution that’s professionally built to last. Order yours today and enjoy the freedom of reliable power, no matter where your adventures take you!
(PWB-Vic-C50-Nsa)
Specifications
Board DC Input Voltage |
10 – 17V |
Acceptable Battery Type |
Lithium and Lead Acid Batteries |
Minimum Battery Capacity and Current |
100Ah 100A Continuous Current |
Permitted Simultaneous Power Sources |
Solar + Mains OR Solar + DC-DC |
System Zero Load Power |
3W |
Mains Charger AC Input Voltage Range |
187 – 265VAC 45- 65Hz |
Maximum Charge Current - Mains |
30A |
Maximum Charge Current - Solar |
50A |
Maximum Charge Current - DC-DC |
50A |
Maximum Total Charge Current |
100A |
Output Absorption Voltage |
14.2V - Adjustable |
Output Float Voltage |
13.5V - Adjustable |
Solar Maximum Voltage |
100V |
Solar Array Size |
0 – 1200W (600-800W recommended) |
Solar Maximum Short Circuit Current |
60A |
Board Temperature Rating |
5C – 50C (0C – 65C storage) |
Board Portrait Dimensions |
390 x 315 x 95mm |
Board Weight |
5.7kg |
SKU | PWB-Vic-C50-Nsa |
