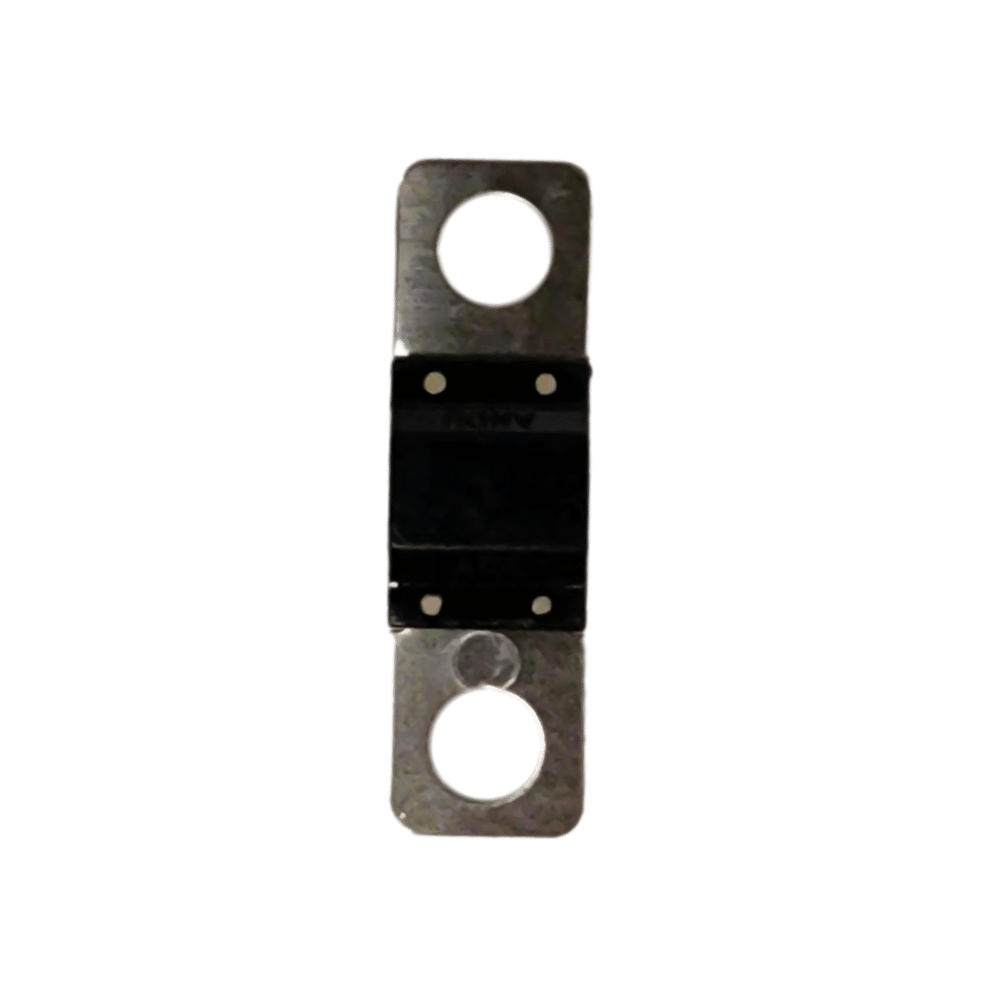

Exotronic M6 Midi/AMI/ANS Fuse 60A
| Volume Discounts: | |
|---|---|
| Buy 5 or more: | $2.90 each |
You may also need:
Exotronic Midi/AMI/ANS M6 Fuse: Precision Protection for Your Electrical Systems
Maximize safety and efficiency in your 12V, 24V, or 48V electrical systems with Exotronic Midi/AMI/ANS M6 fuses. Designed for demanding applications, these fuses offer superior durability, exceptional performance, and effortless usability.
Key Features of Exotronic Midi M6 Fuses
1. M6 Hole Size - Accommodates Larger Bolts
- Features an M6 hole size, ensuring compatibility with larger-diameter bolts for a secure and reliable connection.
- Ideal for applications requiring heavy-duty mounting solutions.
2. Built-In Inspection Window for Quick Diagnostics
- Includes a convenient inspection window, allowing you to easily check if the fuse element is blown without removing the fuse.
- Saves time and effort during troubleshooting and maintenance.
3. Tin-Plated Copper Alloy for Maximum Performance
- Made from tin-plated copper alloy for excellent conductivity and resistance to corrosion.
- Slide-on/off bolt-on design enables effortless installation and replacement.
4. Wide Amperage Range for Flexibility
- Available in ratings from 23A to 200A, suitable for a wide variety of electrical applications.
- Engineered with a low voltage drop and cold resistance for consistent performance under heavy loads.
Engineered for Demanding Environments
Exotronic Midi M6 fuses are built to excel under high-stress conditions. They provide robust circuit protection while maintaining stable operation. The compact design allows for easy integration into existing setups, making them an ideal choice for applications requiring high reliability.
Perfect for Applications Including:
- Automotive Systems: Cars, trucks, buses, and commercial fleets.
- Marine and RV Use: Boats, motorhomes, and off-grid systems.
- Industrial Applications: Heavy-duty machinery and equipment.
- Solar and Energy Systems: Off-grid power setups, inverters, and backup systems.
Why Choose Exotronic Midi/AMI/ANS M6 Fuses?
- Durable Design: Tin-plated copper alloy ensures long-lasting performance and excellent corrosion resistance.
- Versatility: Broad amperage range to cover varied electrical needs.
- User-Friendly: Simple slide-on/off design for fast, hassle-free installation.
Protect Your Circuits with Confidence
Upgrade to Exotronic Midi/AMI/ANS M6 fuses for reliable circuit protection, seamless performance, and peace of mind. Shop now and safeguard your electrical systems with the trusted precision of Exotronic!
(Exo-Fu-Mid-M6-060)
Specifications
Details |
|
| Breaking Force | 2000A@58VDC |
| Voltage Rating | 72VDC |
| Operating Temperature Range | -32C to 125C |
| Terminals | Tin Plated Copper Alloy |
| Housing Material | Nylon |

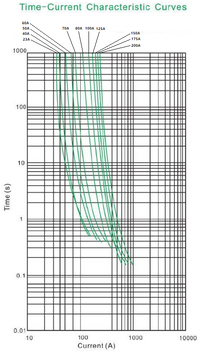

| Operating Time 23-125A | ||
| % of Rating | Minimum | Maximum |
| 100 | 100hr | ꝏ |
| 110 | 4hr | ꝏ |
| 150 | 90s | 60min |
| 200 | 3s | 100s |
| 300 | 0.3s | 3s |
| 500 | 0.1s | 1s |
| Operating Time 150-200A | ||
| % of Rating | Minimum | Maximum |
| 75 | 100hr | ꝏ |
| 200 | 1s | 15s |
| 350 | 0.3s | 5s |
| 500 | 0.1s | 1s |
Fuse Range |
||
| Part Number | Current Rating | Cold Resistance (±10%) |
| Exo-Fu-Mid-023 | 23 | 2.25mΩ |
| Exo-Fu-Mid-040 | 40 | 1.55mΩ |
| Exo-Fu-Mid-050 | 50 | 1.25mΩ |
| Exo-Fu-Mid-060 | 60 | 1.10mΩ |
| Exo-Fu-Mid-070 | 70 | 0.95mΩ |
| Exo-Fu-Mid-080 | 80 | 0.90mΩ |
| Exo-Fu-Mid-100 | 100 | 0.70mΩ |
| Exo-Fu-Mid-125 | 125 | 0.50mΩ |
| Exo-Fu-Mid-150 | 150 | 0.40mΩ |
| Exo-Fu-Mid-175 | 175 | 0.30mΩ |
| Exo-Fu-Mid-200 | 200 | 0.20mΩ |
| SKU | Exo-Fu-Mid-M6-060 |
| MPN # | Exo-Fu-Mid-M6-060 |
Warranty Statement
Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
