Exotronic Midi/AMI/ANS Fuse 23A


RRP $7.90
$3.90
SAVE $4.00 (51%)
In Stock
Exotronic logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Exotronic Midi/AMI/ANS Fuse 23A, to the majority of areas. Check your shipping details on the cart page for more information.
Volume Discounts:
Buy 5 or more: $2.90 each

You may also need:


Exotronic Midi/AMI/ANS M5 Fuse: Precision Protection for Your Electrical Systems

Ensure reliable performance and superior protection for your 12V, 24V, or 48V electrical systems with Exotronic Midi/AMI/ANS fuses. Designed for durability and efficiency, these fuses are the go-to choice for safeguarding circuits in demanding applications, offering a seamless blend of precision engineering and user-friendly features.

Key Features of Exotronic Midi Fuses

1. M5 Hole Size - Industry Standard Compatibility

  • Designed to fit most standard Midi fuse holders.
  • Makes upgrades or replacements hassle-free across a range of systems.

2. Slide-On/Off Design for Optimal Contact

  • Bolt-on design with a convenient slide-on/off mechanism for quick, tool-free handling.
  • Made from durable tin-plated copper alloy for superior conductivity and corrosion resistance.

3. Versatile Amperage Range

  • Available in 23A to 200A, offering flexibility for various applications.
  • Features low voltage drop and cold resistance for consistent performance, even in high-stress environments.

Built for Tough Environments

Exotronic Midi fuses are engineered to handle demanding conditions. They deliver robust protection and maintain stability under electrical stress, ensuring your systems remain operational without compromise. Compact and easy to install, these fuses integrate effortlessly into existing setups across diverse industries.

Perfect for Applications Like:

  • Automotive: Cars, trucks, and commercial vehicles.
  • Marine and RV: Boats, motorhomes, and off-grid living setups.
  • Industrial: Heavy-duty machinery and equipment.
  • Solar and Energy Systems: Off-grid or backup power systems.

Why Choose Exotronic Midi/AMI/ANS Fuses?

Exotronic fuses are trusted for their precise engineering, premium materials, and unwavering reliability. Whether you're managing a critical system or a personal project, Exotronic fuses deliver peace of mind and superior performance.


Safeguard Your Systems Today!

Upgrade to Exotronic Midi/AMI/ANS M5 Fuses for top-tier protection, long-lasting reliability, and performance you can count on. Protect your electrical investments now—shop Exotronic fuses today and ensure your systems operate at their best!

(Exo-Fu-Mid-023)

Specifications

Details

Breaking Force 2000A@58VDC
Voltage Rating 72VDC
Operating Temperature Range -32C to 125C
Terminals Tin Plated Copper Alloy
Housing Material Nylon

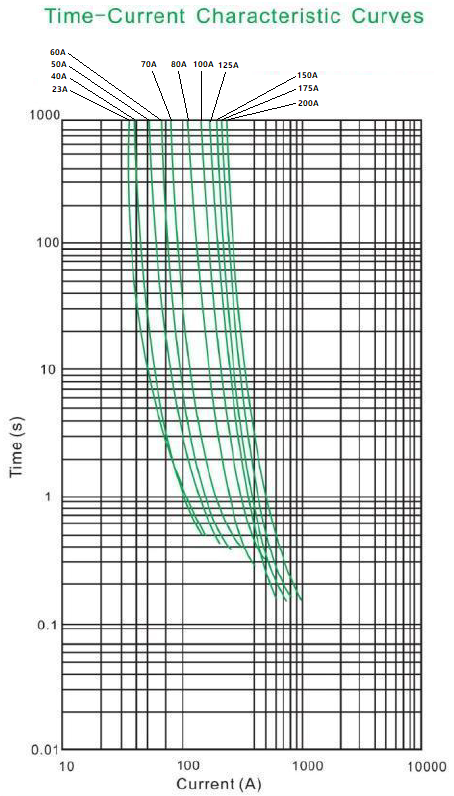

Operating Time 23-125A
% of Rating Minimum Maximum
100 100hr
110 4hr
150 90s 60min
200 3s 100s
300 0.3s 3s
500 0.1s 1s



Operating Time 150-200A
% of Rating Minimum Maximum
75 100hr
200 1s 15s
350 0.3s 5s
500 0.1s 1s



Fuse Range

Part Number Current Rating Cold Resistance (±10%)
Exo-Fu-Mid-023 23 2.25mΩ
Exo-Fu-Mid-040 40 1.55mΩ
Exo-Fu-Mid-050 50 1.25mΩ
Exo-Fu-Mid-060 60 1.10mΩ
Exo-Fu-Mid-070 70 0.95mΩ
Exo-Fu-Mid-080 80 0.90mΩ
Exo-Fu-Mid-100 100 0.70mΩ
Exo-Fu-Mid-125 125 0.50mΩ
Exo-Fu-Mid-150 150 0.40mΩ
Exo-Fu-Mid-175 175 0.30mΩ
Exo-Fu-Mid-200 200 0.20mΩ
SKU Exo-Fu-Mid-023
MPN # Exo-Fu-Mid-023

Warranty Statement

Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
