Exotronic Midi/AMI/ANS Fuse 125A
| Volume Discounts: | |
|---|---|
| Buy 5 or more: | $2.90 each |
You may also need:
Exotronic Midi/AMI/ANS M5 Fuse: Precision Protection for Your Electrical Systems
Ensure reliable performance and superior protection for your 12V, 24V, or 48V electrical systems with Exotronic Midi/AMI/ANS fuses. Designed for durability and efficiency, these fuses are the go-to choice for safeguarding circuits in demanding applications, offering a seamless blend of precision engineering and user-friendly features.
Key Features of Exotronic Midi Fuses

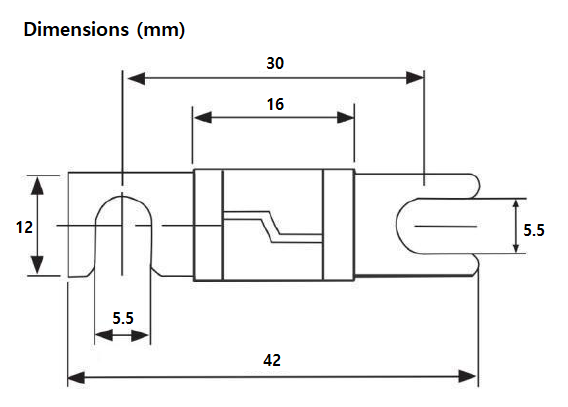

1. M5 Hole Size - Industry Standard Compatibility
- Designed to fit most standard Midi fuse holders.
- Makes upgrades or replacements hassle-free across a range of systems.
2. Slide-On/Off Design for Optimal Contact
- Bolt-on design with a convenient slide-on/off mechanism for quick, tool-free handling.
- Made from durable tin-plated copper alloy for superior conductivity and corrosion resistance.
3. Versatile Amperage Range
- Available in 23A to 200A, offering flexibility for various applications.
- Features low voltage drop and cold resistance for consistent performance, even in high-stress environments.
Built for Tough Environments
Exotronic Midi fuses are engineered to handle demanding conditions. They deliver robust protection and maintain stability under electrical stress, ensuring your systems remain operational without compromise. Compact and easy to install, these fuses integrate effortlessly into existing setups across diverse industries.
Perfect for Applications Like:
- Automotive: Cars, trucks, and commercial vehicles.
- Marine and RV: Boats, motorhomes, and off-grid living setups.
- Industrial: Heavy-duty machinery and equipment.
- Solar and Energy Systems: Off-grid or backup power systems.
Why Choose Exotronic Midi/AMI/ANS Fuses?
Exotronic fuses are trusted for their precise engineering, premium materials, and unwavering reliability. Whether you're managing a critical system or a personal project, Exotronic fuses deliver peace of mind and superior performance.
Safeguard Your Systems Today!
Upgrade to Exotronic Midi/AMI/ANS M5 Fuses for top-tier protection, long-lasting reliability, and performance you can count on. Protect your electrical investments now—shop Exotronic fuses today and ensure your systems operate at their best!
(Exo-Fu-Mid-125)
Specifications
Details |
|
| Breaking Force | 2000A@58VDC |
| Voltage Rating | 72VDC |
| Operating Temperature Range | -32C to 125C |
| Terminals | Tin Plated Copper Alloy |
| Housing Material | Nylon |

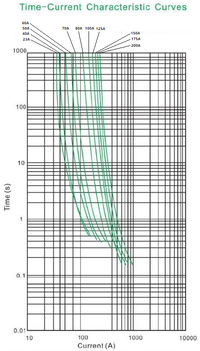

| Operating Time 23-125A | ||
| % of Rating | Minimum | Maximum |
| 100 | 100hr | ꝏ |
| 110 | 4hr | ꝏ |
| 150 | 90s | 60min |
| 200 | 3s | 100s |
| 300 | 0.3s | 3s |
| 500 | 0.1s | 1s |
| Operating Time 150-200A | ||
| % of Rating | Minimum | Maximum |
| 75 | 100hr | ꝏ |
| 200 | 1s | 15s |
| 350 | 0.3s | 5s |
| 500 | 0.1s | 1s |
Fuse Range |
||
| Part Number | Current Rating | Cold Resistance (±10%) |
| Exo-Fu-Mid-023 | 23 | 2.25mΩ |
| Exo-Fu-Mid-040 | 40 | 1.55mΩ |
| Exo-Fu-Mid-050 | 50 | 1.25mΩ |
| Exo-Fu-Mid-060 | 60 | 1.10mΩ |
| Exo-Fu-Mid-070 | 70 | 0.95mΩ |
| Exo-Fu-Mid-080 | 80 | 0.90mΩ |
| Exo-Fu-Mid-100 | 100 | 0.70mΩ |
| Exo-Fu-Mid-125 | 125 | 0.50mΩ |
| Exo-Fu-Mid-150 | 150 | 0.40mΩ |
| Exo-Fu-Mid-175 | 175 | 0.30mΩ |
| Exo-Fu-Mid-200 | 200 | 0.20mΩ |
| SKU | Exo-Fu-Mid-125 |
| MPN # | Exo-Fu-Mid-125 |
Warranty Statement
Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
