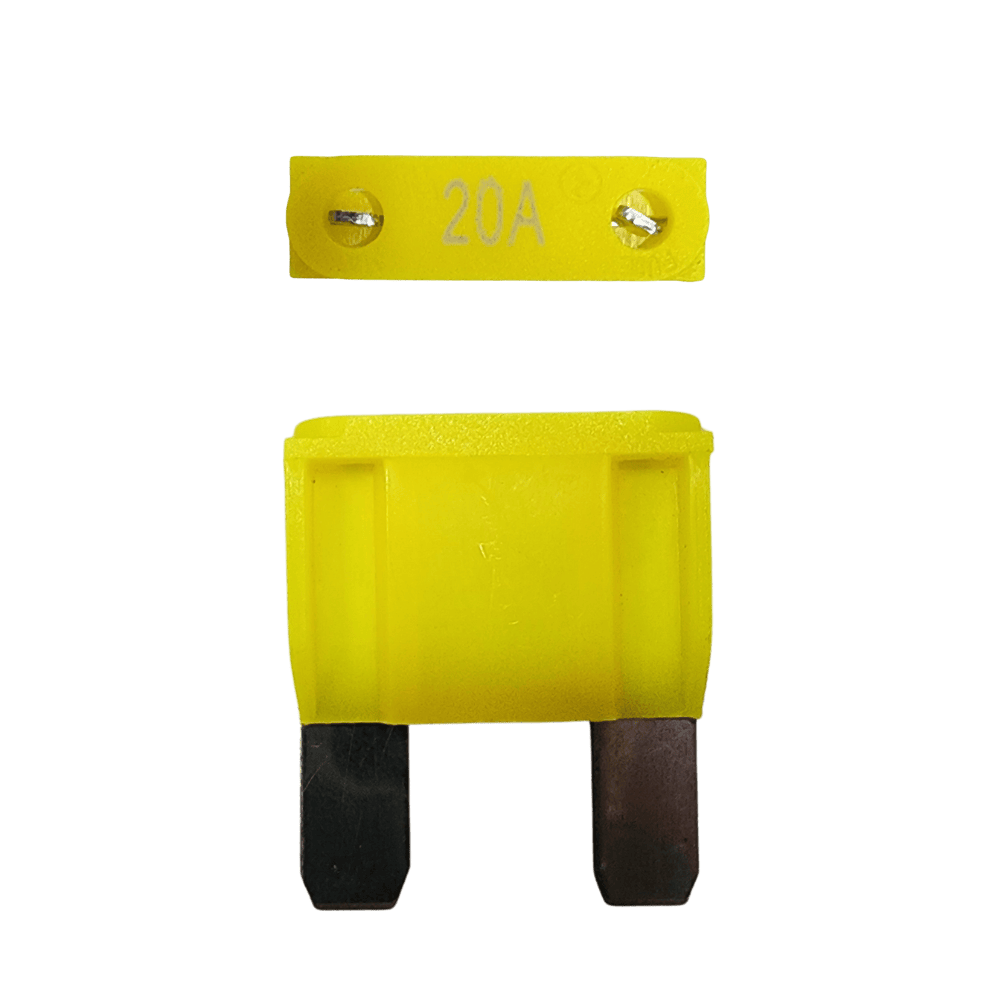

Exotronic Maxi Blade Fuse 20A
You may also need:
Exotronic Maxi (Large) Blade Fuse: The Optimal Automotive Fuse Choice
Ensure the safety and efficiency of your automotive electrical systems with our Maxi Blade Fuses. Designed as a superior car fuse/auto fuse/caravan fuse, these auto fuses provide a reliable solution to protect your circuits from overcurrent, enhancing your vehicle's performance.
Fast and Reliable Operation for Safety
Our automotive blade fuses offer a rapid response to overcurrent scenarios, operating as quickly as 0.04 seconds for 600% of the rated current. Their ability to break at 1000A at 32VDC makes them a solid choice for maintaining the safety of your electrical system.
High-Quality Fuse Construction
Composed of Silver Plated Zinc Alloy terminals and sturdy Nylon housing, these fuses offer exceptional durability and corrosion resistance. Capable of operating within a wide temperature range of -32C to 200C, they ensure consistent performance across diverse conditions.
Nylon: The Preferred Material for Diverse Fuse Applications
Nylon's unique combination of properties makes it an ideal choice for the housing of fuses. Known for its exceptional chemical resistance, Nylon withstands exposure to a wide range of substances, thereby ensuring fuse longevity even in harsh conditions. It also boasts impressive dielectric strength, meaning it's highly resistant to electric stress, a crucial factor for high-voltage fuses.
In addition, Nylon's notable tensile strength and toughness provide robust mechanical protection, safeguarding the fuse from physical damages.
Convenient Test Points: Simplifying Diagnostics in Fuse Applications
Our fuses are designed with integrated test points, providing a practical and efficient solution for diagnostics. This feature allows for easy and direct testing of the circuit without the need to remove the fuse, simplifying maintenance routines and enhancing safety. By checking these test points with a multimeter, you can quickly assess if your fuse is functioning correctly or if it needs replacement, thereby ensuring the optimal performance and longevity of your electrical system.
Standards Compliance for Peace of Mind
Our blade fuses comply with SAEJ2077, ISO 8820, and UL248 Special Purpose Fuses standards. You can trust their quality and safety, knowing they meet these rigorous standards.

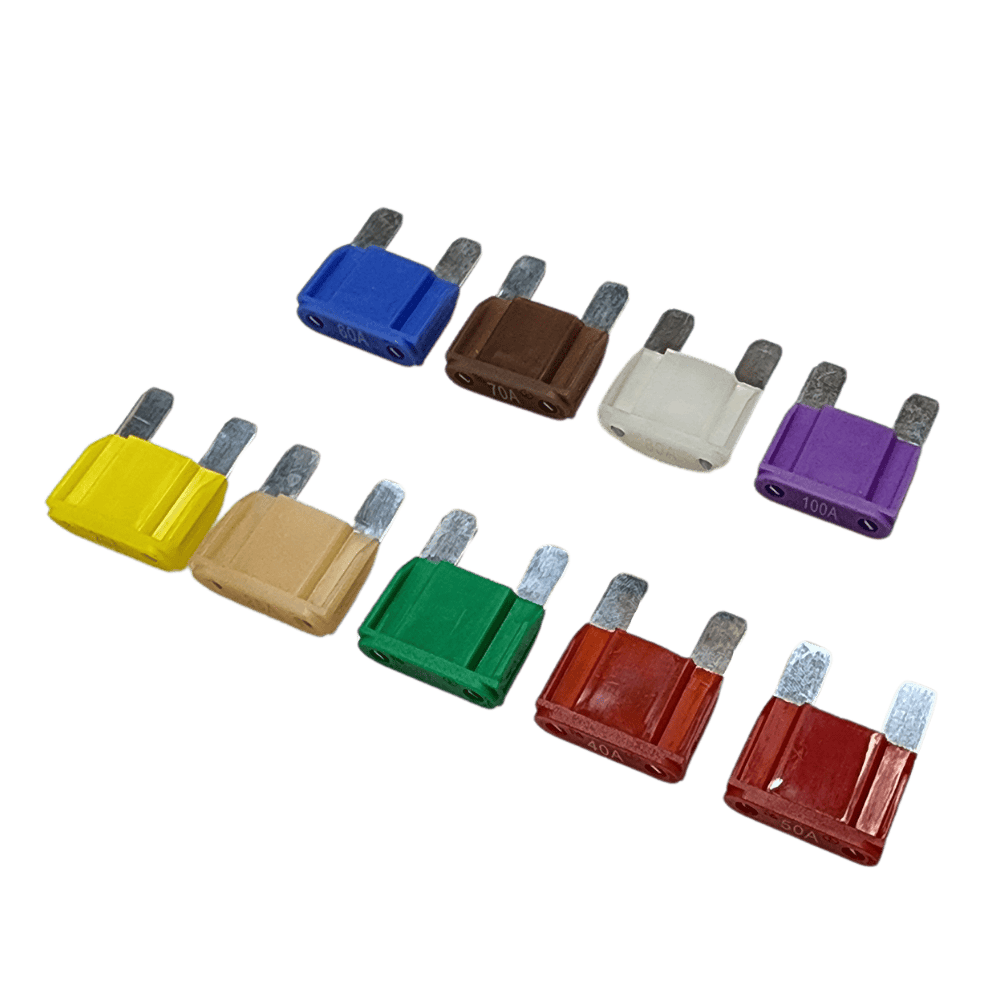

Fuse Range for Varied Needs
We offer a comprehensive range of Maxi blade fuses from 20A to 100A with different cold resistance values and distinct colours for easy identification. Whether you're replacing a car fuse, caravan fuse, or any other automotive fuse, choose the perfect fit for your specific requirements.
(Exo-Fu-Max-020)
Specifications
Details |
|
| Breaking Force | 1000A@32VDC |
| Voltage Rating | 32VDC |
| Operating Temperature Range | -32C to 200C |
| Terminals | Silver Plated Zinc Alloy |
| Housing Material | Nylon |
| Standards Compliance | SAEJ2077 ISO 8820 UL248 Special Purpose Fuses |
Operating Time |
||
| % of Rating | Minimum | Maximum |
| 100 | 100hr | ꝏ |
| 135 | 10s | 30min |
| 200 | 2s | 60s |
| 350 | 0.2s | 7s |
| 600 | 0.04s | 1s |
Fuse Range |
|||
| Part Number | Current Rating | Cold Resistance (±10%) | Colour |
| Exo-Max-NL-020 | 20 | 3.90mΩ | Yellow |
| Exo-Max-NL-025 | 25 | 3.20mΩ | Tan |
| Exo-Max-NL-030 | 30 | 2.60mΩ | Green |
| Exo-Max-NL-040 | 40 | 2.00mΩ | Orange |
| Exo-Max-NL-050 | 50 | 1.67mΩ | Red |
| Exo-Max-NL-060 | 60 | 1.20mΩ | Blue |
| Exo-Max-NL-070 | 70 | 1.10mΩ | Brown |
| Exo-Max-NL-080 | 80 | 1.05mΩ | White |
| Exo-Max-NL-100 | 100 | 0.98mΩ | Purple |
| SKU | Exo-Fu-Max-020 |
| MPN # | Exo-Fu-Max-020 |
Warranty Statement
Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
