Exotronic Coorong Series Pre-wired Victron Board - Landscape

3000VA + Mains 120A + Solar 50A + DC-DC 30A

RRP $5,696.00
$4,599.00
SAVE $1,097.00 (19%)
In stock at Victron Warehouse Victoria
Please allow 2 business days before dispatch
Normally in stock for immediate dispatch but please contact us for availability.
Exotronic logo

Available Options

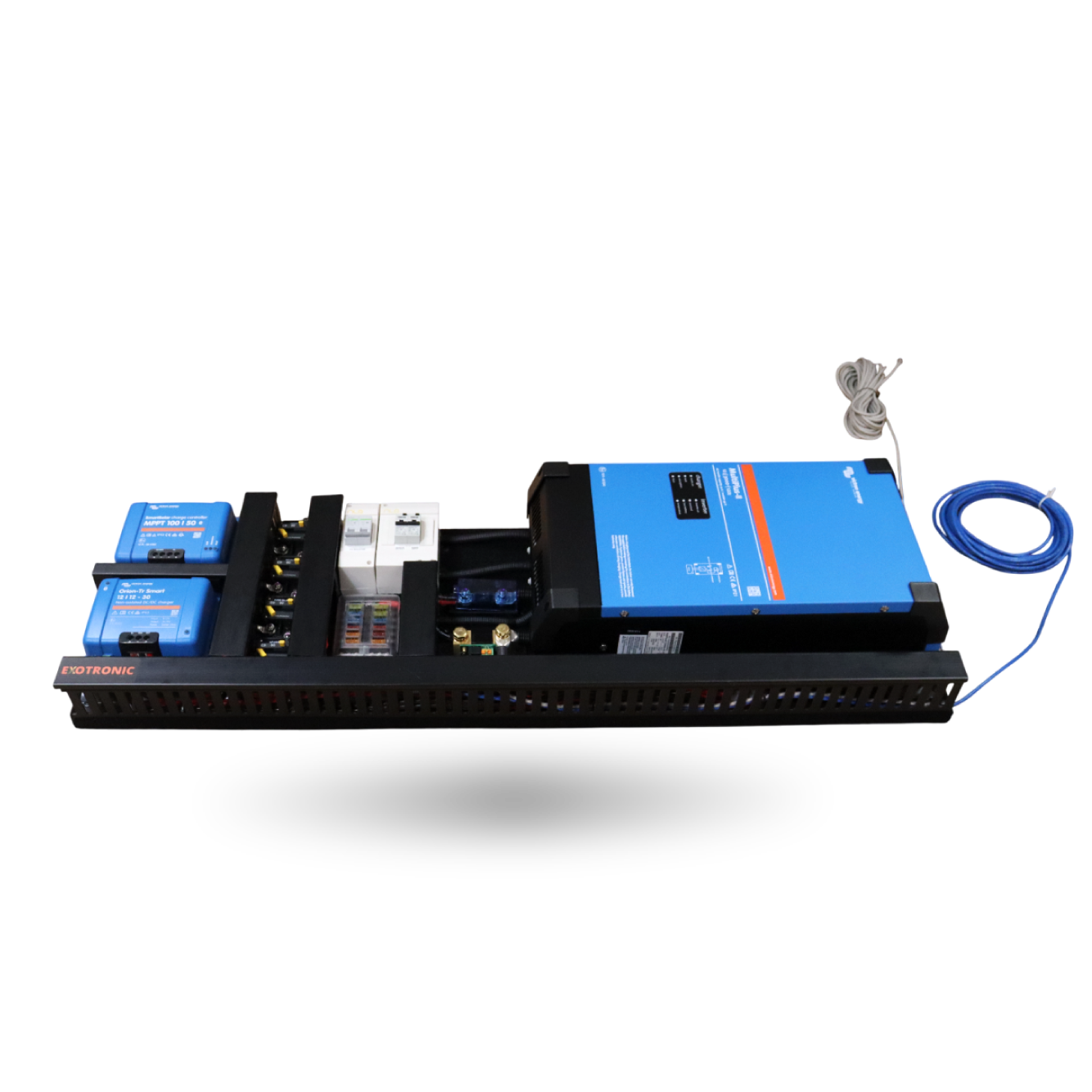

Introducing the Coorong Series Pre-Wired Victron Energy Power Board (Landscape Layout) for Van Conversions

Unlock the full potential of your van with our state-of-the-art, pre-wired Victron Energy Power Board. This all-in-one solution is not only premium in quality but is designed to save you effort, time, and costs associated with a custom build.

Optimal Flexibility & Placement

Perfectly designed for wall or floor mounting, it can be conveniently placed under a van bed or bench seat for maximum space utilization.

What’s Included in this Comprehensive Package?

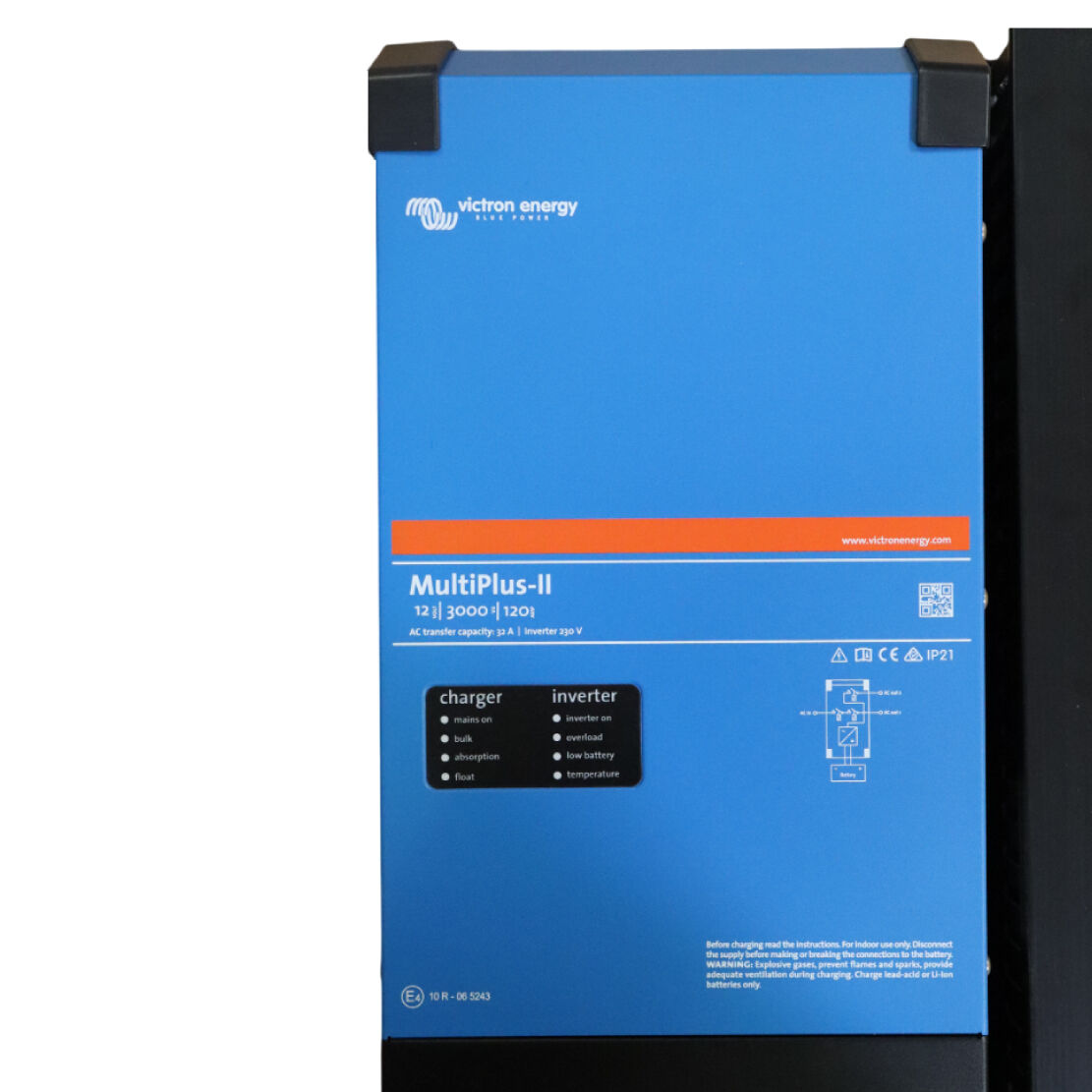

  • Victron 3000VA MultiPlus-II Inverter

    • Power virtually any 10A appliance with the robust 3000VA inverter.
    • 120A mains charger for rapid charging from the grid.
    • Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
    • Safety switch circuit protection for added security in both incoming and outgoing inverter circuits

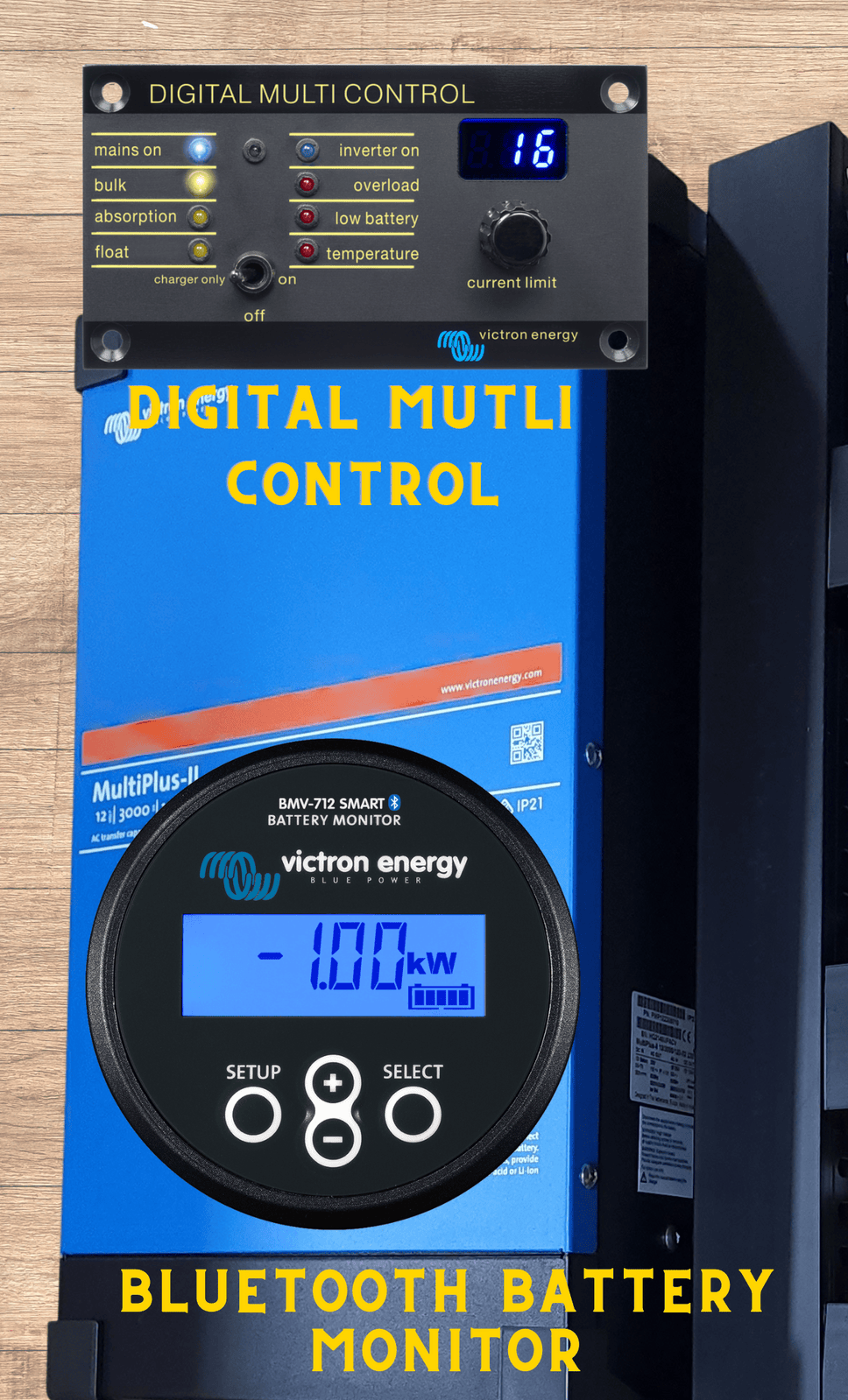

    • Also including Victron Digital Multi Control (Remote On/Off/Charger Only switch) and 9m of cable from the board to allow control of the inverter remotely

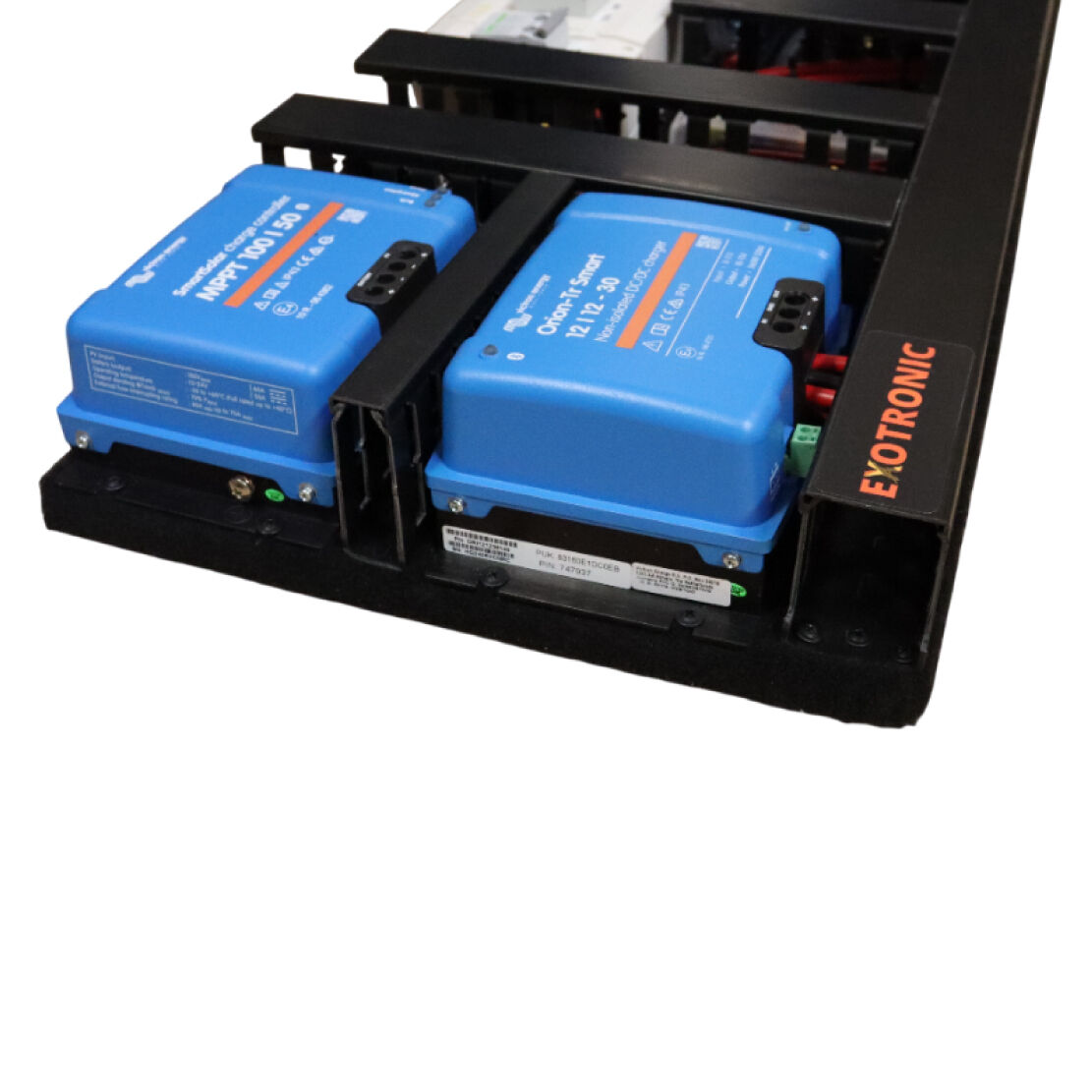

  • Victron 50A MPPT SmartSolar Controller (Bluetooth Enabled)

    Connect effortlessly to solar panels with a red Anderson connector for optimized solar energy harnessing. (Genuine red Anderson supplied)

  • Victron 30A DC-DC Charger (Bluetooth Enabled, Non-Isolated)

    Compatible with smart alternators for seamless connection to the starter battery using a grey Anderson connector. (Genuine grey Anderson supplied)

  • Victron BMV-712 Battery Monitor (Bluetooth)

    Stay informed with real-time data on your house battery's state of charge, current in/out, voltage, and set audible alarms for low levels.
    9m of cable from the board to the display included

  • Fuse Block & Circuit Breakers

    Incorporates a 12 Blade Fuse Block with Exotronic circuit breakers and cables for enhanced protection and circuit management and oversized cables for low loss performance.

  • 400A MEGA Fuse and 70mm2 Double Insulated Power Cable

    For high current capacity and safety, essential for the inverter.

Expertly Pre-Wired for Your Convenience

Save time and avoid the hassle with our expertly pre-wired board. This ensures a reliable and efficient setup, helping you avoid costly mistakes and get on the road faster.

Comprehensive Documentation

Comes with a detailed board wiring diagram including example external wiring to guide you through a seamless installation process.

Shipping & Handling

Available for shipping Australia-wide. The unit is supplied on a pallet. Please note the driver will not unload, so a business address or depot must be provided. A home address is acceptable if someone will be available to unload.

Why Choose Our Pre-Wired Victron Energy Power Board?

Our solution is meticulously designed for the discerning van owner who seeks a premium, reliable, and hassle-free power system. By choosing our pre-wired board, you invest in peace of mind, knowing that every component is expertly configured for optimal performance and safety.

Customer Support

Our dedicated customer support is here to assist you with any queries or issues. We stand by the quality of our product and are committed to ensuring your complete satisfaction.

(PWB-Vic-AL)

Weight: 33kg

Dimensions: 530 x 750 x 170mm

See PDF Data Sheet for full details

SKU PWB-Vic-AL

Victron Energy Limited Warranty Policy


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.


During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.


This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.


Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.


Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.


Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.


As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.


Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.


Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.


Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.


For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
