Exotronic ANL Fuse 60A


RRP $12.90
$7.90
SAVE $5.00 (39%)
In Stock
Exotronic logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Exotronic ANL Fuse 60A, to the majority of areas. Check your shipping details on the cart page for more information.
Volume Discounts:
Buy 5 or more: $6.99 each

You may also need:

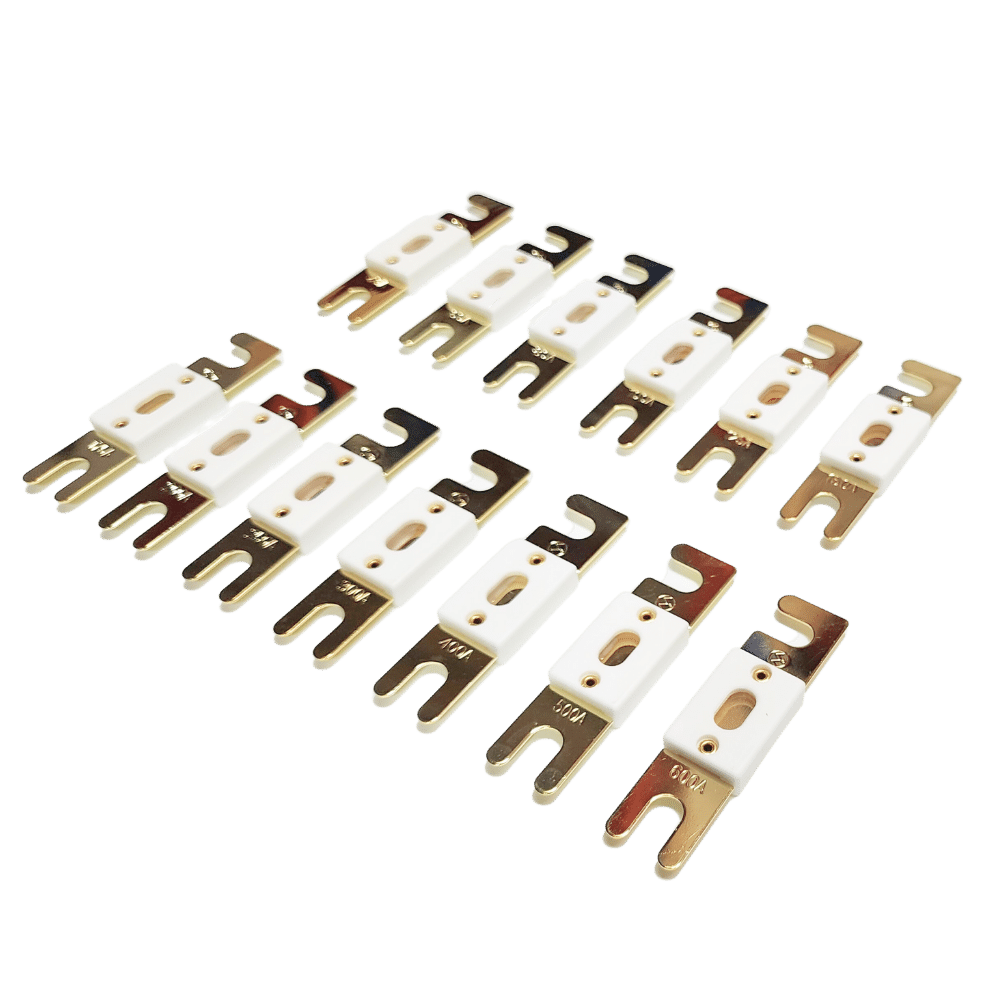

Exotronic ANL Fuse: Superior Protection for Your Electrical Systems

Enhance the safety and efficiency of your electrical systems with the Exotronic ANL Fuse. This robust and reliable fuse is specifically designed to protect electrical circuits up to 125VDC, ensuring reliable operation and effective current limitation.

High Breaking Force and Temperature Range

Our Exotronic ANL Fuses offer a high breaking force of 6000A@58VDC, providing reliable protection in overcurrent scenarios, ideal for large lithium battery banks. They are designed to operate within a wide temperature range of -32C to 125C, ensuring consistent performance across diverse conditions.

Quality Material for Optimal Performance

Constructed from gold-plated copper alloy terminals and a ceramic housing, these fuses offer exceptional durability, electrical conductivity, and heat resistance. The bolt-on, slide on/off style allows for easy installation and removal, enhancing the maintenance efficiency of your electrical system.

Versatile Fuse Range for Various Applications

Exotronic ANL Fuses are available in a range of current ratings from 40A to 600A, ensuring the right fit for your specific needs. Whether you're working with automotive electronics, household appliances, or other high-current applications, these fuses provide reliable and efficient protection for your electrical circuits.

Choose Exotronic ANL Fuses for dependable protection of your electrical circuits. Experience the blend of precision, quality, and reliability that only Exotronic can deliver.

(Exo-Fu-ANL-060)

Specifications

Details

Breaking Force 6000A@58VDC
Voltage Rating 125VDC
Operating Temperature Range -32C to 125C
Terminals Gold plated copper alloy
Housing Material Ceramic



Operating Time 40-200A

% of Rating Minimum Maximum
150 1hr
220 2s 60s
250 0.8s 10s
400 0.2s 2s



Operating Time 250-600A

% of Rating Minimum Maximum
160 60s
220 2s 60s
250 0.8s 10s
400 0.2s 2s



Fuse Range

Part Number Current Rating
Exo-Fu-ANL-040 40
Exo-Fu-ANL-060 60
Exo-Fu-ANL-080 80
Exo-Fu-ANL-100 100
Exo-Fu-ANL-125 125
Exo-Fu-ANL-150 150
Exo-Fu-ANL-175 175
Exo-Fu-ANL-200 200
Exo-Fu-ANL-250 250
Exo-Fu-ANL-300 300
Exo-Fu-ANL-400 400
Exo-Fu-ANL-500 500
Exo-Fu-ANL-600 600
SKU Exo-Fu-ANL-060
MPN # Exo-Fu-ANL-060

Warranty Statement

Exotronic warrants its accessories, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
