3m Exotronic 4mm² Twin MC4 Compatible Solar Extension Cable
You may also need:

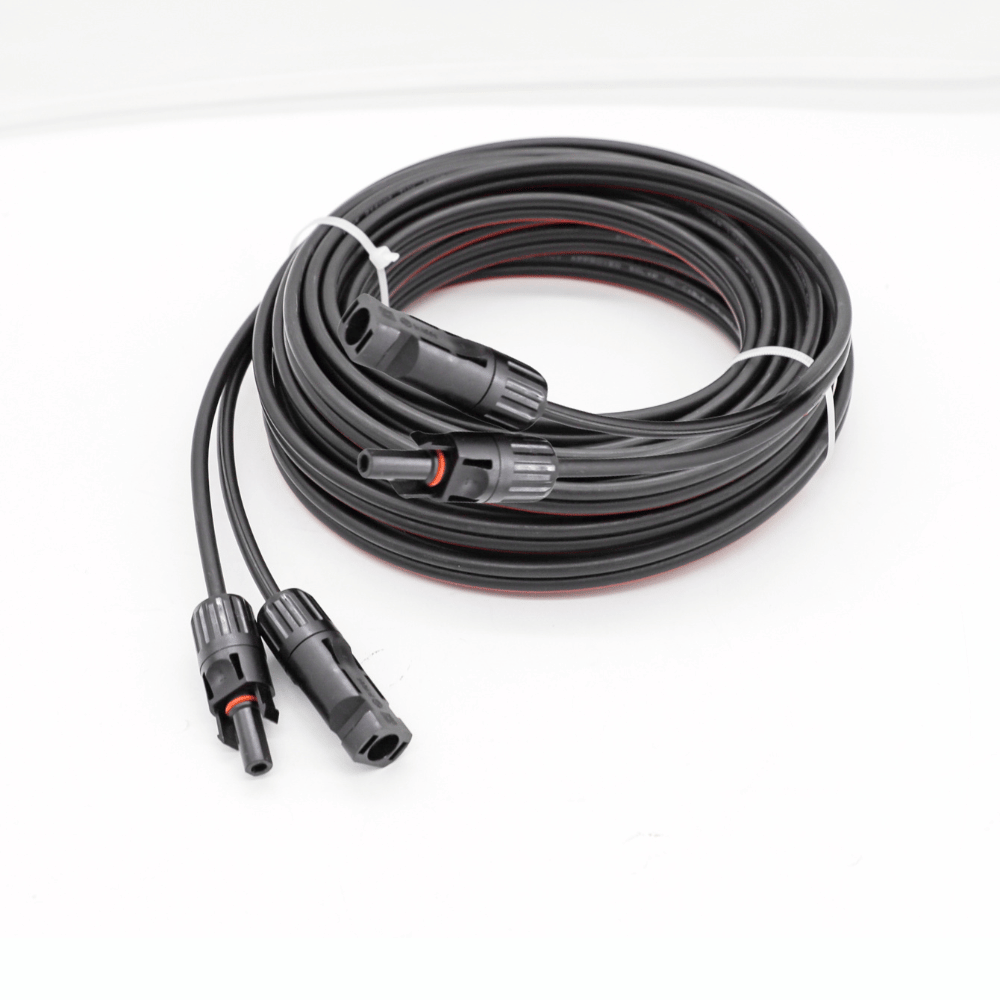

3m Exotronic 4mm2 Twin MC4 Compatible Extension Cable
Elevate your solar energy system with the Exotronic 4mm² Twin MC4 Compatible Extension Cable. Designed for a seamless connection, this 3-metre extension cable is the ultimate solution for expanding your solar setup with ease and flexibility. With its robust design and MC4 compatibility, it's tailored to extend the reach of your solar panel connections effectively.
Key Features:
- MC4 Compatibility: Outfitted with universal MC4 connectors, this cable delivers a reliable and consistent connection with a variety of solar panels and photovoltaic devices.
- Superior Conductivity: The 4mm² twin-core cable is optimized for low resistance and high conductivity, ensuring efficient power transmission.
- Tailored Length: The 3-metre extension is perfectly sized to enhance the placement and arrangement of your solar panels, allowing for optimal sunlight absorption.
- Durable Construction: Shielded by a robust insulating layer, the cable is built to endure environmental stresses like UV exposure and inclement weather.
- Straightforward Installation: Pre-installed MC4 connectors make for a hassle-free setup, integrating smoothly into your current solar power system without additional tools.
- Quality Materials: Crafted from premium components, the cable stands up to outdoor conditions, guaranteeing longevity and consistent operation.
Versatile Use:
This Exotronic extension cable is crafted to accommodate a diverse array of solar energy applications:
- Extending Roof Solar Cables: Perfect for adding an extra panel to your roof setup using a branch connector, this cable bridges the gap with ease.
- Portable Solar Solutions: Ideal for lengthening portable solar cable leads, it enhances the usability of mobile solar units.
- Marine Applications: For marine enthusiasts, it's the go-to choice for connecting removable solar panels to a bimini or similar structures.
Additionally, the cable's adaptable design allows for it to be conveniently split down the middle, offering greater installation flexibility to meet your specific solar energy needs. Whether it's for industrial,marine or mobile installations, the Exotronic 4mm² Twin MC4 Compatible Extension Cable is versatile enough to tackle a wide range of application requirements, making it an essential component of any solar power system.
(Exo-4-MDC-03)
Specifications MC4
| Specification | Details |
|---|---|
| Waterproof and Dustproof (Mated) | IP67 |
| Waterproof and Dustproof (Unmated) | IP2X |
| Rated Voltage | 1000V DC (IEC) |
| Contact Material | Tinned Copper |
| Insulation Material | PC/PPO |
| Contact Material | Copper Alloy, Tin Plated |
| Temperature Range | –40°C to +90°C (IEC) |
| Upper Temperature Limit | +105°C (IEC) |
| Degree of Protection (Mated) | IP67 |
| Degree of Protection (Unmated) | IP2X |
| Flame Class | UL94-V0 |
| Locking System | Snap-in |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Test Voltage | 6kV (50Hz, 1min) |
| Salt Mist Spray Test, Severity Degree | 5 (according to IEC 60068-2-52) |
| Rated Current | 30A |
| Connector System | Ø 4 mm |
| SKU | Exo-4-MDC-03 |
| MPN # | Exo-4-MDC-03 |
