Exotronic 24V 200W Portable Folding Solar Panel - No Controller
You may also need:
Exotronic Foldable 24V 200W Portable Solar Solution

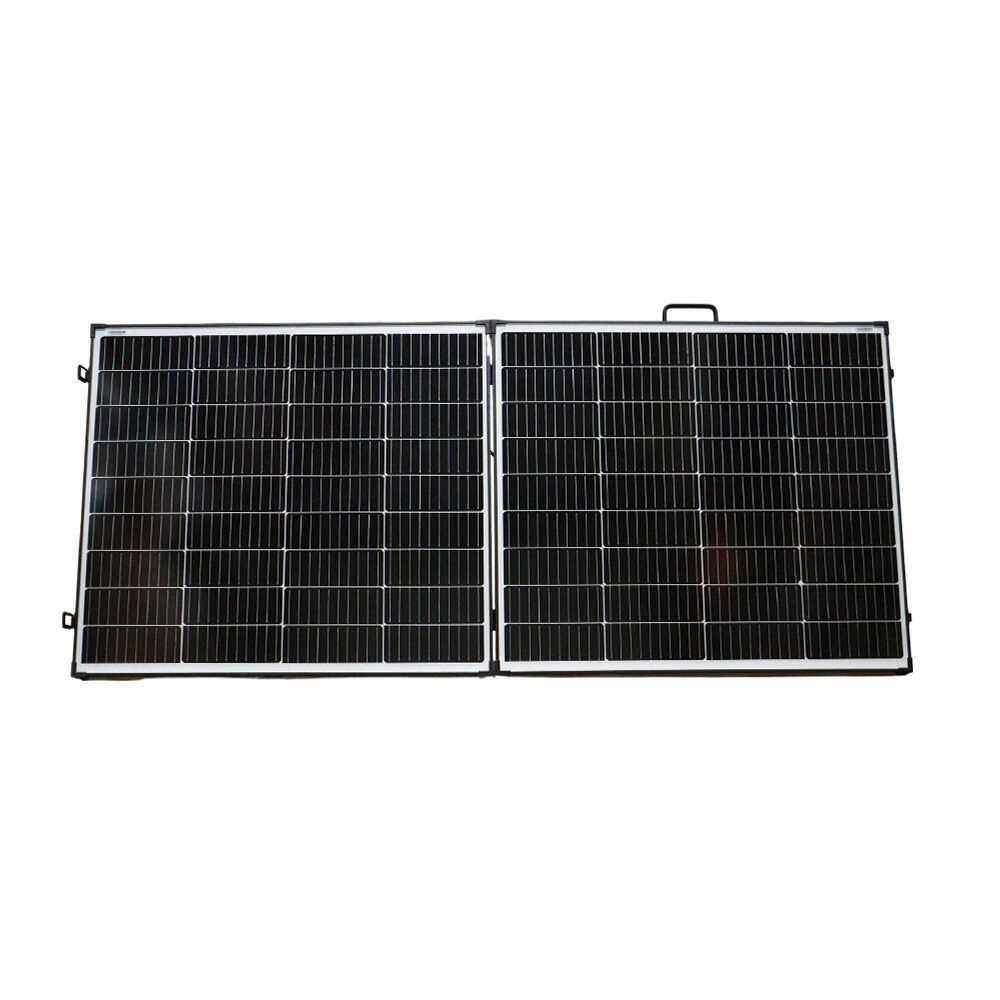

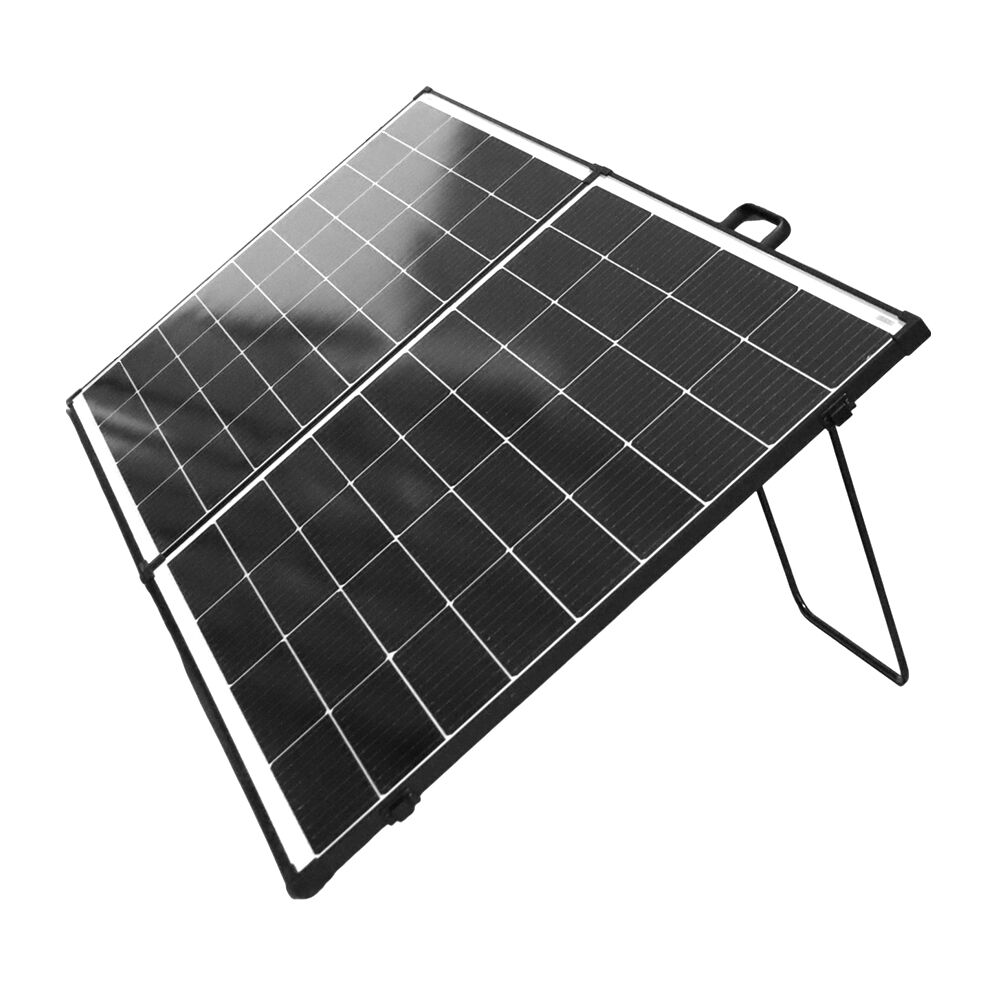

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution. The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.
Easy Setup and Transport
Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

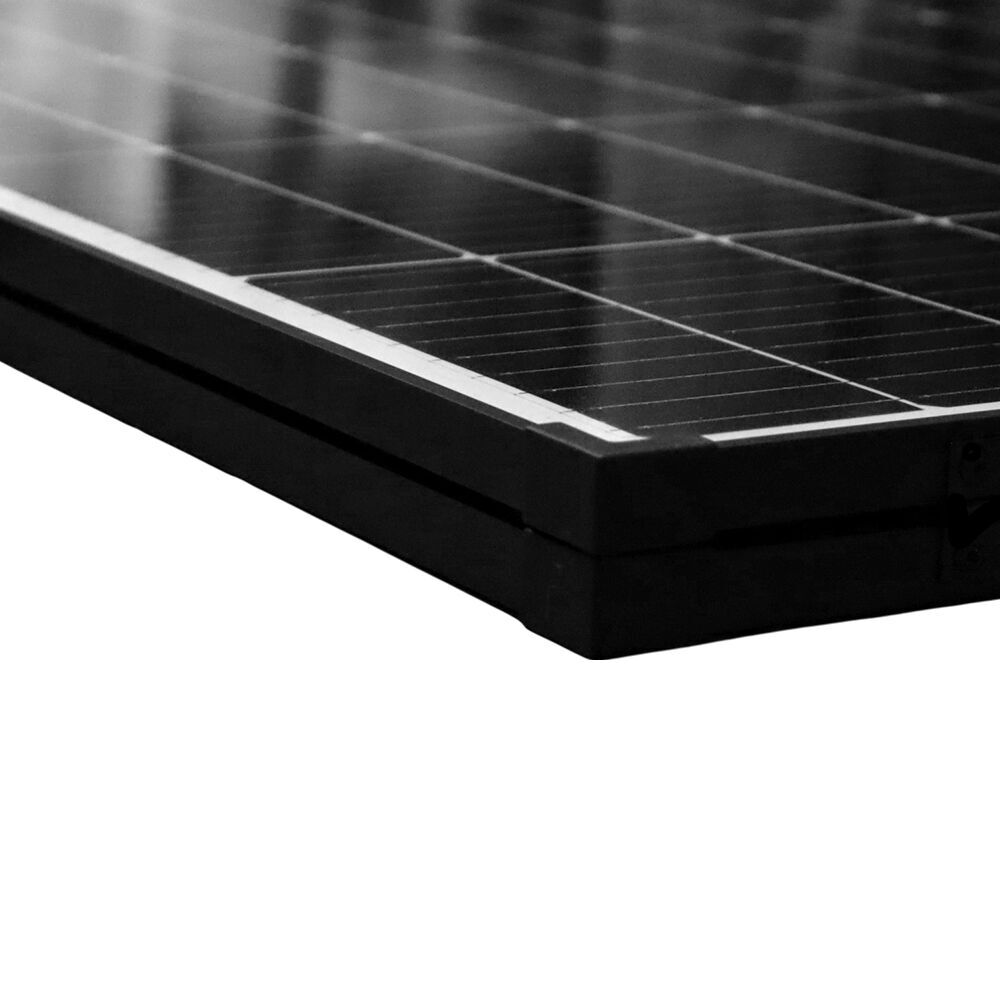

These modules include bumpers on the corners and fold-away legs,
Premium Cable Set

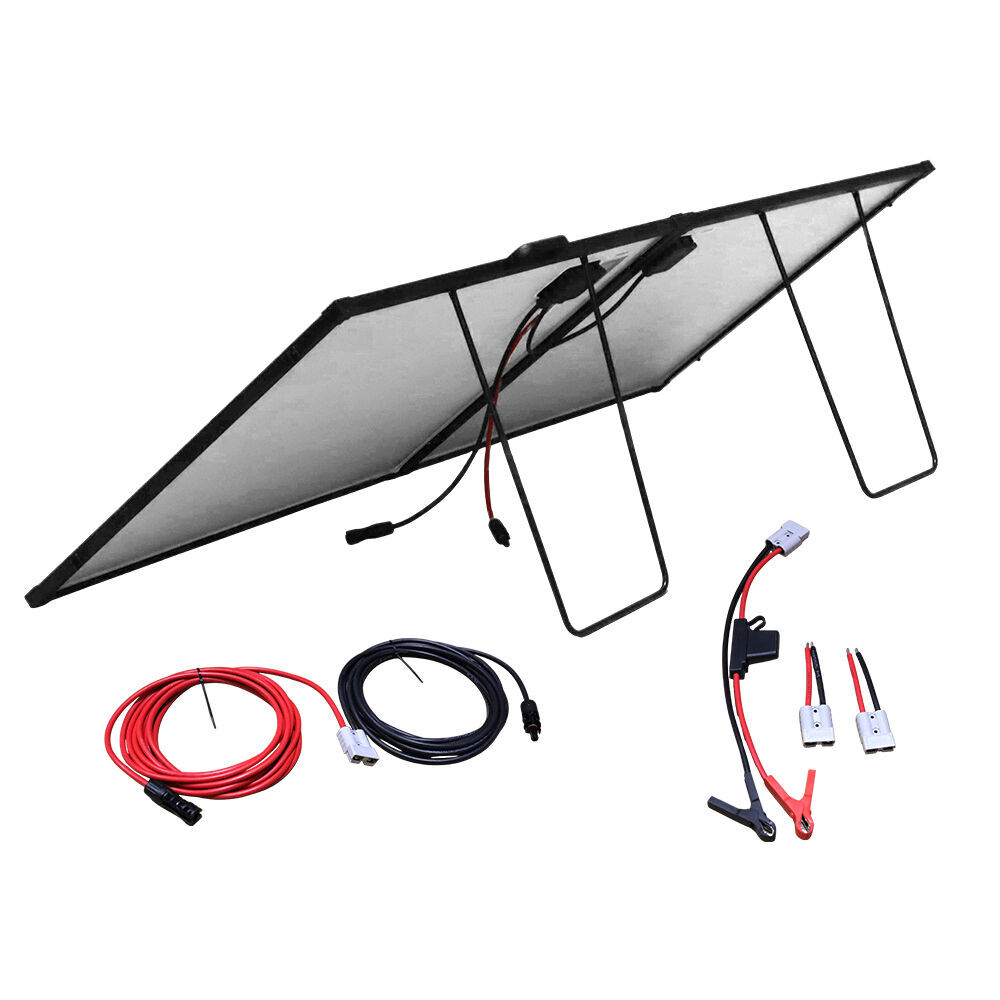

Also included is an array of premium quality cables to suit any situation:
- 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
- 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
- Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

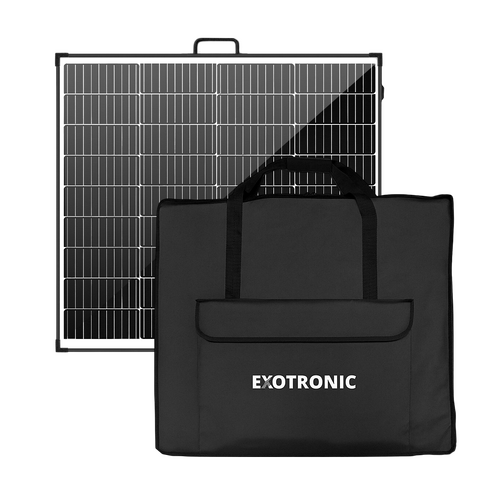

Protective Canvas Bag Included

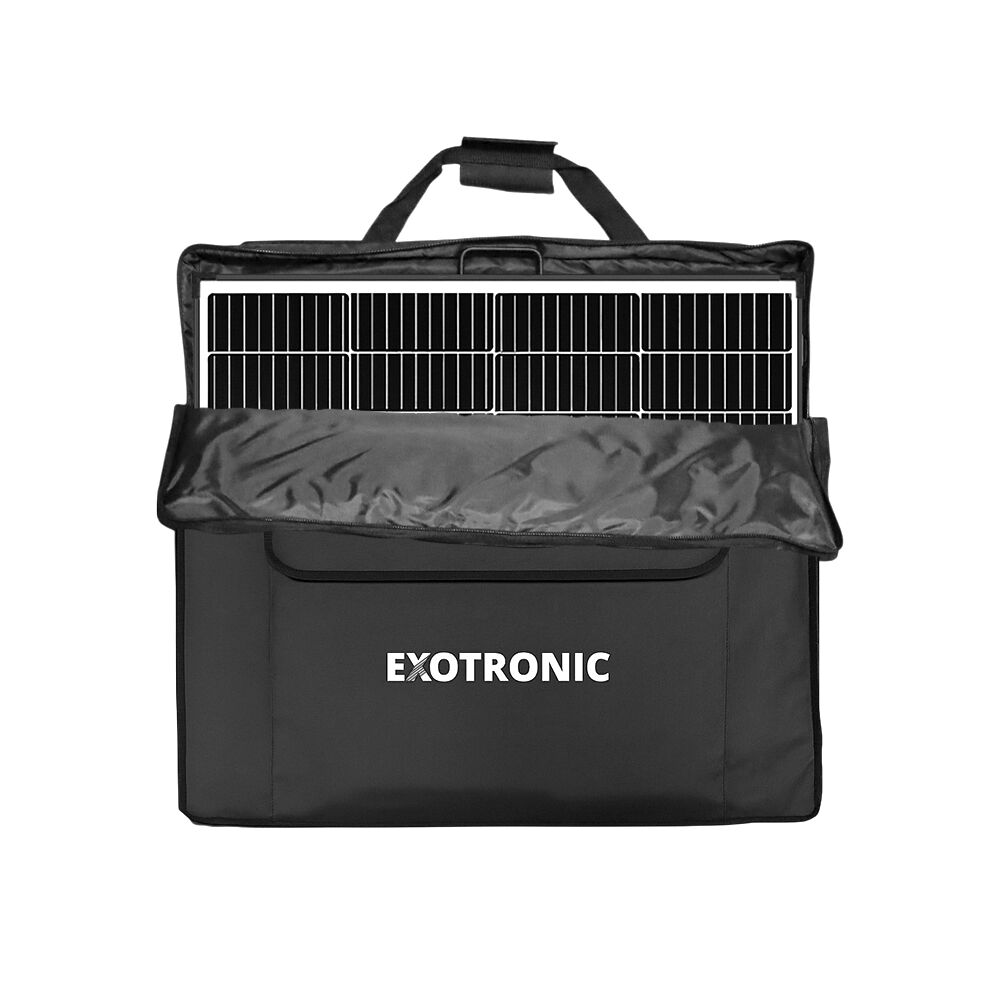

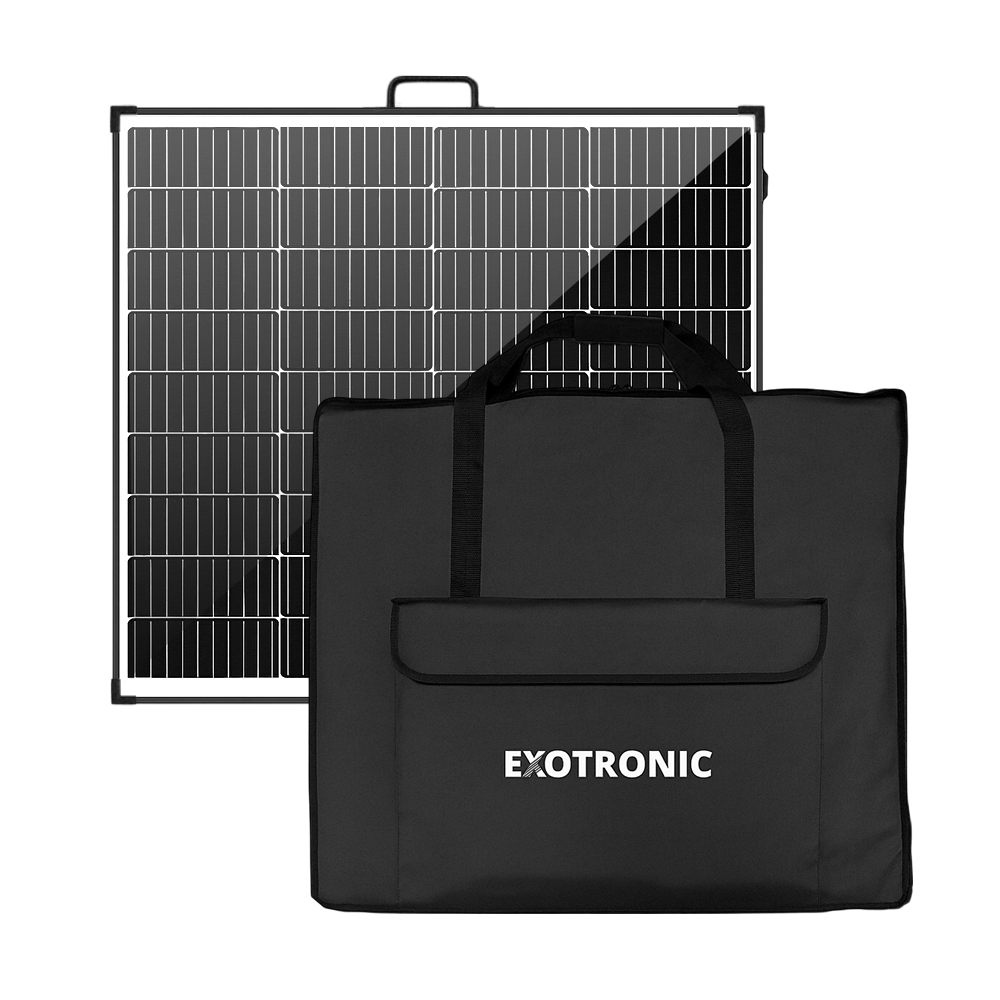

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.
High-Efficiency Solar Power
Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.
The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
Key Compatibility Information:
- For 12V Battery Systems: Achieve optimal charging efficiency when paired with an MPPT solar charge controller, ensuring a seamless and effective energy transfer.
- For 24V Battery Systems: This panel can also be used effectively with a PWM or MPPT solar charge controller to charge 24V batteries.
- It is crucial to be aware of the panel's Voc to ensure your charge controller can handle the voltage appropriately. Please verify that your charge controller's voltage limit is compatible with this panel's Voc to guarantee efficient and safe operation.
(Exo-FP-200-24V)
Need help choosing a solar panel? Click this link to check our solar panel selector table!Specifications
| Module Specifications | ||||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) Folded | Dimensions (mm) Unfolded | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-FP-200-24V | 200 | 2x 36 (4x9) | 775x675x40 | 775x1350x19 | 11.2 | 39.6 | 5.06 | 48.2 | 5.25 | 19.3 |
| Temperature Ratings | |
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Voc | 0.05%/C |
| Maximum Ratings | |
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
| Mechanical Characteristics | |
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Connectors | MC4 Compatible |
| SKU | Exo-FP-200-24V |
| MPN # | Exo-FP-200-24V |
Warranty Statement
Foldable Solar Panel
Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
Accessories (Cables/Connectors, Canvas Bag)
Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
