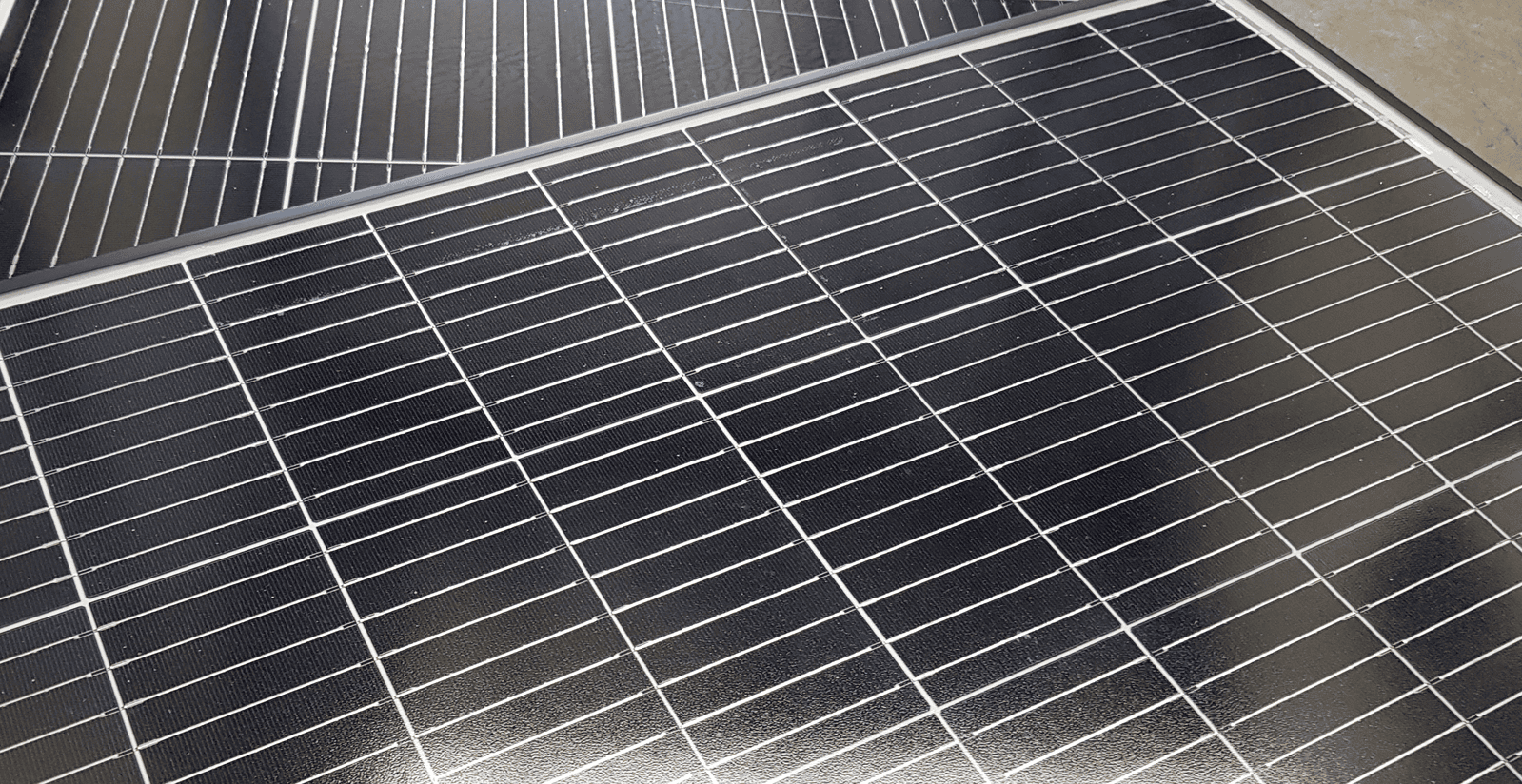

Exotronic 180W Fixed Solar Panel
You may also need:
Maximize Solar Efficiency with the Exotronic 180W G12 Mono-PERC Solar Panel
Leverage the power of advanced solar technology with G12 Mono-PERC solar panels, offering an efficiency rate of 23% and equipped with cut cells. Incorporating a modern 9+ wire bus-bar low-loss design, these panels deliver high efficiency and a positive power tolerance, demonstrating a competitive edge over traditional counterparts.
PERC Cells: Power and Efficiency Redefined
The inclusion of Passivated Emitter and Rear Cells (PERC) technology enhances the overall performance of these panels. In contrast to standard monocrystalline silicone designs, PERC cells exhibit improved low light performance by effectively utilizing the light that would otherwise pass through the cell, converting it back into electricity.
Optimized Power Output with 9+ Wire Busbar Design
The cutting-edge 9+wire busbar design is pivotal in enhancing the performance of our solar panels. It effectively mitigates the resistance of the module and evenly distributes current across the entire surface of the cells. This sophisticated design significantly minimizes power losses within the module and curtails uneven cell heating and hot spots.
Exotronic Range: Synchronized Voltages for Enhanced Compatibility
The Exotronic range of panels has been meticulously designed to harmonize voltages across all sizes, enabling all modules to be wired in parallel. This harmonization facilitates optimal compatibility and ease of installation.
Robust Construction Paired with Sophisticated Aesthetics
The panels feature a durable anodised aluminium frame, fortified by a black protective coating and a streamlined 25mm profile. This refined design reduces the module's weight without compromising its structural integrity, effectively protecting the module from vibrational and torsional stresses. The use of tempered, high transmissivity, low-iron glass ensures superior low light performance and high resistance to impact.
Engineered for Resilience under Adverse Conditions
- Resistance to salt mist and ammonia
- Wind load resistance - up to 2400 Pascal
- Snow load resistance - up to 5400 Pascal
Each solar panel is equipped with an 800mm lead from the junction box, inclusive of MC4 connectors, for effortless installation.
Ideal for High-Power Applications in Caravans, Boats, and Beyond
These panels are expertly designed to cater to high-energy needs, making them particularly well-suited for powering large caravan fridges. This ensures that your food and beverages remain cool and fresh, providing comfort and convenience wherever your travels take you. They are equally effective for boats outfitted with large inverters, offering sufficient power for a seamless and enjoyable on-water experience. Additionally, their adaptability makes them a perfect choice for stationary settings such as off-grid cabins or remote workshops, delivering consistent and reliable energy for a diverse range of requirements.
(Exo-SP-F3-180)
Need help choosing a solar panel? Click this link to check our solar panel selector table!Specifications
Electrical Characteristics |
|||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-SP-F3-180 | 180 | 36 (3x12) | 1320x670x25 | 8.90 | 20.40 | 8.83 | 24.30 | 9.49 | 19.2 |
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Connectors | MC4 Compatible (except 20W) |
Full Exotronic Solar Panel Range Specifications |
|||||||||
| Model | Power (W) | No. of Cells | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Module Efficiency (%) |
| Exo-SP-F4-225 | 225 | 72 ((2x18)x2) | 1570x700x25 | 11.2 | 20.52 | 10.96 | 24.15 | 12.18 | 20.5 |
| Exo-SP-F4-200 | 200 | 36 (4x9) | 1480X670X25 | 10.00 | 20.40 | 9.81 | 24.30 | 10.69 | 20.2 |
| Exo-SP-F3-180 | 180 | 36 (3x12) | 1320x670x25 | 8.90 | 20.40 | 8.83 | 24.30 | 9.49 | 19.2 |
| Exo-SP-F3-120 | 120 | 36 (3x12) | 900x670x25 | 6.30 | 19.6 | 6.13 | 23.2 | 6.89 | 19.9 |
| Exo-SP-F3-110 | 110 | 36 (3x12) | 1050x525x25 | 6.05 | 20.40 | 5.40 | 24.30 | 5.87 | 19.9 |
| Exo-SP-F4-75 | 75 | 36 (4x9) | 554x700x25 | 4.60 | 20.38 | 3.05 | 24.62 | 3.69 | 19.3 |
| Exo-SP-F2-70 | 70 | 36 (2x18) | 1070x360x25 | 4.60 | 19.4 | 3.61 | 23.8 | 3.77 | 18.2 |
| Exo-SP-F2-40 | 40 | 32 ((4x4)x2) | 606x356x25 | 2.55 | 18.10 | 2.21 | 21.60 | 2.40 | 18.5 |
| Exo-SP-F2-20 | 20 | 32 ((2x8)x2) | 406x356x25 | 1.75 | 18.10 | 1.11 | 21.60 | 1.21 | 13.8 |
| SKU | Exo-SP-F3-180 |
| MPN # | Exo-SP-F3-180 |
Warranty Statement
Exotronic warrants its solar panels to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications. The 60 months is extended to 120 months when used on a fixed installation. provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
