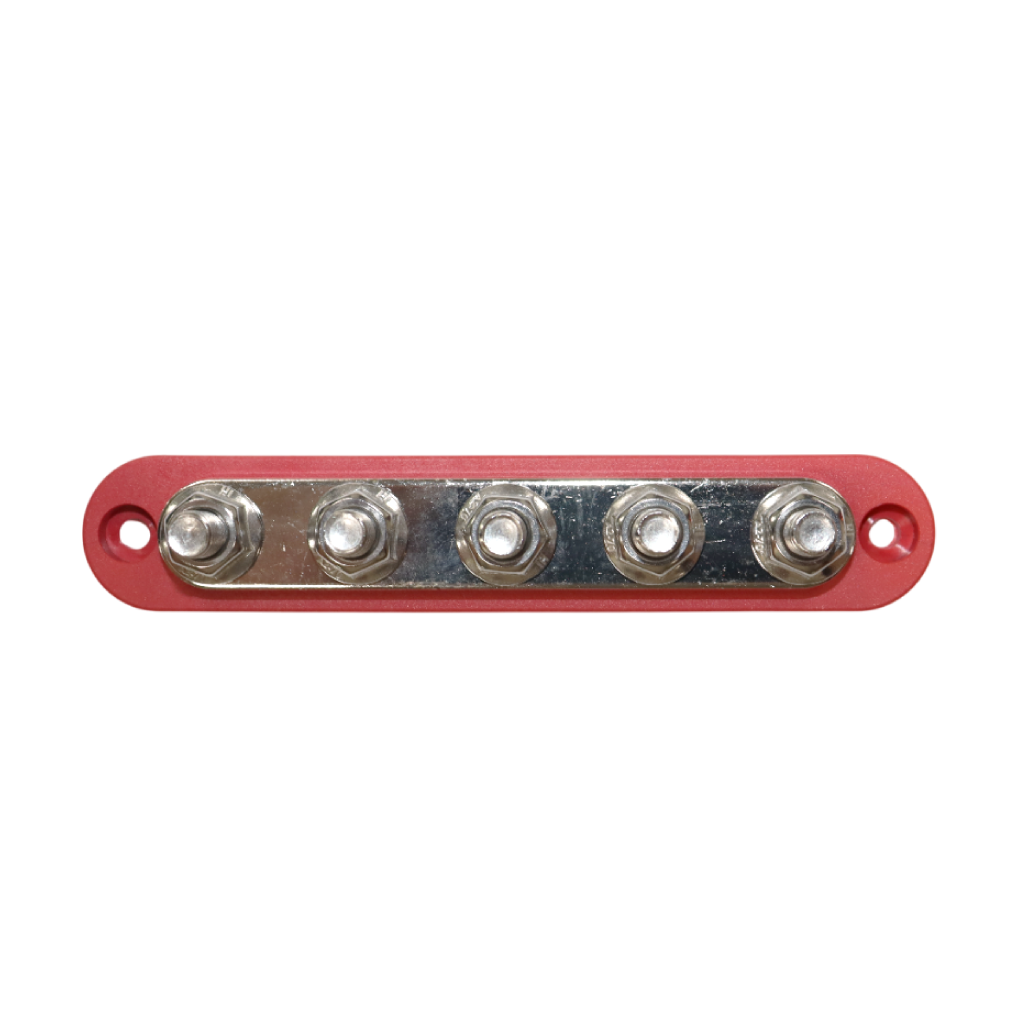

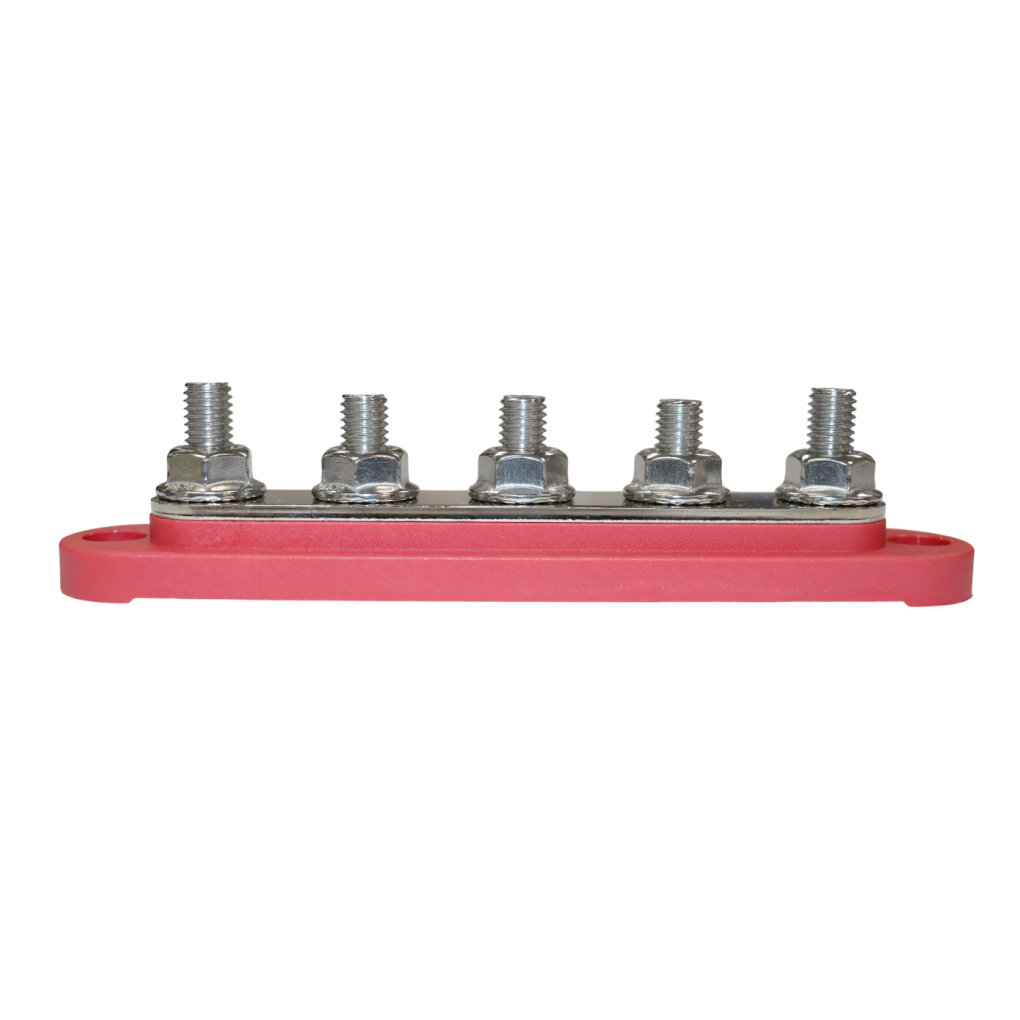

Exotronic 150A Red 5x M8 Stud Busbar with Cover
You may also need:
Exotronic Tinned Copper Marine Rated 150A Red 5-M8 Stud Busbar with Cover
Enhance the efficiency and safety of your 12V, 24V or 48V electrical systems with the Exotronic Busbar. This premium busbar is specifically designed for high-performance requirements, crafted from tinned copper to ensure excellent conductivity and outstanding corrosion resistance. It's an indispensable component for any robust and reliable power distribution system.
Enhanced Features for Optimal Performance:
- 5x M8 Stud Connection Points: Provides flexible and secure connections for both positive leads in intricate battery and solar power setups.
- 150A Continuous Current: Engineered to handle high current demands, making it suitable for diverse applications such as RVs, boats, and complex off-grid systems.
- Marine Rated Tinned Copper Construction: Delivers superior corrosion resistance and improved electrical conductivity, ideal for marine environments and other harsh conditions.

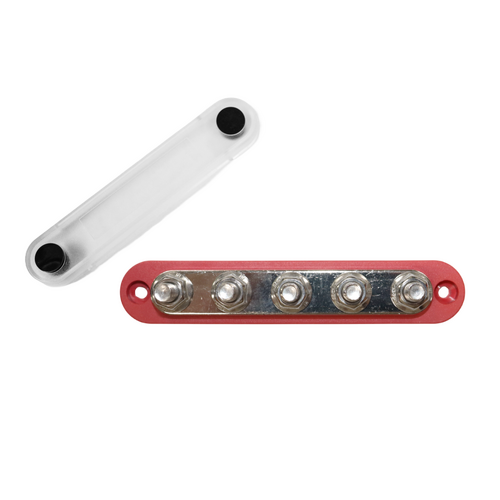

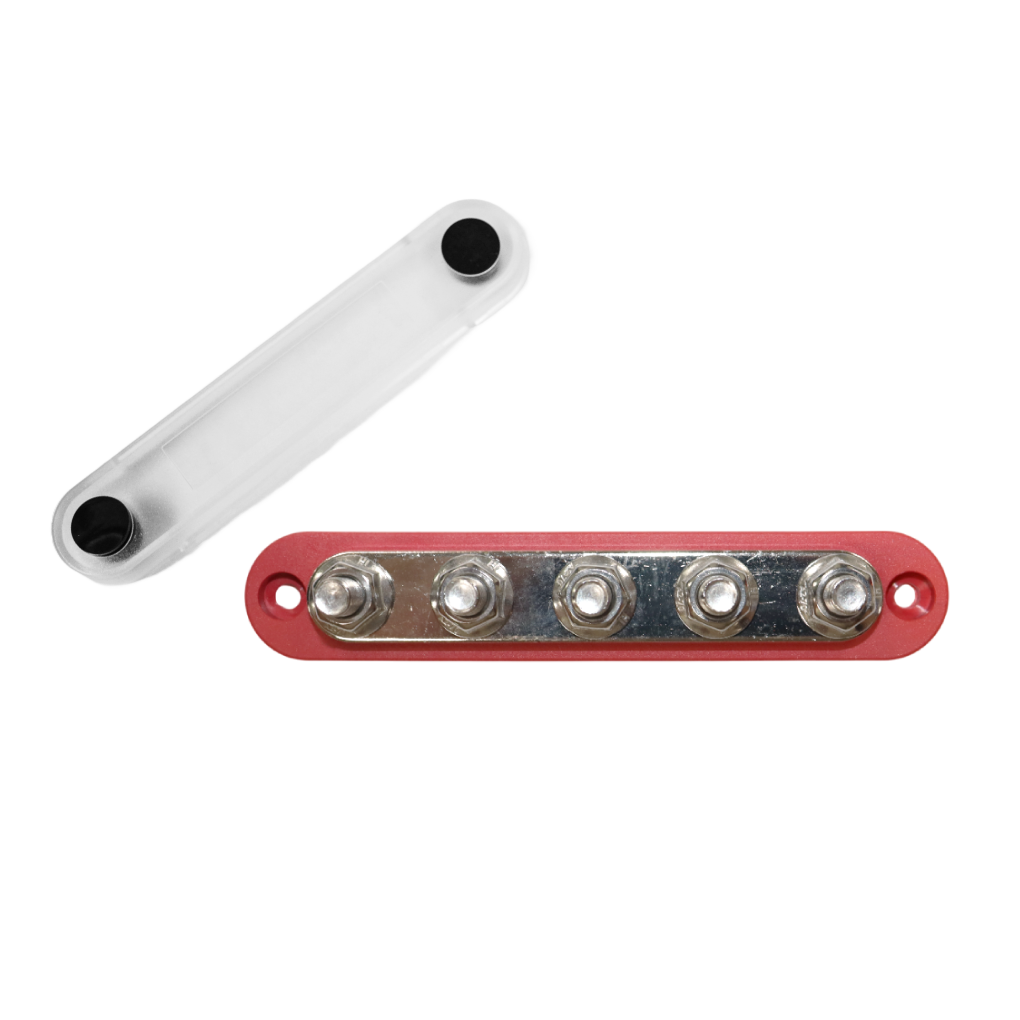

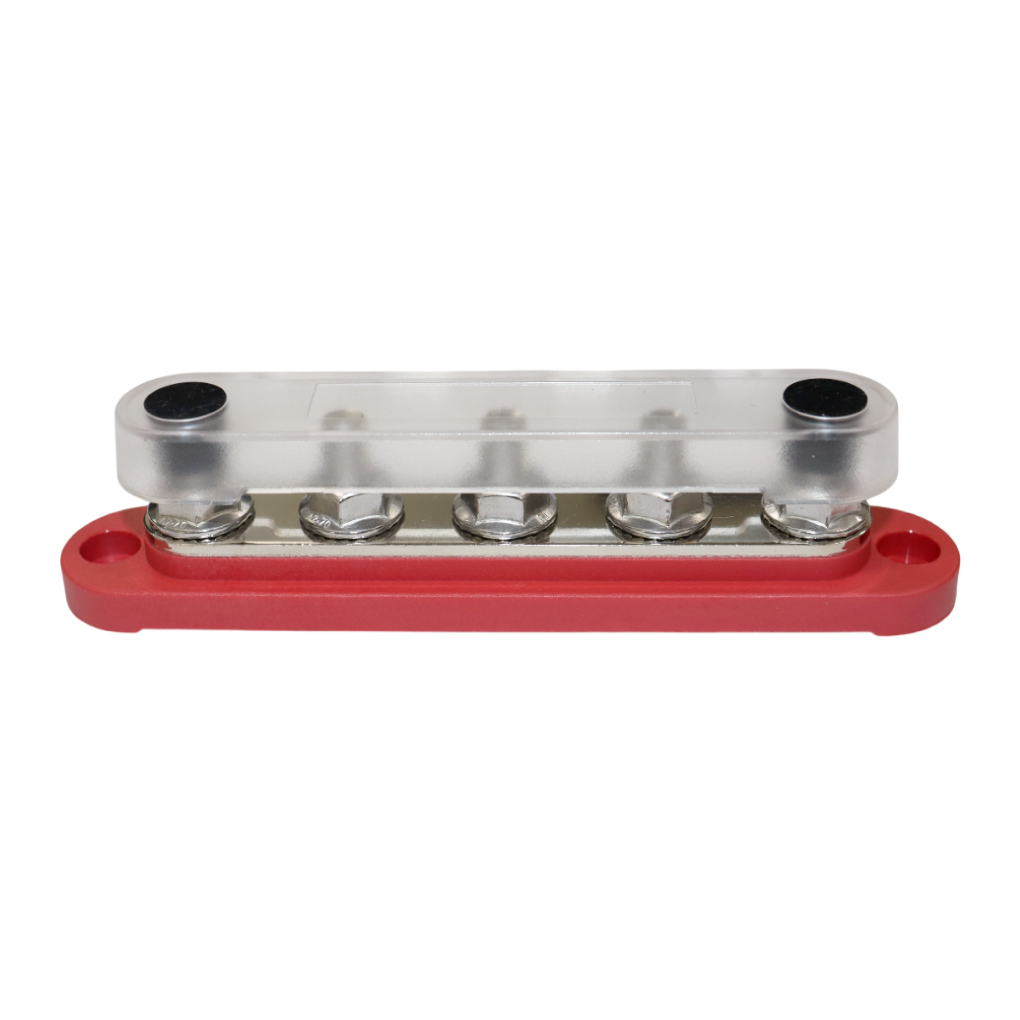

- Durable Protective Cover Included: Equipped with a robust cover to prevent accidental contact and protect against environmental elements, enhancing safety and longevity.
- 5-Year Warranty: Offers peace of mind with a commitment to long-term reliability and customer satisfaction.
Why Choose Exotronic’s Busbar?
Ideal for setting up a comprehensive battery busbar system, managing intricate positive busbar configurations in vehicles, or optimizing marine and renewable energy systems, the Exotronic busbar stands out in the market. Its robust design, coupled with high-quality, marine-rated materials, ensures it meets the demands of advanced electrical installations.
Your Reliable Solution for Advanced Power Distribution:
Opt for Exotronic’s busbar solutions to empower your power distribution needs and experience a remarkable difference in quality and performance. This busbar is perfectly suited for those who demand the highest standards in their electrical setups, ensuring durability and efficiency in any environment.
(Exo-BB-150-M8-5-Rd)

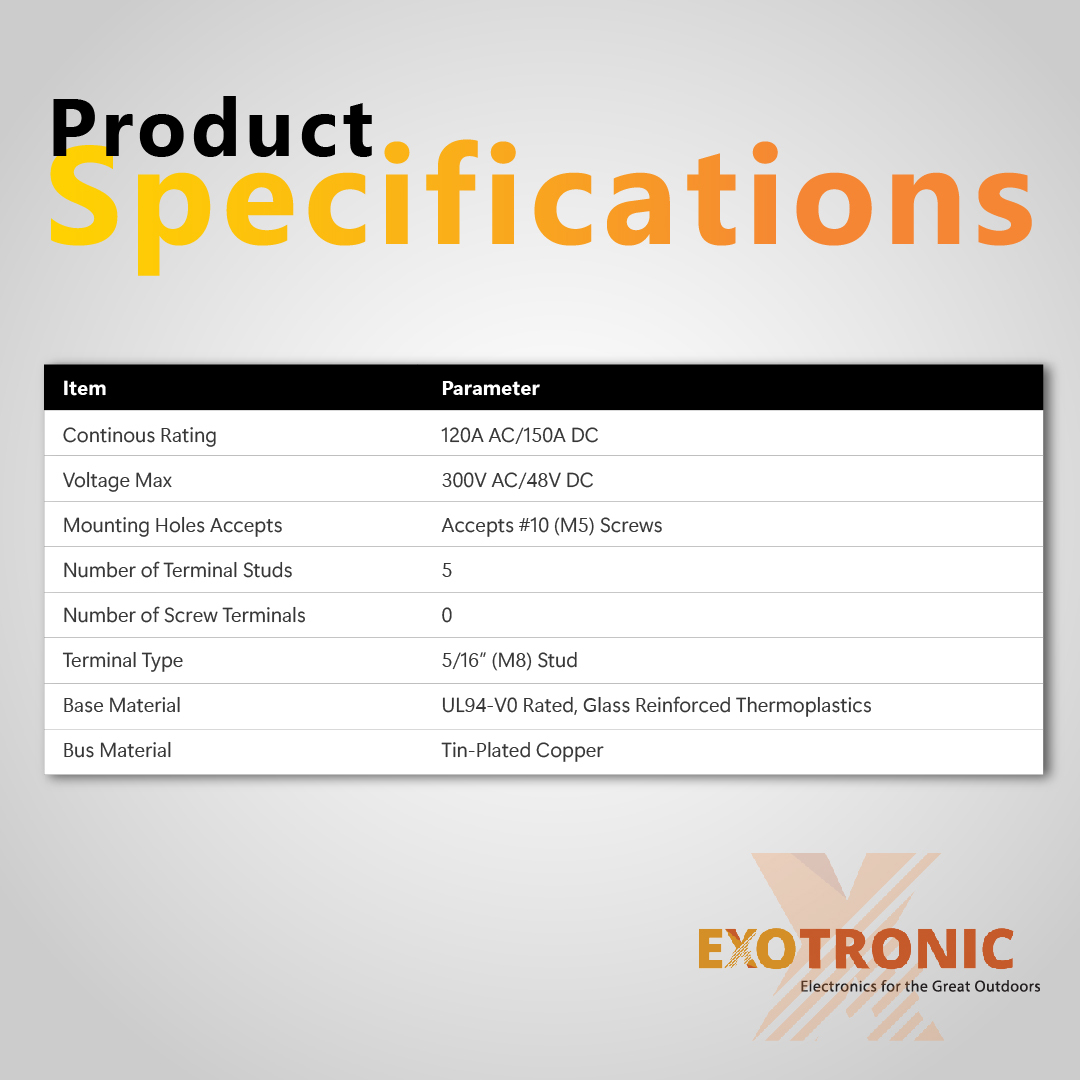

Product Specifications
| Item | Parameter |
|---|---|
| Continuous Rating | 120A AC/150A DC |
| Voltage Max | 300V AC/48V DC |
| Mounting Holes Accepts | Accepts #10 (M5) Screws |
| Number of Terminal Studs | 5 |
| Number of Screw Terminals | 0 |
| Terminal Type | 5/16" (M8) Stud |
| Base Material | UL94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper |
| SKU | Exo-BB-150-M8-5-Rd |
| MPN # | Exo-BB-150-M8-5-Rd |
Warranty Statement
Exotronic warrants its Busbars, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
