Enerdrive eSystem 60/40 AC/DC, TS-45, EPRO+ L920mm
PLEASE NOTE THESE INSTALL KITS ARE MADE TO ORDER SO WILL HAVE AT LEAST A 4-6 WEEK DELAY.
Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive also have you covered from a service and support angle with the DIY Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely. Suits all lead acid battery types and lithium batteries.

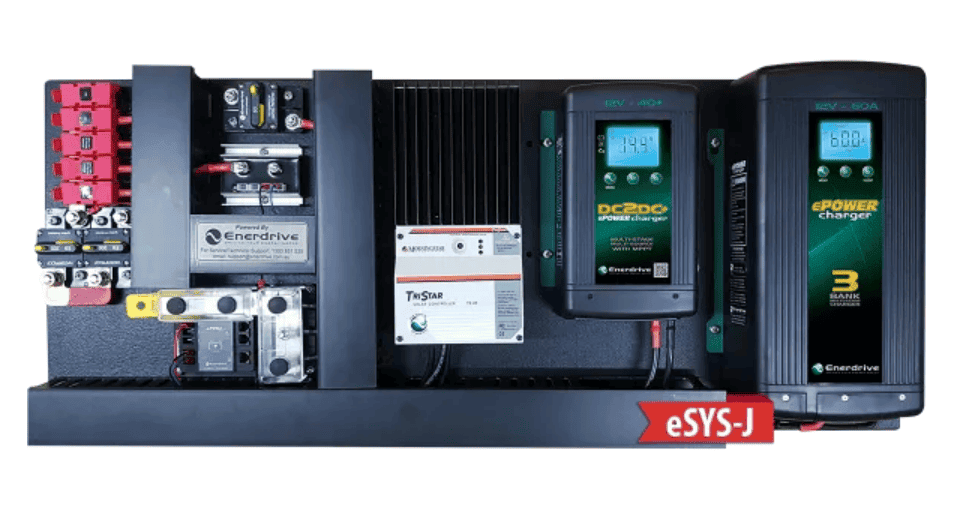

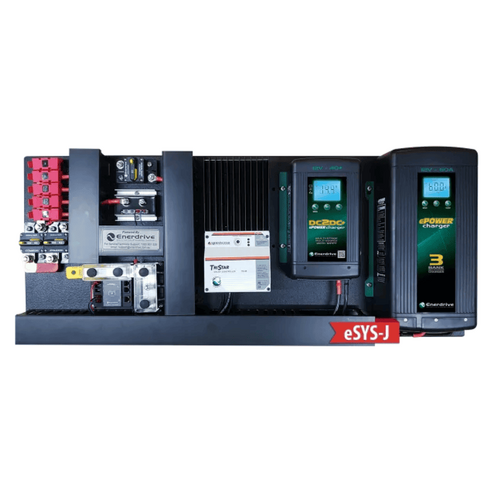

K-AGM-Board-J board includes:

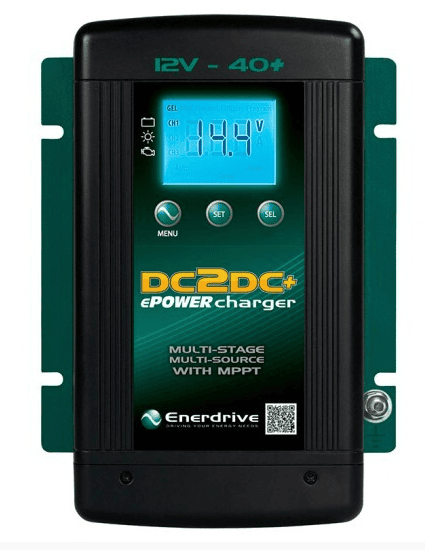

- Enerdrive ePOWER 12V 40A DC to DC battery charger

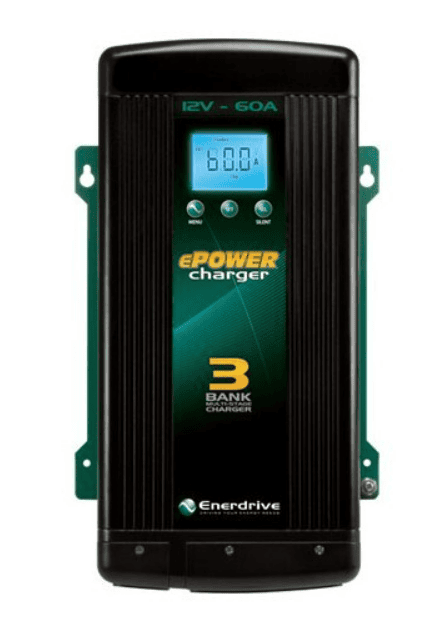

- Enerdrive ePOWER 12V 60A AC battery charger

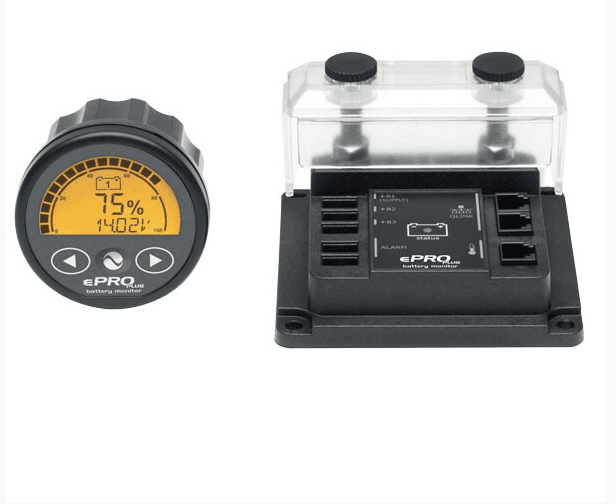

- Enerdrive ePRO PLUS battery monitor

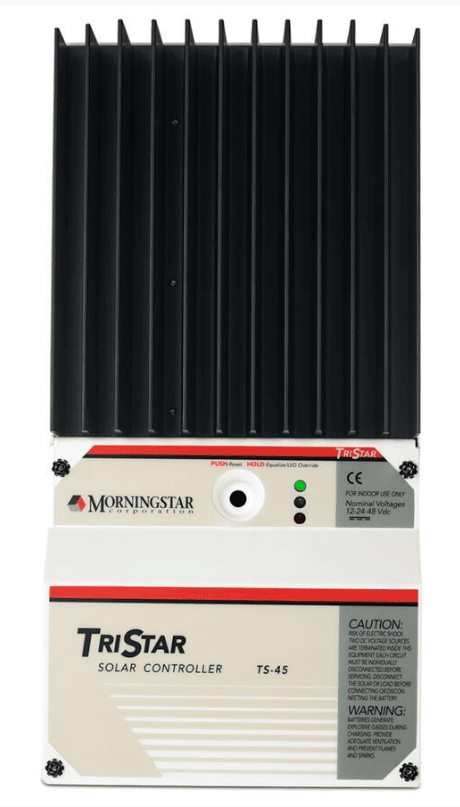

- Morningstar Tristar PWM-45A Solar Controller (TS-45)
- Enerdrive ePOWER 12/24V 40A low battery cutout IP66
- 3 Stud main negative busbar
- Main system circuit breaker 200A
- Inverter circuit breaker 200A
- Solar input positive circuit breaker 40A
- ePOWER DC2DC 60A output fuse connection
- ePOWER AC charger 70A output fuse connection
- 2x 30A load output fuse connections
- 12mm black plastic mounting board. Water & rot resistant
(ESYS-J)
SKU | ESYS-J |
MPN # | ESYS-J |
