Enerdrive eSystem 60/40 AC/DC, TS-45, EPRO+
PLEASE NOTE THESE INSTALL KITS ARE MADE TO ORDER SO WILL HAVE AT LEAST A 4-6 WEEK DELAY.
Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

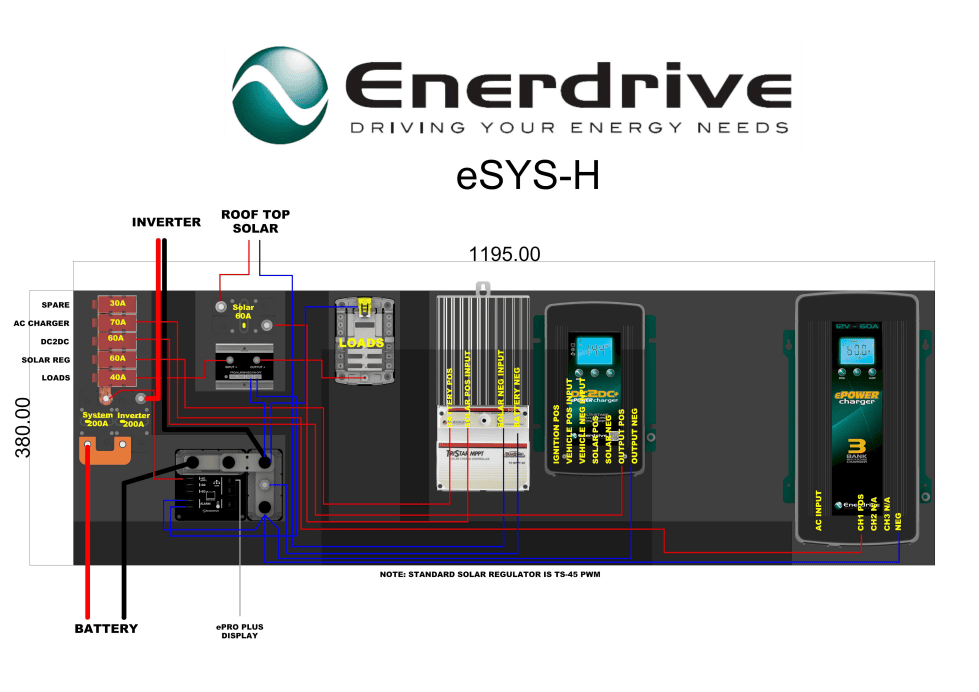

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
ENERDRIVE ESYSTEM-F 40A AC AND DC INSTALLATION KIT, WITH SIMARINE BATTERY MONITOR & 2000W RCD & AC TRANSFER SWITCH INVERTER
Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Includes:

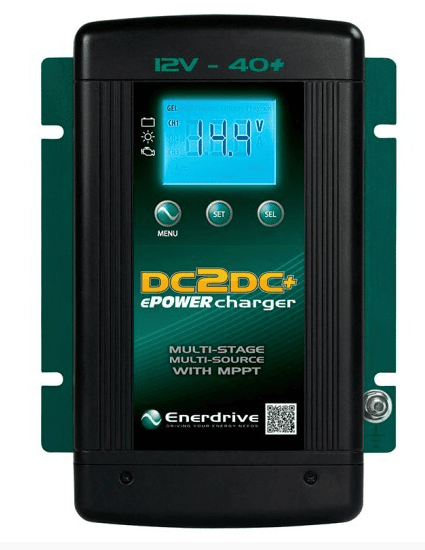

- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+

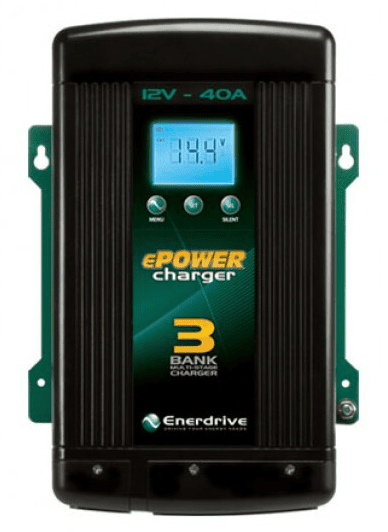

- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- Simarine Pico LCD WIFI Monitoring Screen
- Simarine SC301 300A Main Battery Shunt
- Simarine SCQ25T Individual Load/Charge Module
- 3 Stud Main Negative Bus Bar
- 40A Low Battery Cutout
- Main System Circuit Breaker 120A
- Inverter Circuit Breaker 200A
- Solar Input Positive Circuit Breaker 40A
- ePOWER DC2DC 60A Output Fuse Connection
- ePOWER AC Charger 50A Output Fuse Connection
- 2 x 30A Load Output Fuse Connections
- 24hr Critical Load 4 Circuit "Wedge" Fuse Block
- ePOWER 2000W AC Transfer Inverter
- Battery Restart Switch (Lithium Batteries)
- 12mm Black Plastic Mounting Board. Water & Rot Resistance
(ESYS-H)
SKU | ESYS-H |
MPN # | ESYS-H |
