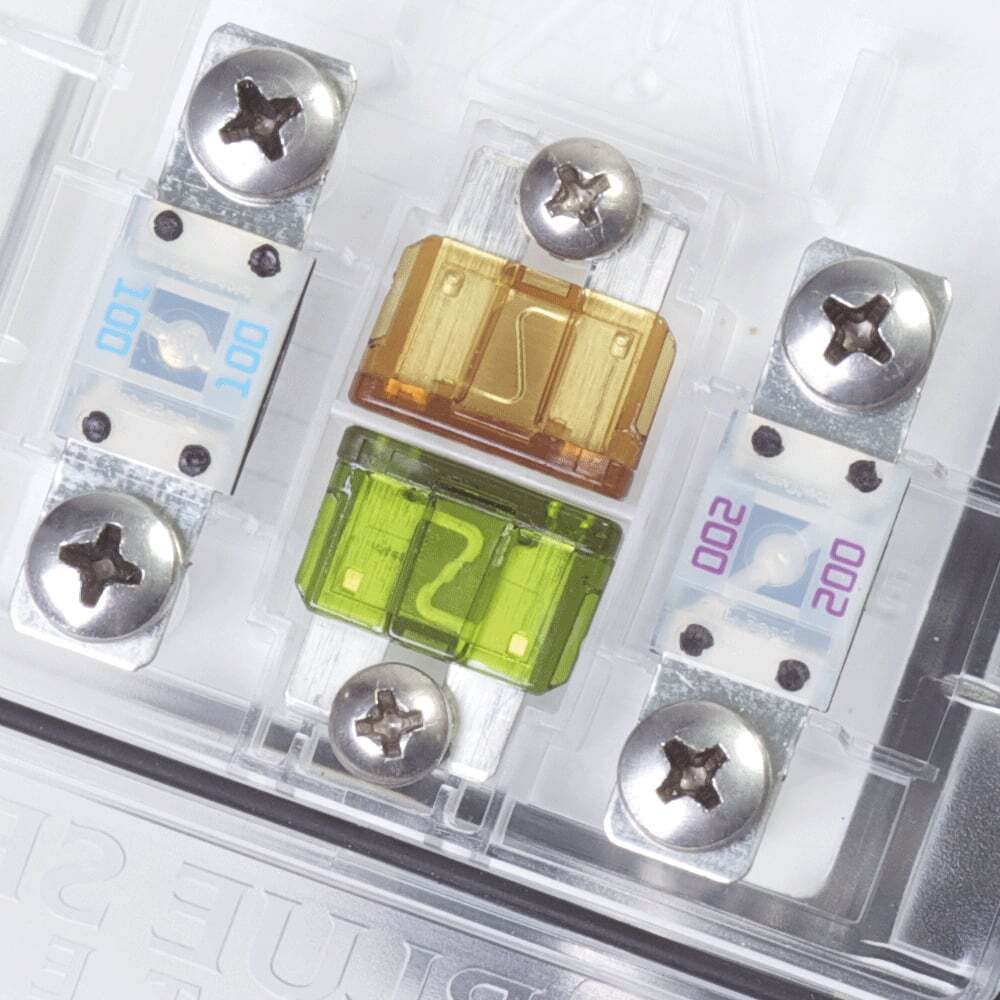

Blue Sea Safety Hub 150 Fuse Block w/-Neg Bar


RRP $281.60
$234.00
SAVE $47.60 (17%)
In Stock
Blue Sea logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Blue Sea Safety Hub 150 Fuse Block w/-Neg Bar, to the majority of areas. Check your shipping details on the cart page for more information.

Description

  • An ignition protected fuse block with screw termination safe for use on gasoline powered boats
  • Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
  • Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
  • Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
  • Negative bus provides common location for negative connection
  • Circuit identification label with write-on capability
  • Fuse puller easily removes ATO® or ATC® Fuses
  • Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately

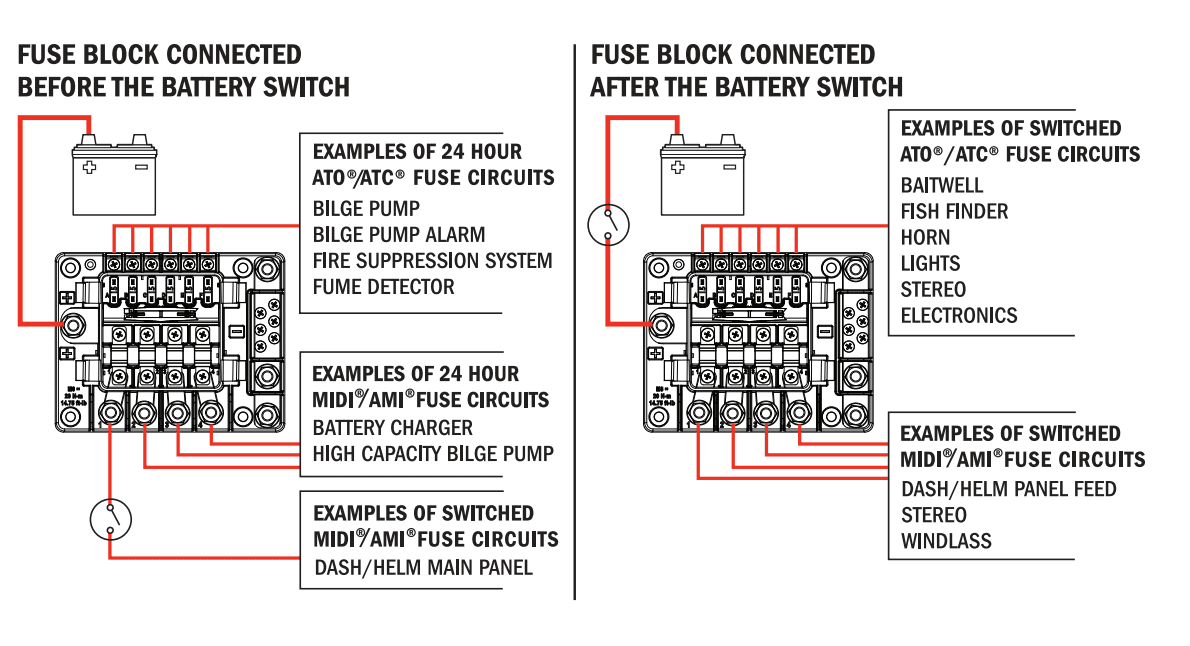

The SafetyHub 150 consolidates ignition protected, high amperage and 24 hour circuit protection into one place near the battery while also providing circuit protection for the 360 Panel feed wire. The 360 Panel provides circuit protection for all medium amperage loads and the ST Blade Fuse Block protects the electronics, as these devices are switched on the device. This example minimizes panel space and consolidates circuit protection to only three places on the boat and achieves a critical safety advantage by ensuring all high amperage cables are protected.




Manufacturer's Website


(BS-7748B)

Specifications
Circuits 10
Stud Size M8 x 1.25
Operating Voltage 12V
24V
32V
Amperage Maximum Operating - combined 200A
350A
600A
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.50lb (1.59 kg)
SKU BS-7748B
Barcode # 632085077488
MPN # BS-7748B
