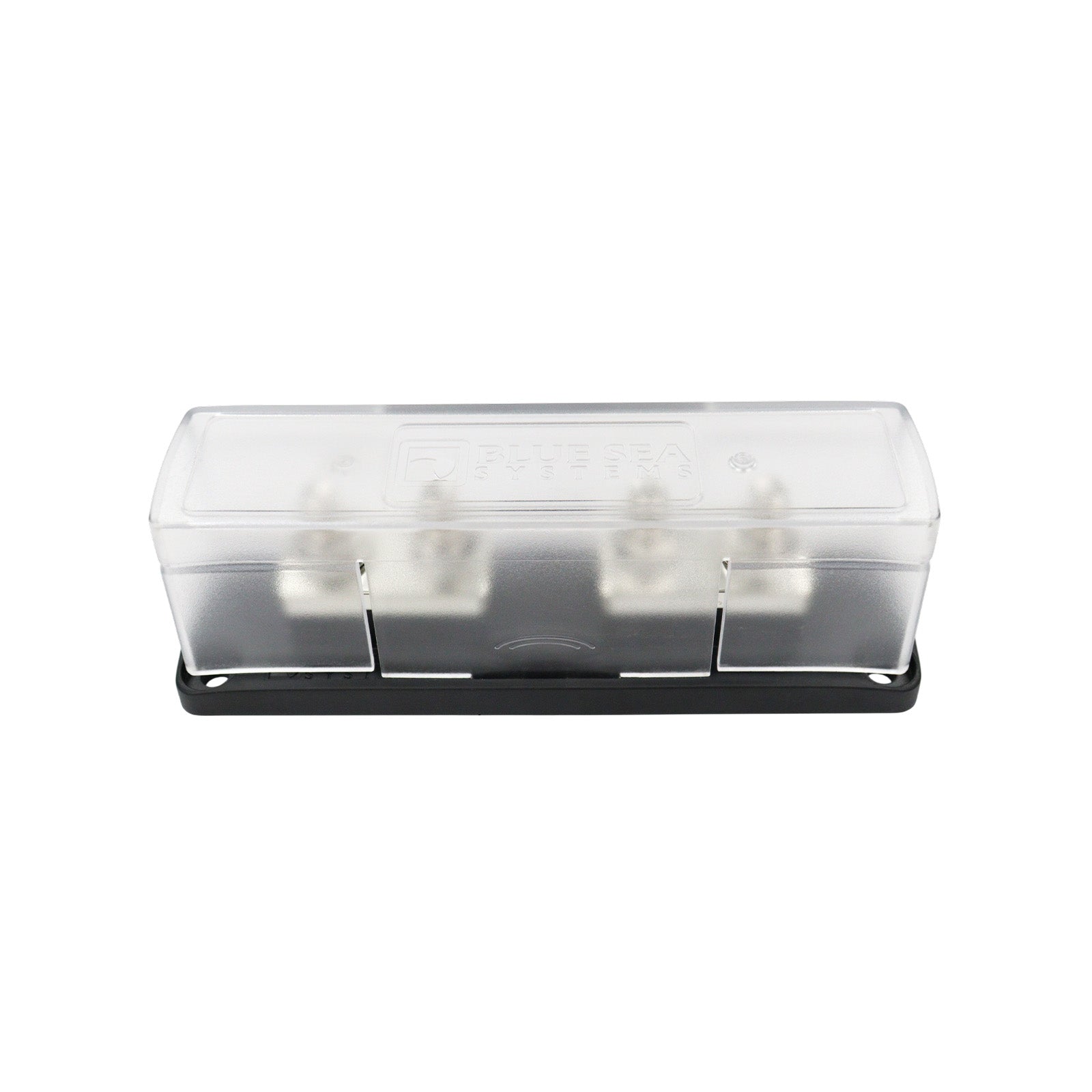

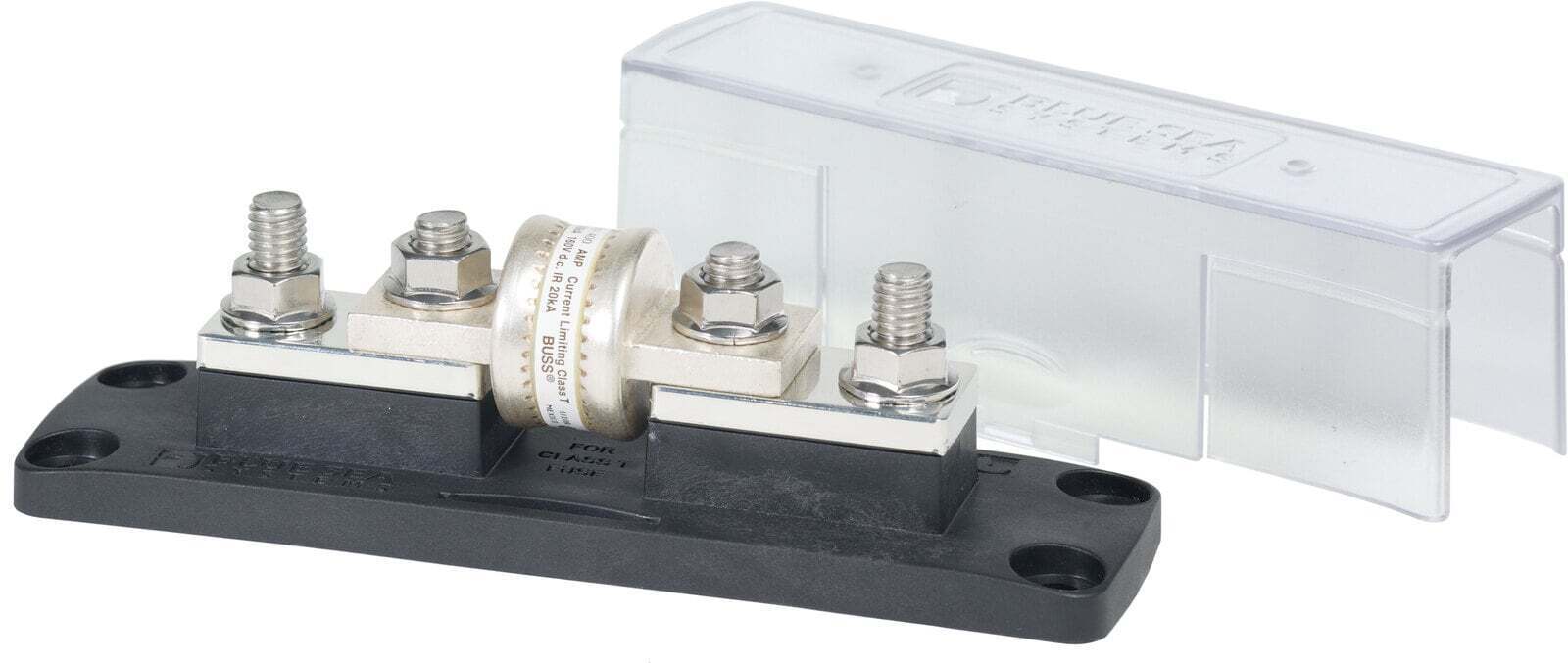

Blue Sea Fuse Block Holder Class T with Insulating Cover - 225 to 400A
High-Speed Response Fuse System
Experience superior safety with our highly recommended fuse system, preferred by numerous inverter manufacturers due to its high-speed response to short circuits. This system is an excellent choice to protect your equipment and maintain operational efficiency.
Clear Insulating Cover & Regulatory Compliance
This product features a clear insulating cover that not only enhances user safety but also satisfies ABYC/USCG requirements, showcasing our commitment to regulatory compliance and the safety of your electrical systems.
Wide Voltage Range
Suitable for use on systems with a voltage of up to 160 Volts DC, this fuse system caters to a broad range of electrical demands, ensuring versatility across different applications.

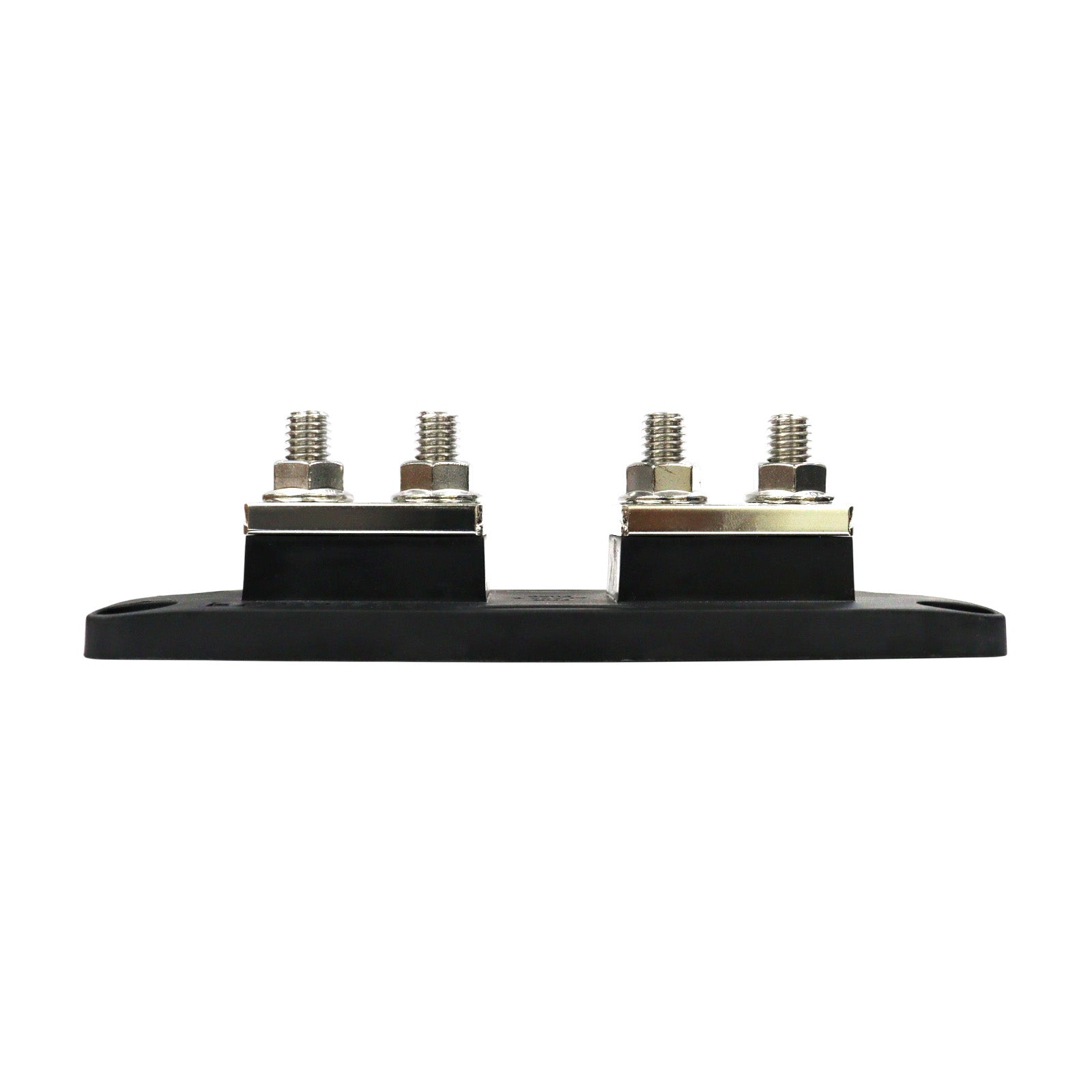

Large Stud Terminals
Designed with large 3/8"-16 stud terminals, it accommodates ring terminals for wire up to 4/0 AWG. This feature facilitates easy installation, securing your electrical connections and optimizing the performance of your system.
Heat Dissipating Mounting Blocks
Equipped with large, heat-dissipating tin-plated copper mounting blocks, this fuse system effectively manages thermal output to maintain the optimal working condition of your equipment.

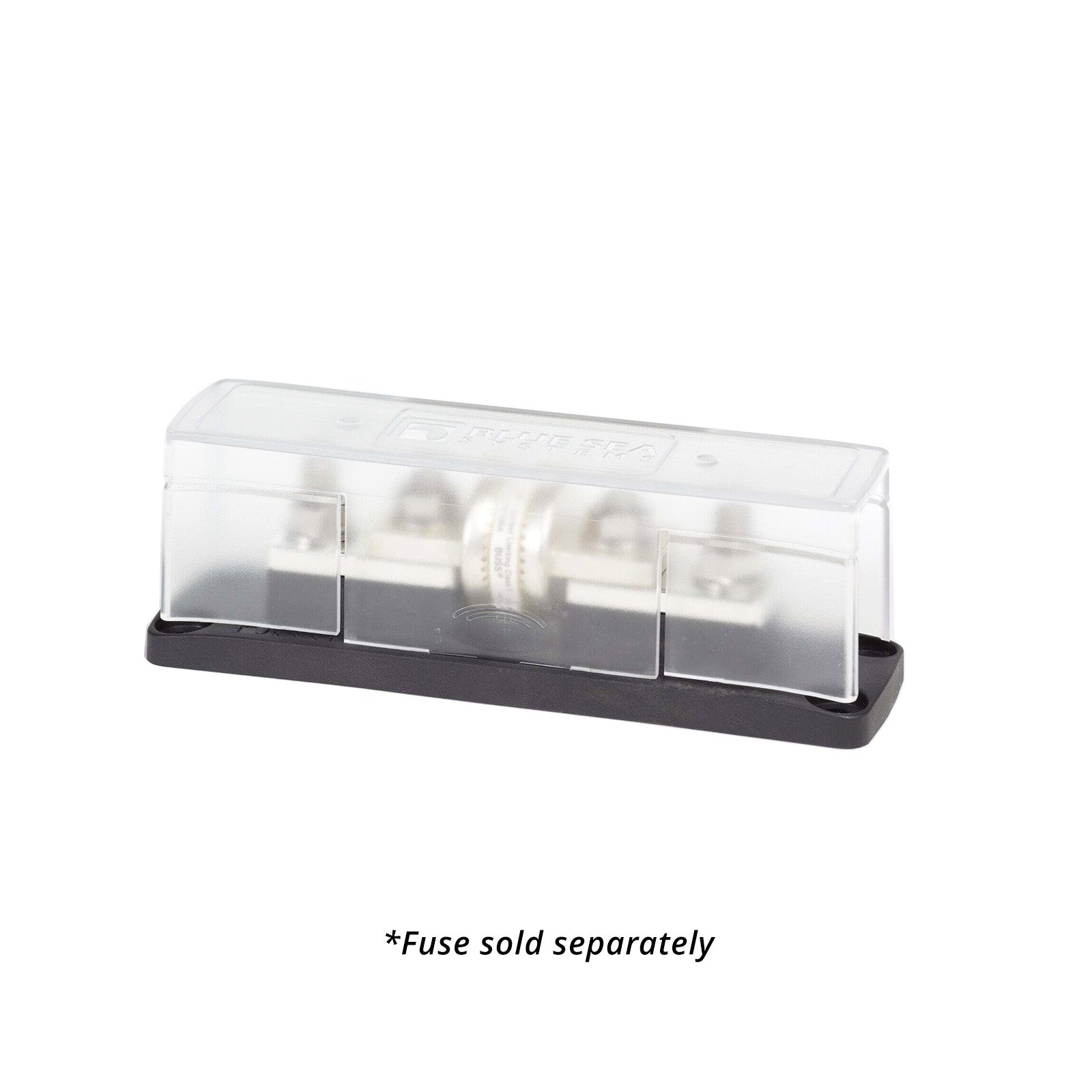

Please note that the fuse for this system is sold separately, allowing you to choose the best fuse to meet your specific requirements. Rely on our fuse system for high-quality, reliable, and efficient circuit protection.
Visit Blue Sea's Official Webpage for the Class T Fuses
(BS-5502B)
Specifications |
|
---|---|
Ignition Protected | No |
Maximum Amperage | 400A |
Maximum Voltage | 160V DC |
Fuse Mounting Blocks | Tin-Plated Copper |
Maximum Cable Size | 4/0 AWG |
Maximum Torque | 190 in-lb (21.47 Nm) |
Mounting Holes | Accept 1/4 (M6) Screw |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 1.10lb (0.5 kg) |
SKU | BS-5502B |
MPN # | BS-5502B |
12 Month Warranty
