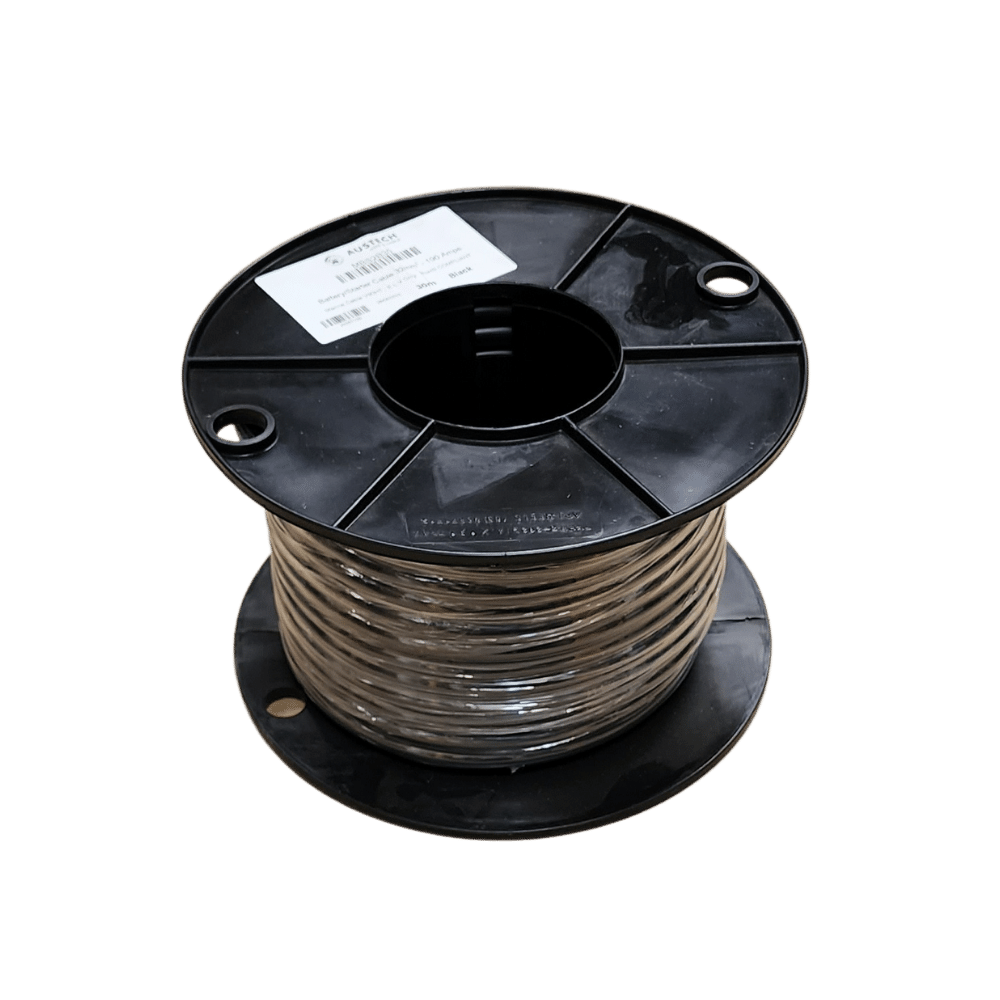

30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable
Maximize Performance with Premium Marine Battery and Starter Cables
Designed for the rigorous demands of marine environments, our 2B&S marine cables are the ideal choice for high-demand applications such as inverters, winches, starting systems, and battery connections on your boat. Crafted with corrosion-resistant materials, these cables are built to resist the challenges of saltwater, moisture, and extreme weather, ensuring lasting durability and safety.
Our 2B&S cables are not only robust but also flexible, facilitating easy installation and reliable electrical connections even in the most demanding marine conditions. The flame-retardant and oil-resistant design of these cables provides an added layer of safety, critical in the close quarters of marine settings.
Invest in our marine cables for unparalleled performance and peace of mind in all your sea adventures.
Why Choose Our Marine Cables?
Unmatched Quality: Made with high-conductivity, oxygen-free tinned copper, our marine cables ensure exceptional electrical flow, resisting corrosion even in saltwater environments, with insulation rated up to 90°C.
Versatile Use: Ideal for powering yachts, sailboats, or marine lighting systems, our cables provide the strength and versatility needed for diverse marine applications.
Safety First: Compliant with marine safety standards, these cables ensure reliability and peace of mind in every nautical venture.
Tailored for Marine Excellence: Designed to meet the rigorous demands of marine duty cycles, our cables deliver dependable power in the most challenging sea conditions.
Simple Selection, Powerful Results
Our range includes various gauges, perfect for different electrical needs in marine settings. Each option is clearly presented, helping you make the best choice for your specific maritime project.
Remember, while our cables are ideal for marine and coastal environments, professional installation is recommended for optimal results.
Invest in Marine Reliability
Choosing our cables means investing in the efficiency and longevity of your marine electrical systems. Enhance your maritime experience with our premium marine cables, ensuring your vessel and marine spaces are equipped with the best in the market.
Visit Austech Cables Official Website for More Details
(MBS2B30-30)
Specifications
- Single core Insulation V90HT to AS/NZS 3191

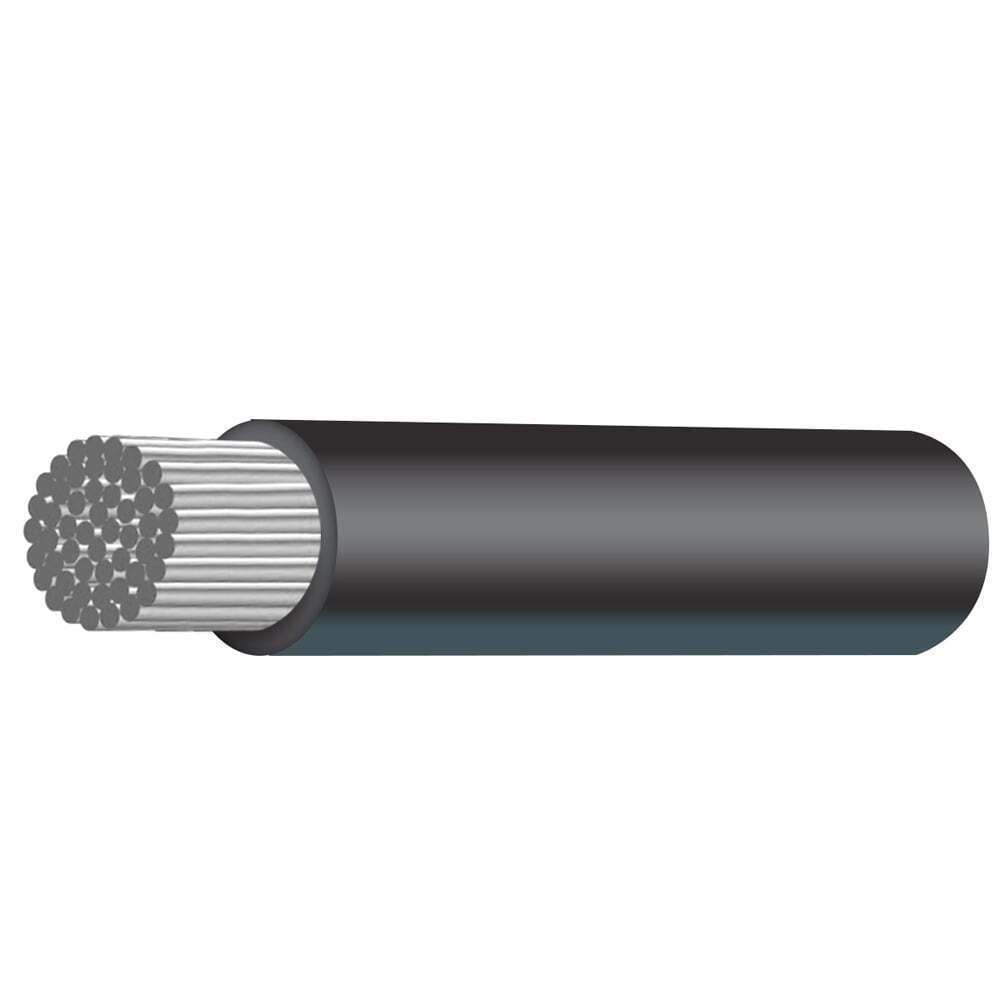

- Conductor: Tinned Copper Conductor to AS/NZS 1125
- Insulation: V90HT to AS/NZS 3191
- Colour: Black
- Amp rating based on 100% duty cycle
- Amp ratings based on JASO D609:2001 single core at ambient temperature of 30C
- Not suitable for mains connection
- Voltage Rating AC 50V / DC 120V to AS/NZS 3000:2000
| Code | Industry Equivalent (B&S) | Number of Strands x Area (mm²) | Amp Rating at 30°C | Average Max D.C. Resistance at 20°C (Ω/m) | Nominal Insulation Thickness (mm) | Nominal O.D. (mm) | Nominal Mass (Kg/100mt) |
|---|---|---|---|---|---|---|---|
| MBS2 | 2 | 455/0.30 32.15 | 190 | 1.7 | 0.58 | 10.7 | 35.7 |
Features:
- OFHC (oxygen free high conductivity copper) is employed in audio and industrial electronic units.
- High electric and thermal conductivity. Since OFHC contains oxygen and impurities in very small quantities only, it shows excellent electric conductivity and thermal conductivity (Oxygen and impurities reduce the conductivity)
- Excellent hydrogen enbrittlement resistance (TPC) Tough pitch copper becomes very brittle when it is heated at higher then 600C under a reduction gas atmosphere including hydrogen gas. Since OFHC contains a very low oxygen content only, it does not show any brittleness
Please Note! Austech Wire & Cable Pty. Ldt. takes every precaution to ensure that the information in this publication is correct but accepts no liability of any kind and reserves the right to change any detail in this catalogue without notification. Austech Wire & Cable
| SKU | Ty-MBS145503-BK-100 |
| MPN # | MBS2B30-30 |
